Exhaust Temperature Sensor: Diagrams




Component Connector End Views

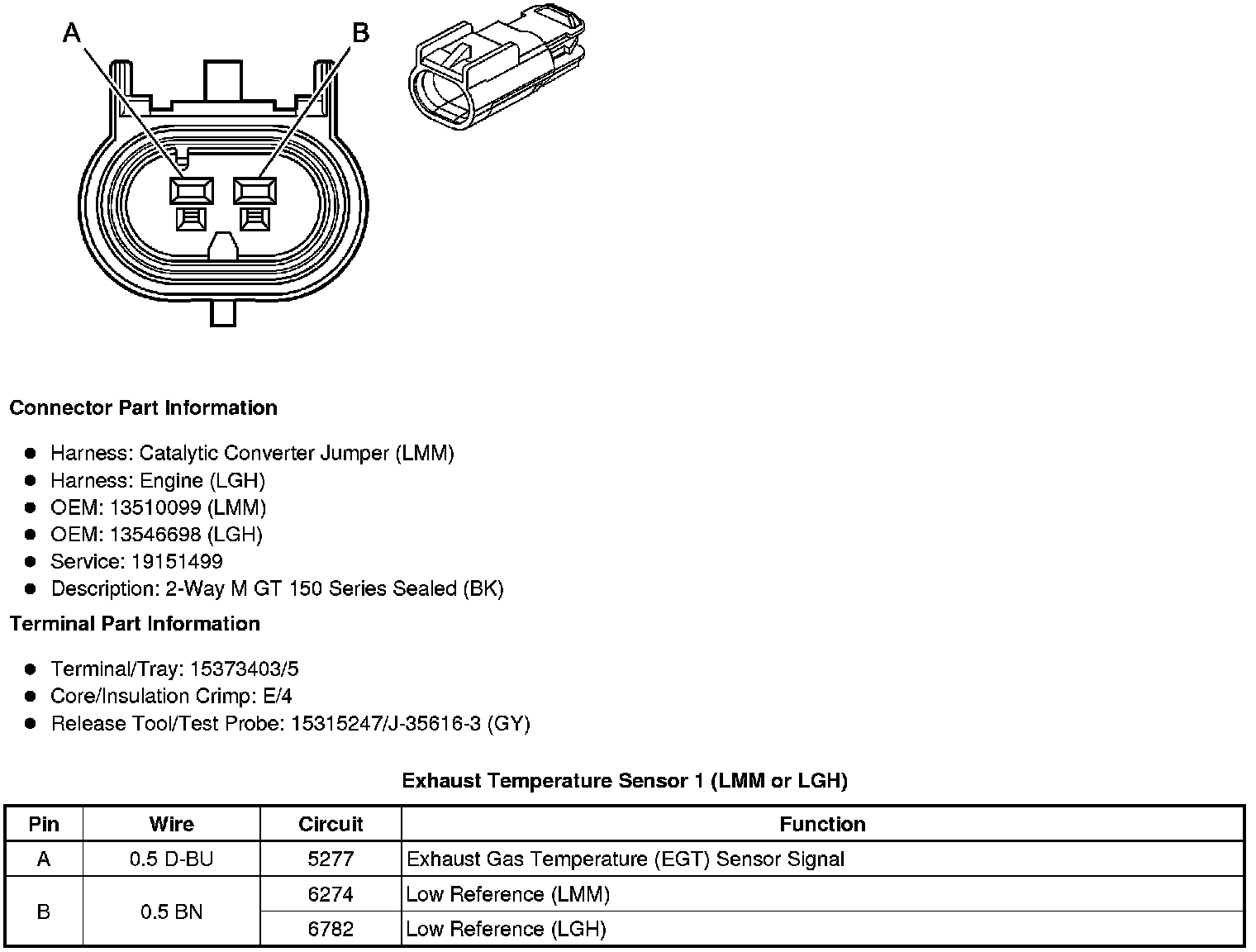

Exhaust Temperature Sensor 1 (LMM or LGH)

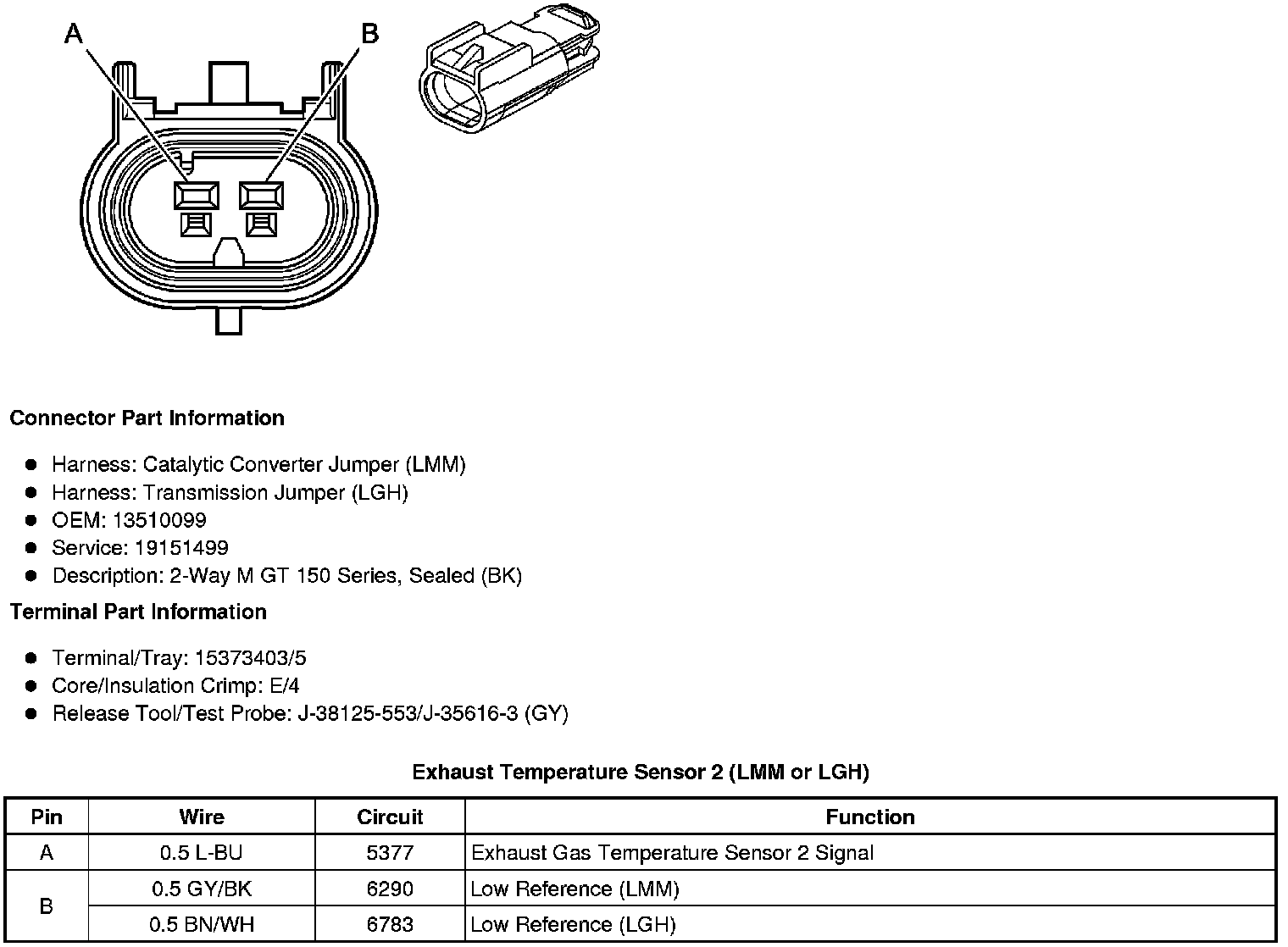

Exhaust Temperature Sensor 2 (LMM or LGH)

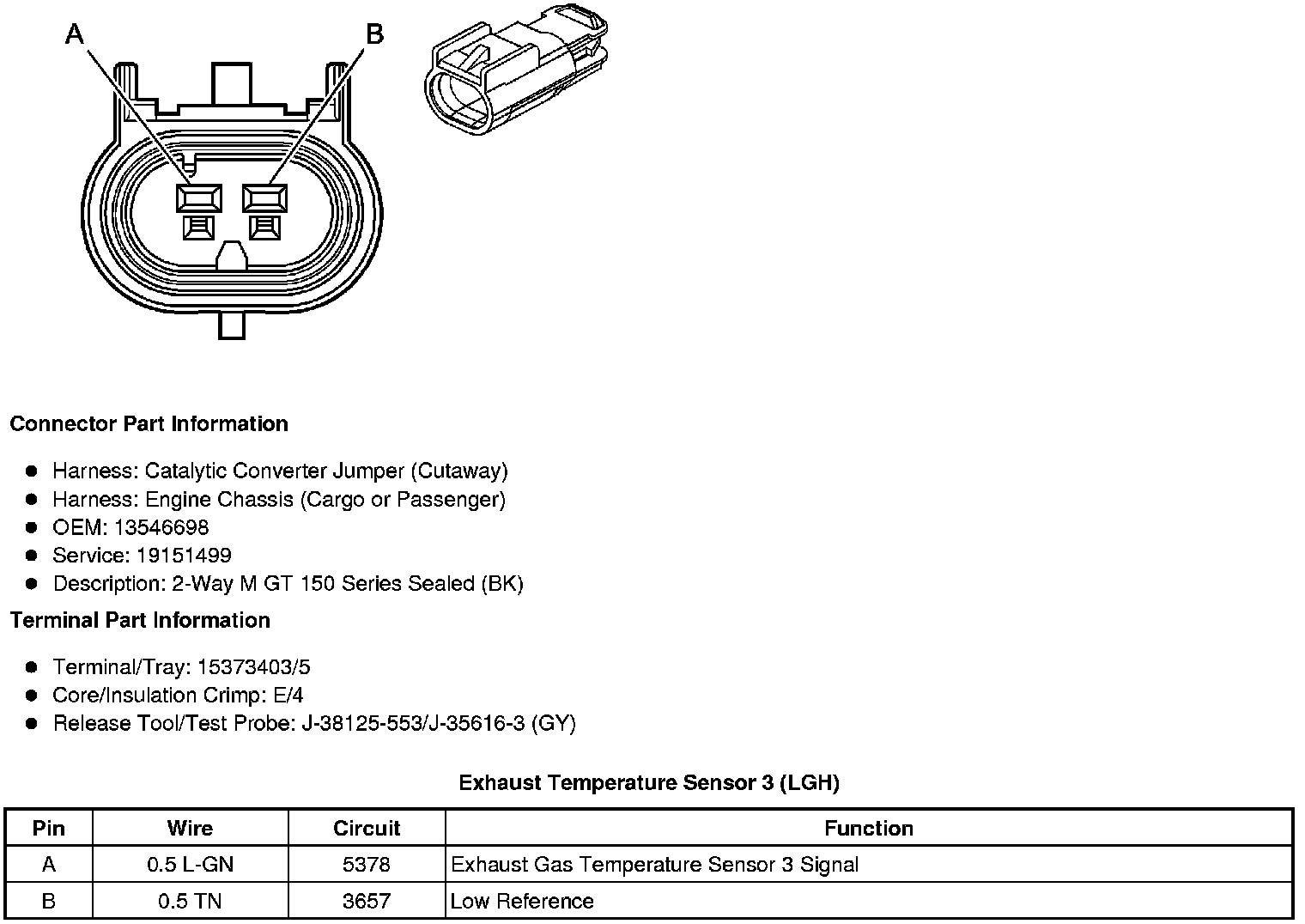

Exhaust Temperature Sensor 3 (LGH)

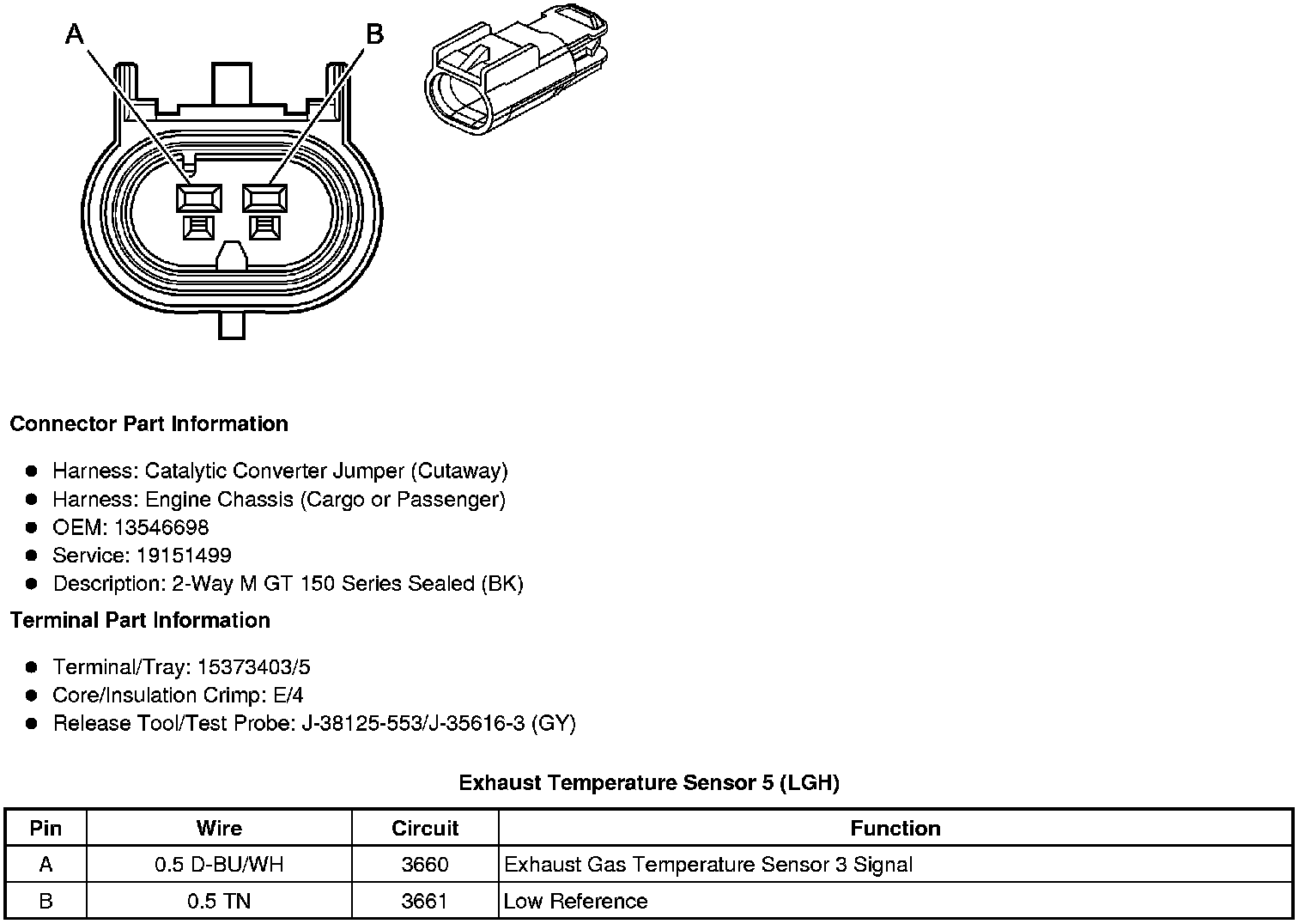

Exhaust Temperature Sensor 5 (LGH)
