Intake Manifold

Intake manifold left and right

Left:

Right:

Intake manifold bolts and nuts 25 Nm (18 lb ft)

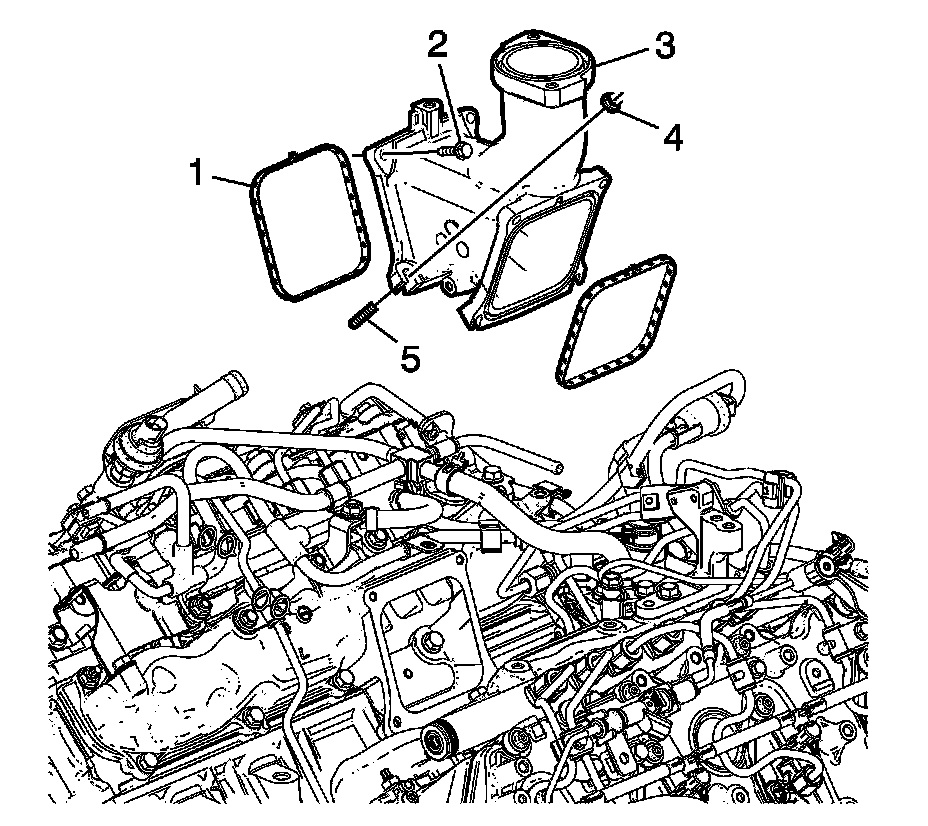

Center intake





The intake manifold nuts must be tightened first

Intake manifold studs (5) 6 Nm (53 lb in)
Intake manifold nuts (4) 10 Nm (89 lb in)
Intake manifold bolts (2) 10 Nm (89 lb in)
