Wheels/Vehicle Underbody Component Views

Wheels/Vehicle Underbody Component Views

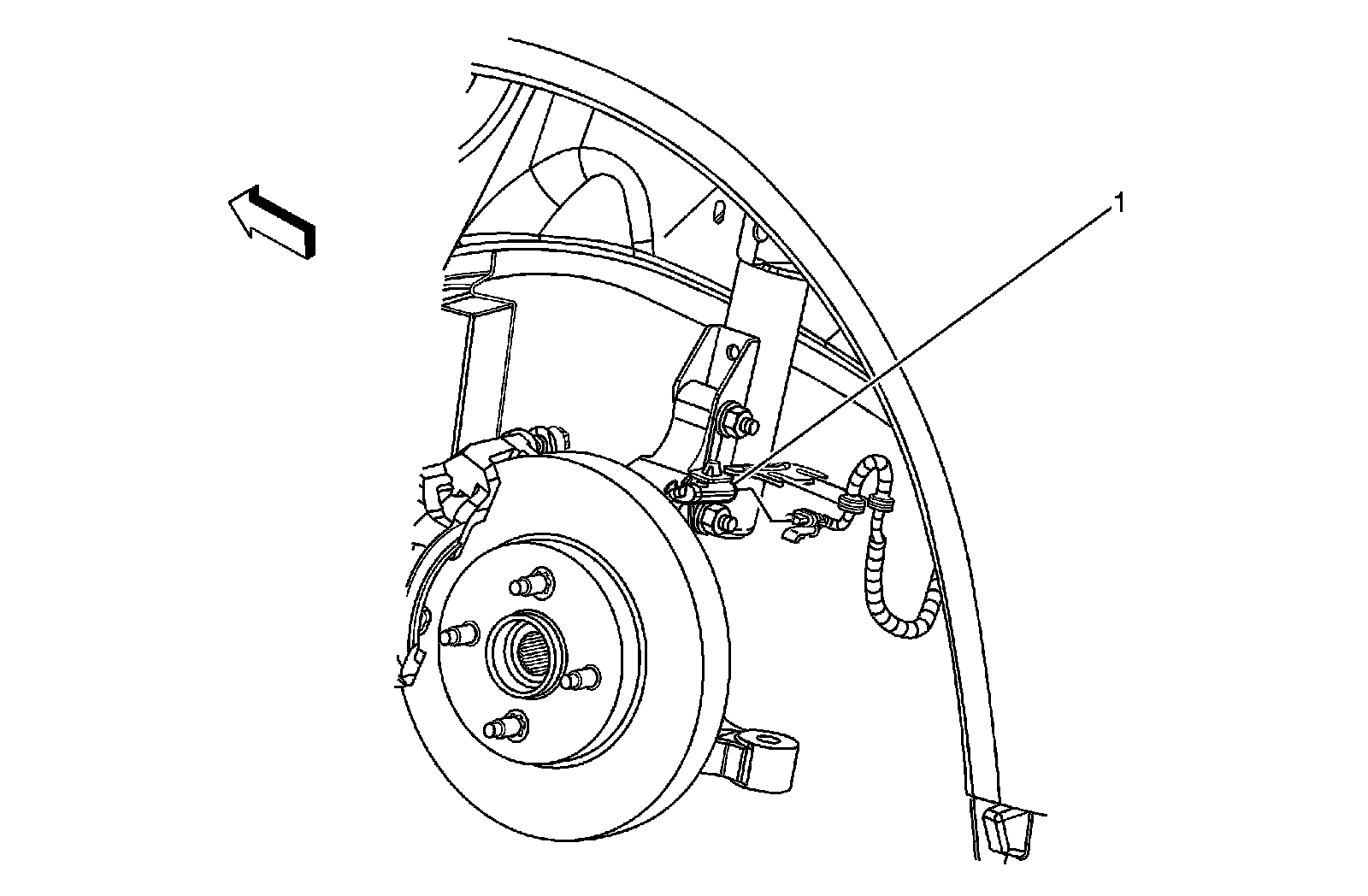

Front Left Side of the Vehicle (ABS)




1 - Wheel Speed Sensor (WSS) - Left Front, Right Front Similar

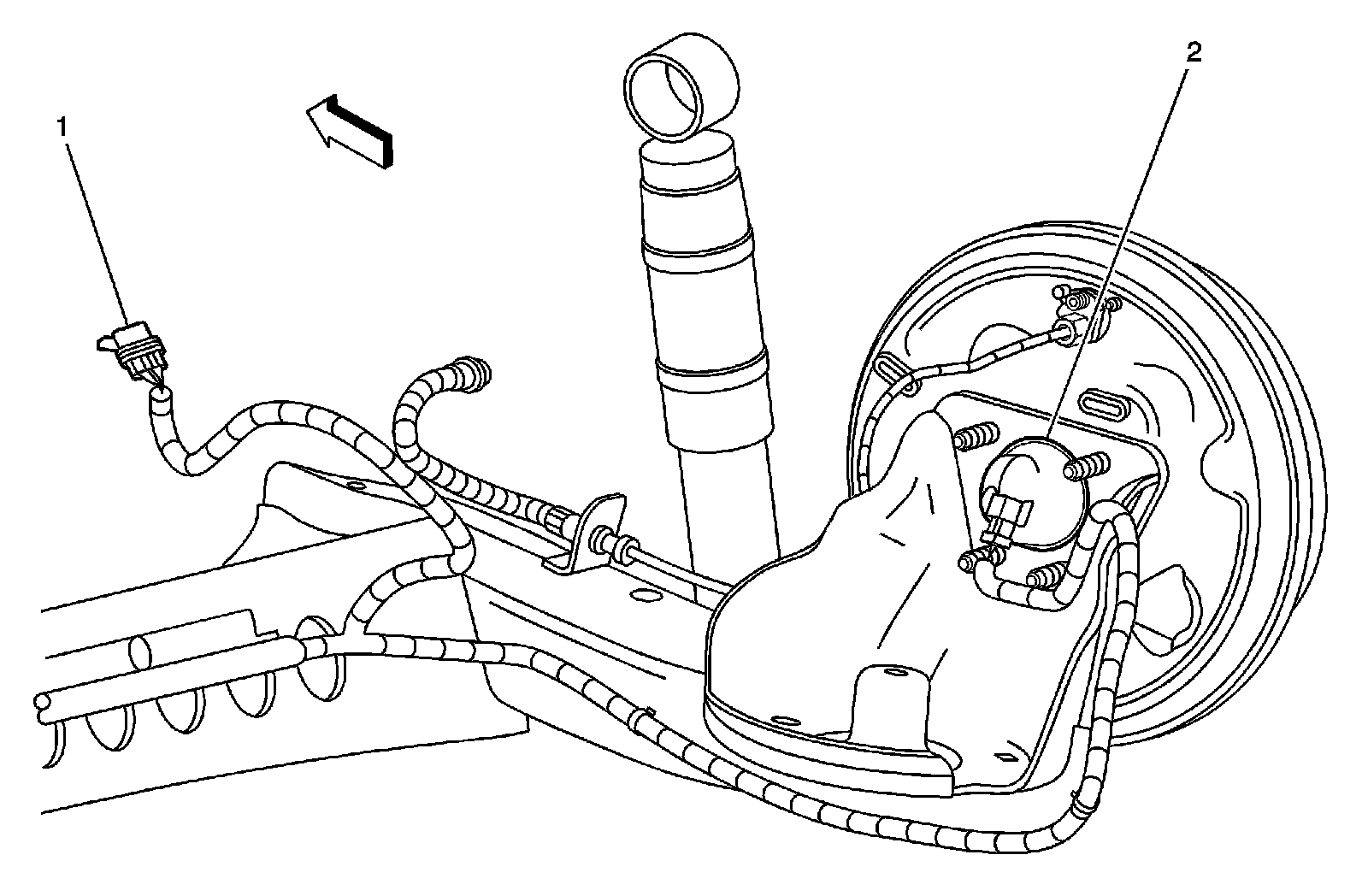

Right Rear Frame and Underbody




1 - X406
2 - Wheel Speed Sensor (WSS) - Right Rear, Left Rear Similar

Fuel Tank Components (1 of 2)




1 - Fuel Tank
2 - Fuel Pump and Sender Assembly
3 - Fuel Tank Pressure (FTP) Sensor
4 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
5 - Evaporative Emission (EVAP) Canister
