Fuse Block - Rear Access Panel (Panel Van)

Harness Routing Views

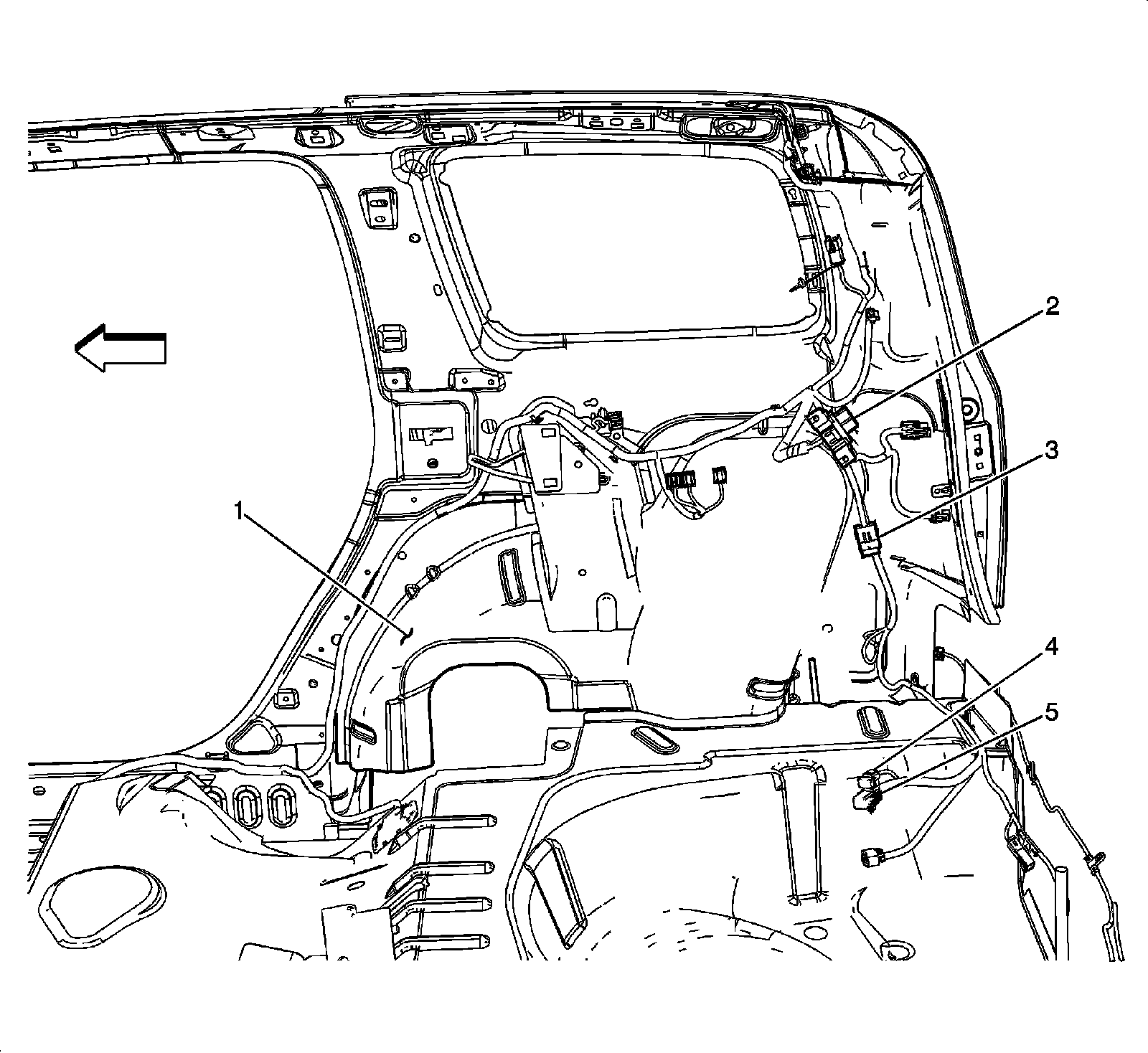

Right Rear Cargo Area (Panel Van)






1 - Wheel Well - Right Rear
2 - Fuse Block - Rear Access Panel (Panel Van)
3 - X406 (Provisional Accessory Power)
4 - Fuse Holder - BCM
5 - Fuse Holder - Provisional
