Antilock Brake System Schematics

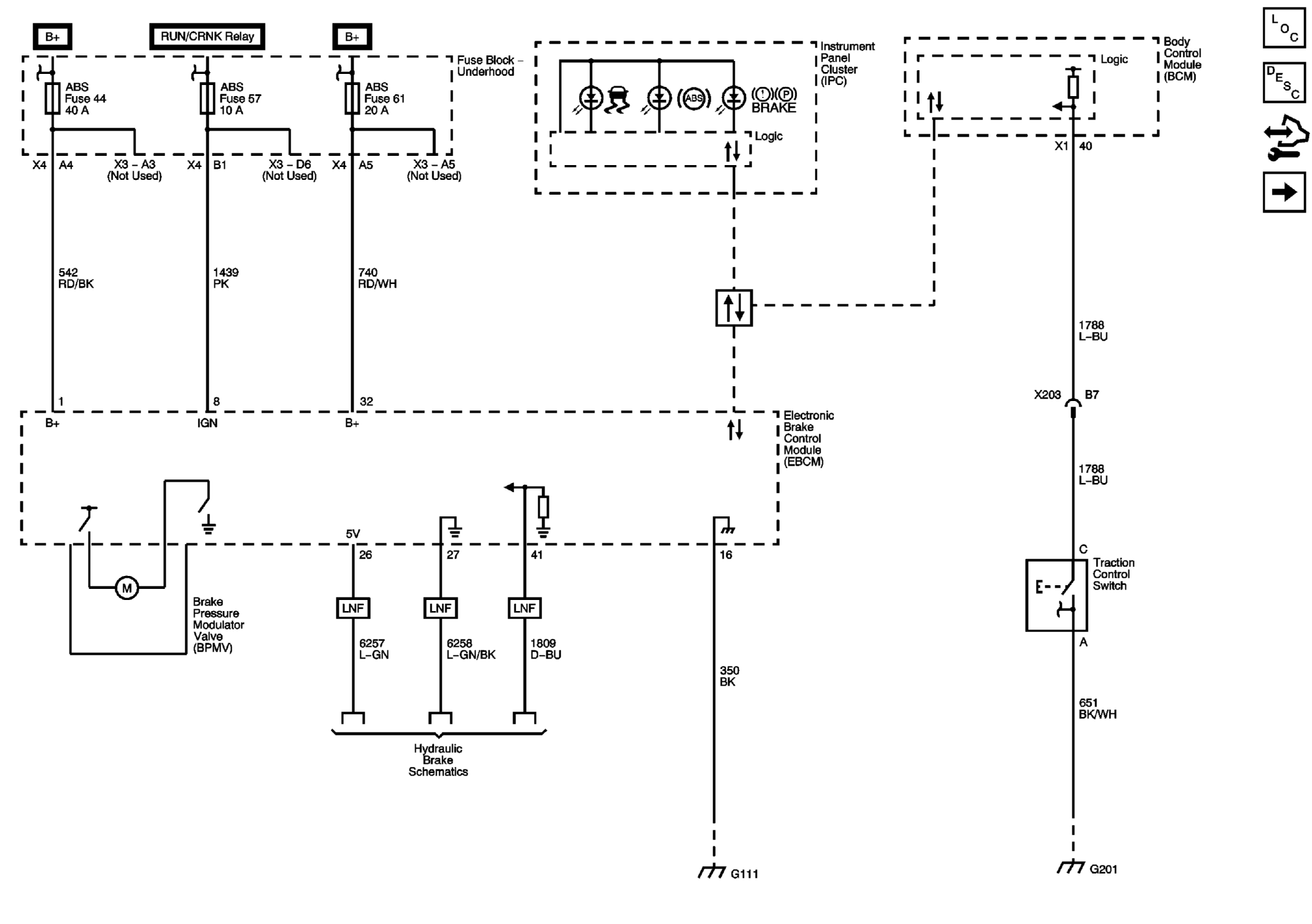

Fig 1: Power, Ground, Serial Data and Traction Control
Courtesy of GENERAL MOTORS CORP.

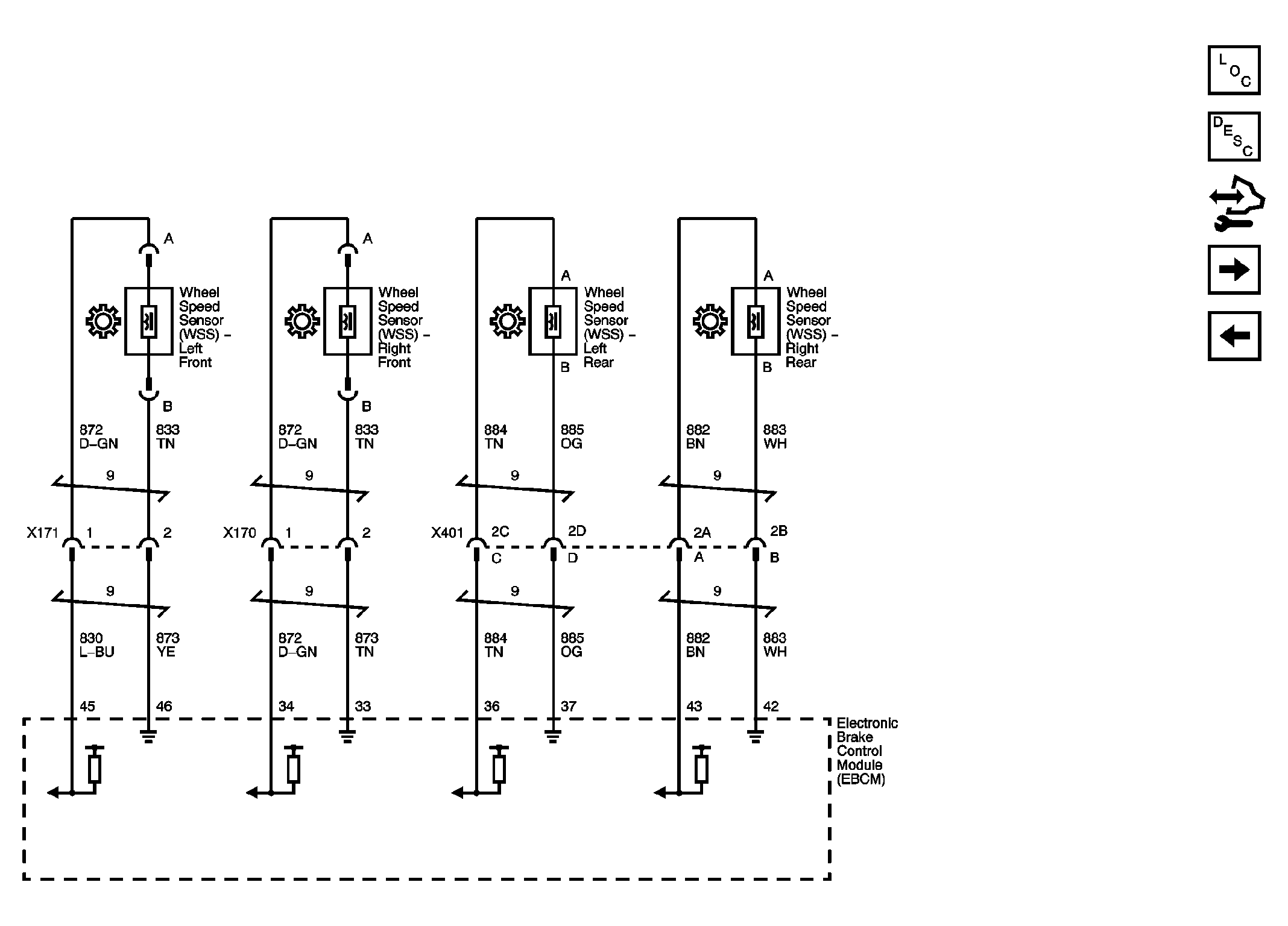

Fig 2: Wheel Speed Signals
Courtesy of GENERAL MOTORS CORP.

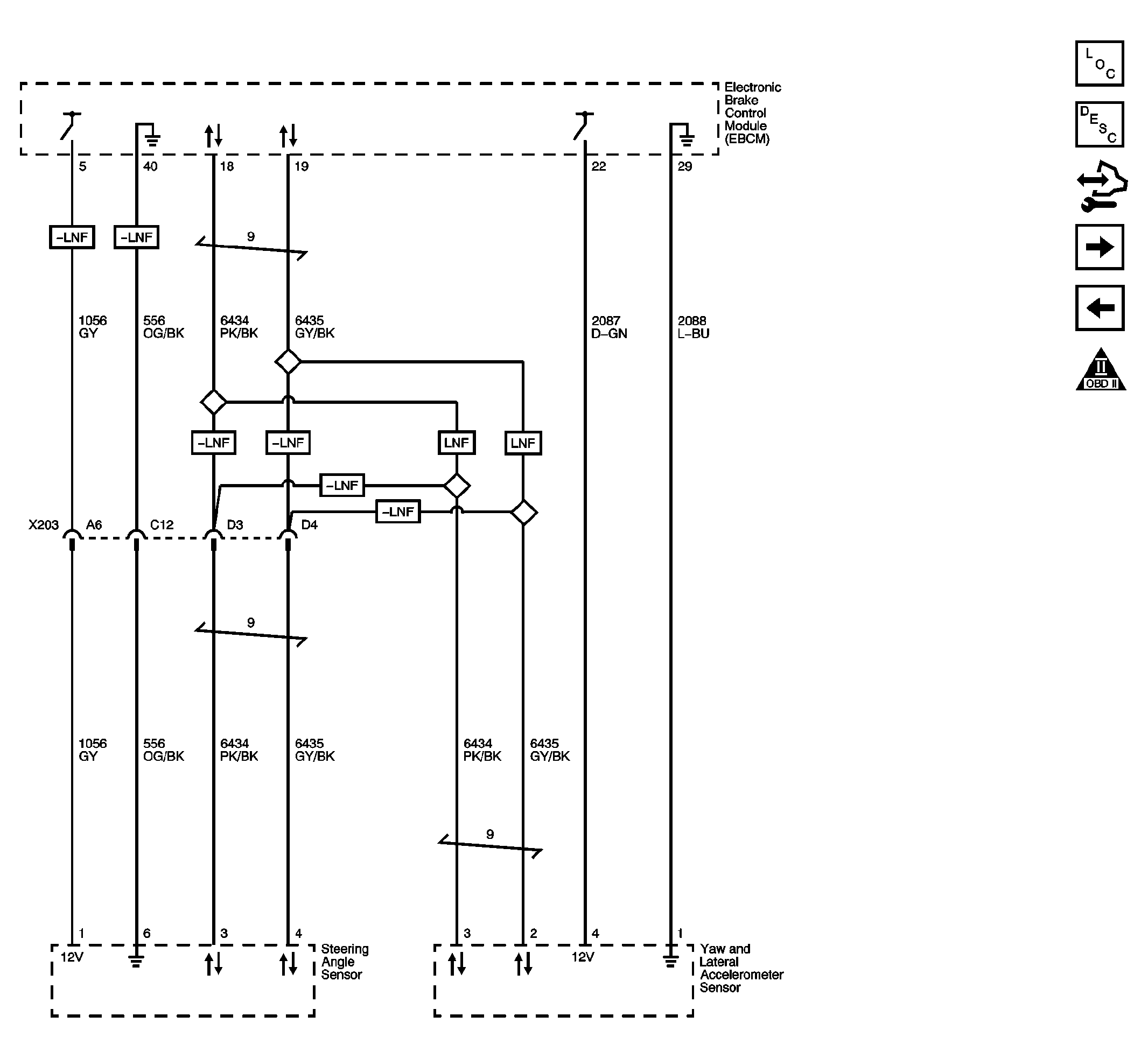

Fig 3: Vehicle Stability Control
Courtesy of GENERAL MOTORS CORP.
