Seat Temperature Control Module

Component Connector End Views

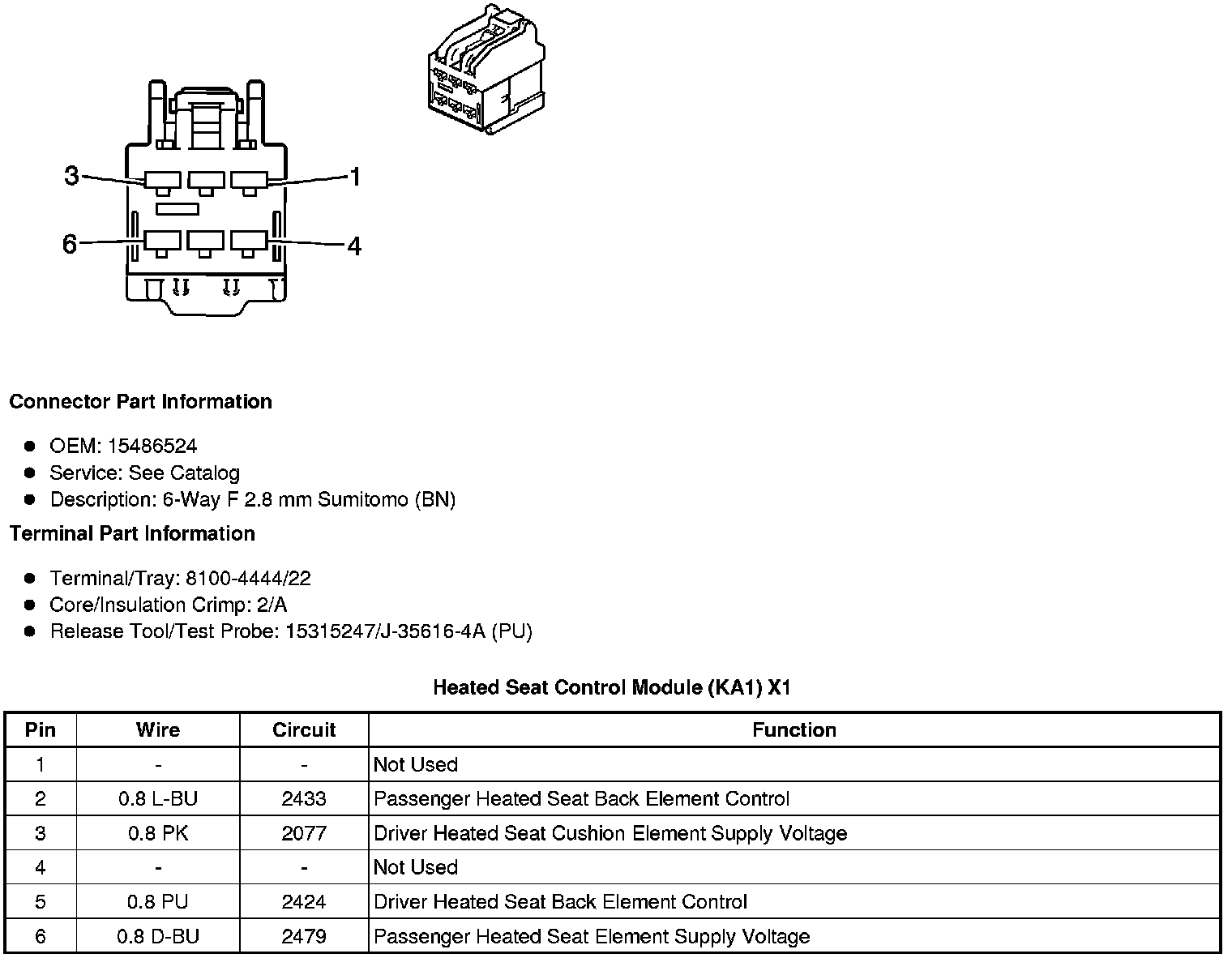

Heated Seat Control Module (KA1) X1

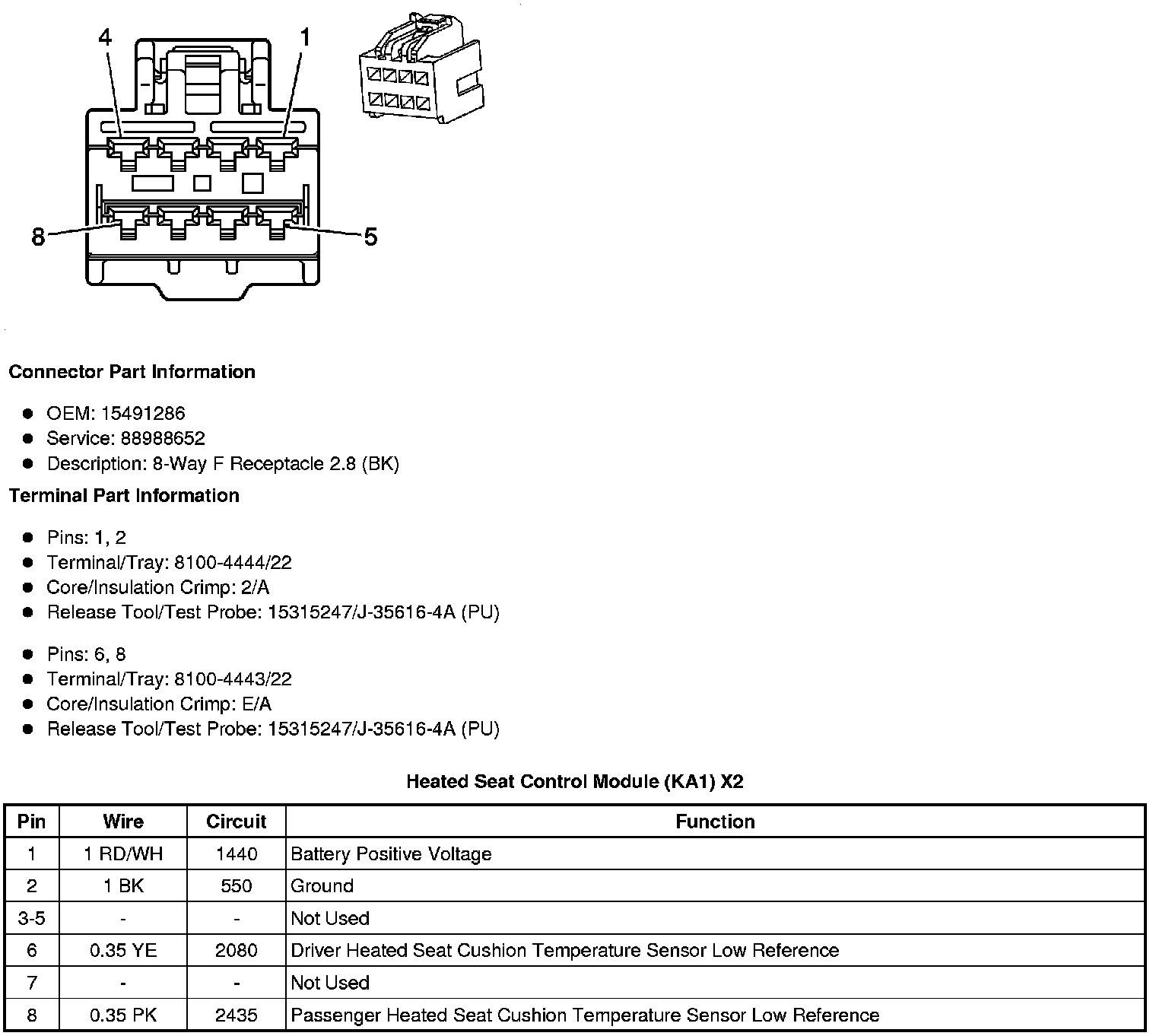

Heated Seat Control Module (KA1) X2

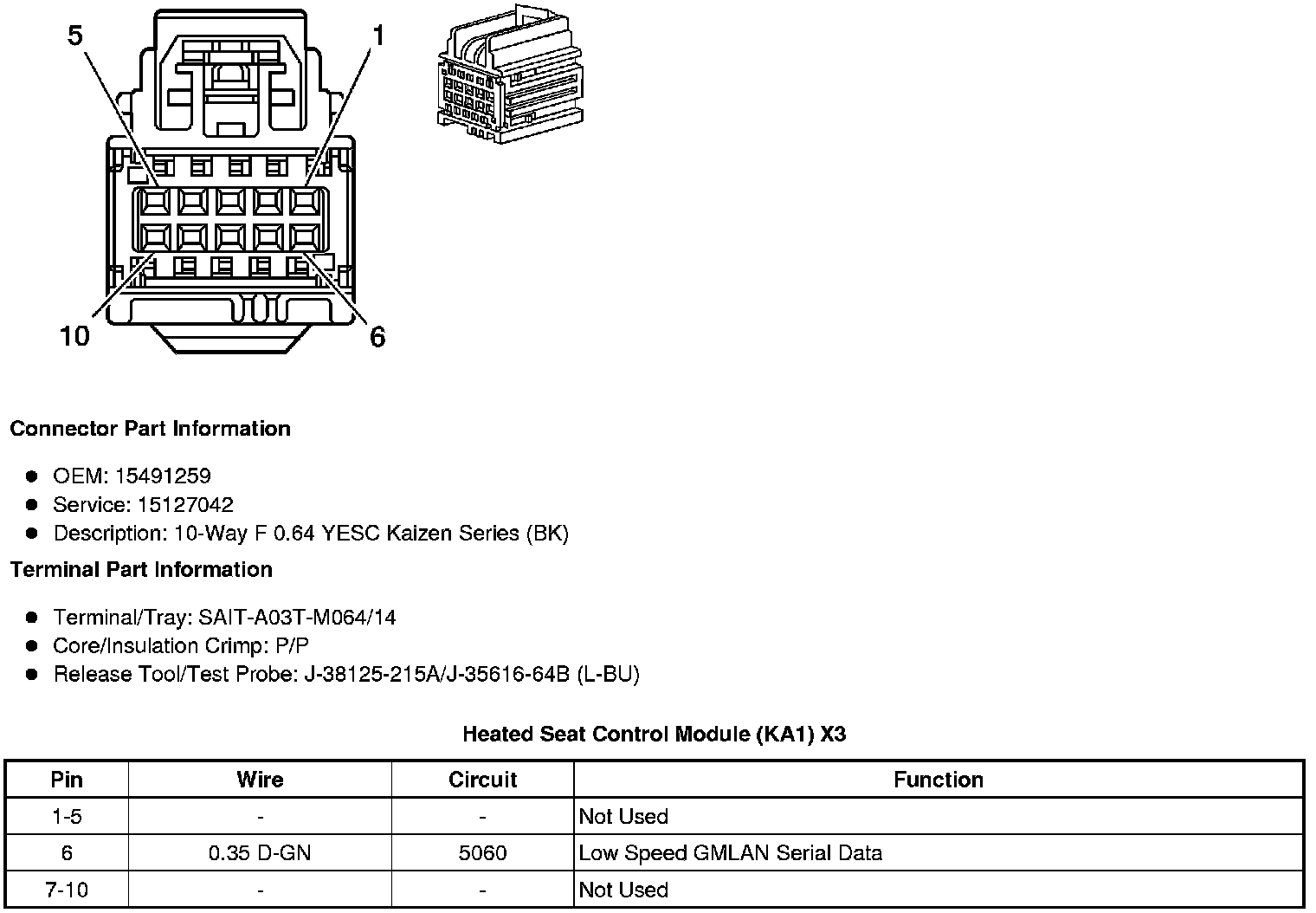

Heated Seat Control Module (KA1) X3

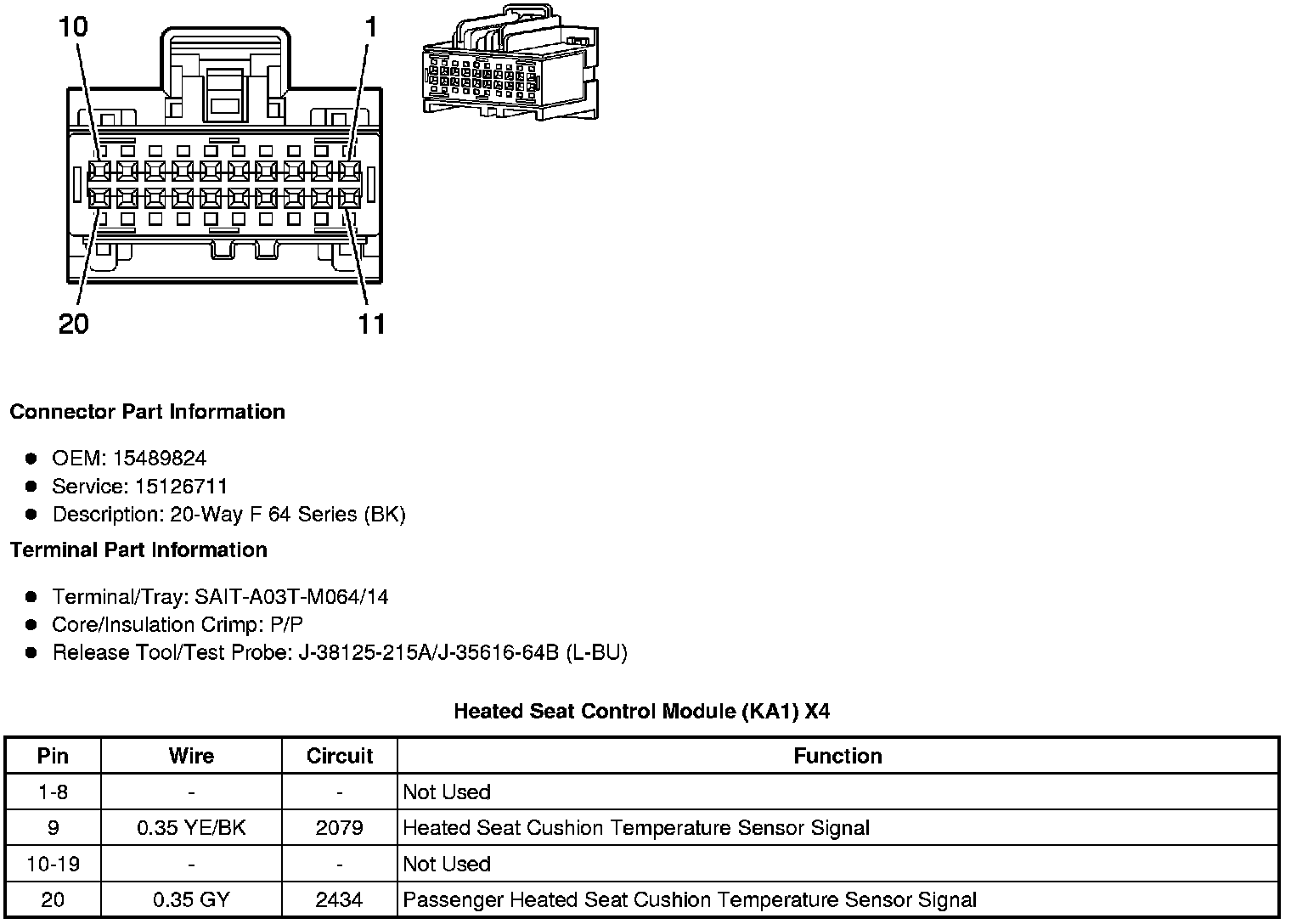

Heated Seat Control Module (KA1) X4
