Shift Interlock Solenoid




Component Connector End Views

Automatic Transmission Shift Lock Control Solenoid (without Floor Shifter)

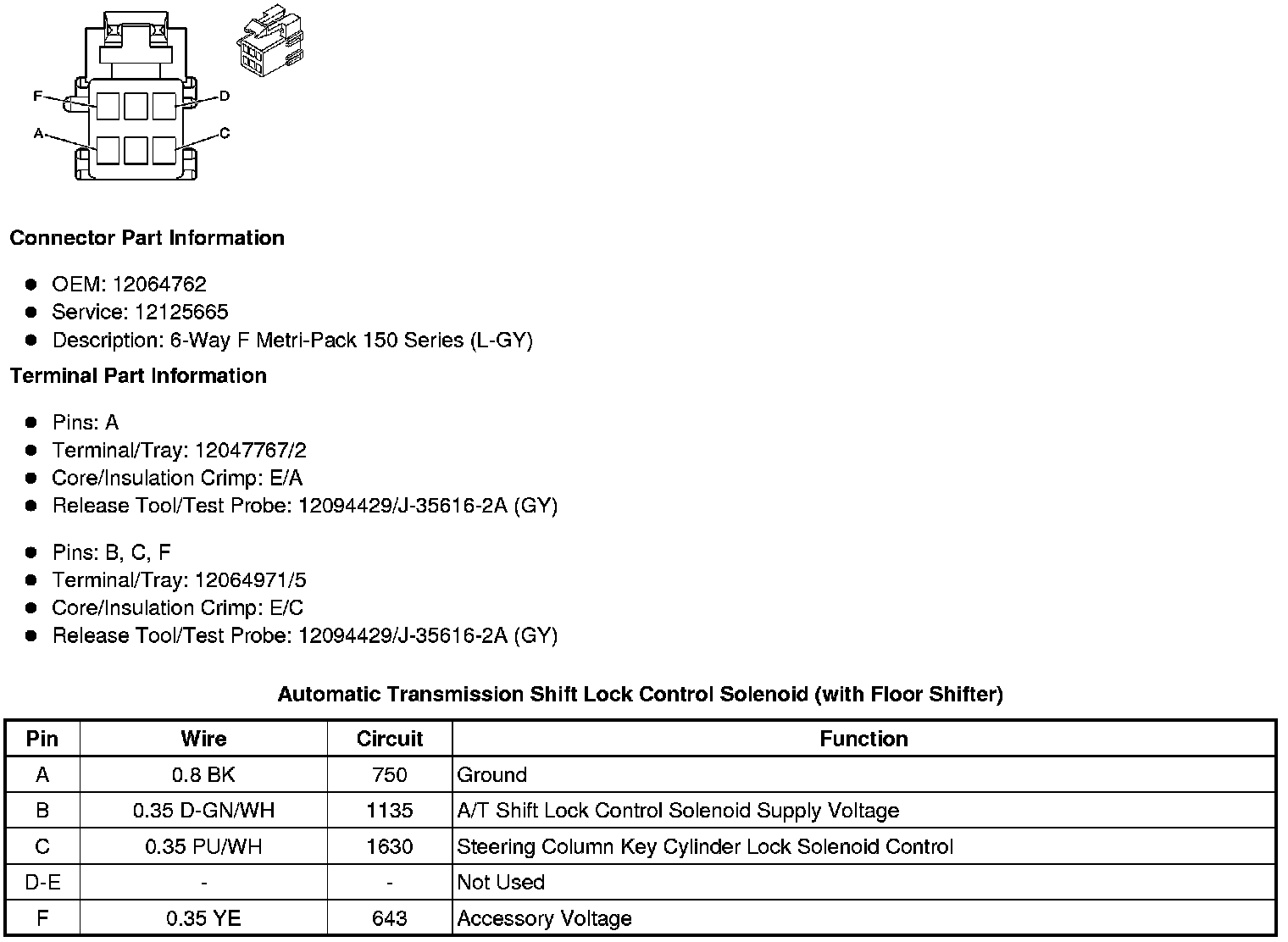

Automatic Transmission Shift Lock Control Solenoid (with Floor Shifter)
