Intake Manifold: Specifications

Throttle body bolts/studs 10 Nm (89 lb in)

Upper intake bolts/stud 25 Nm (18 lb ft)

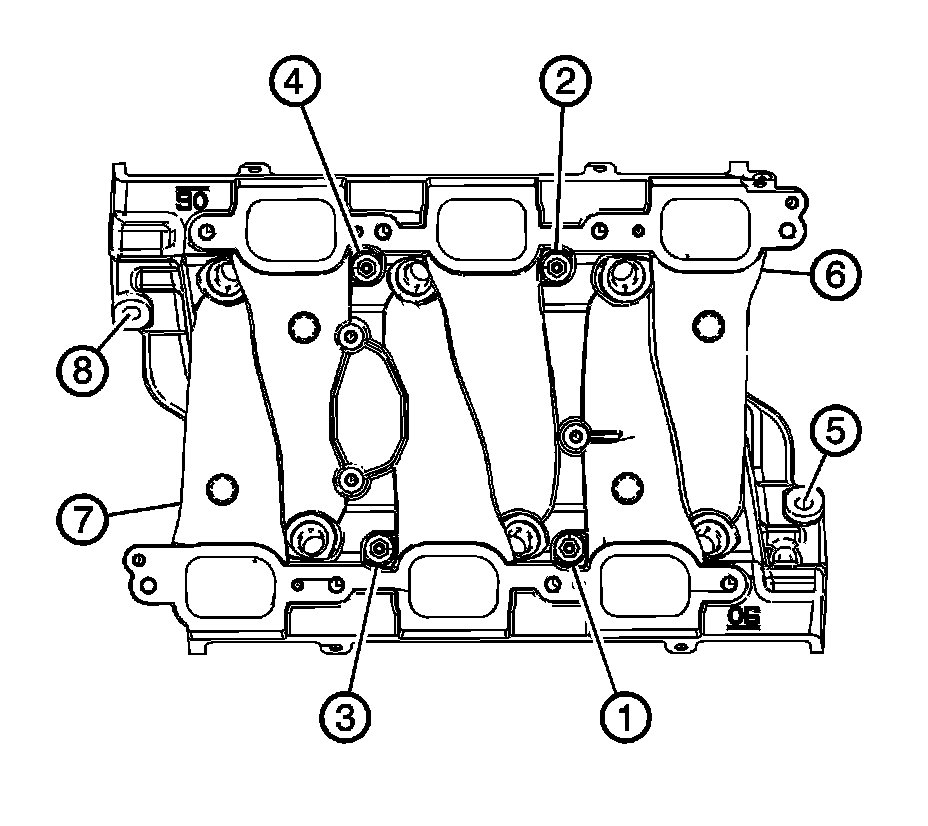

Lower Intake Manifold





Tighten bolts 1, 2, 3, 4 16 Nm (12 lb ft)
Tighten bolts 5, 6, 7, 8 25 Nm (18 lb ft)
