Harness Locations

Harness Routing Views

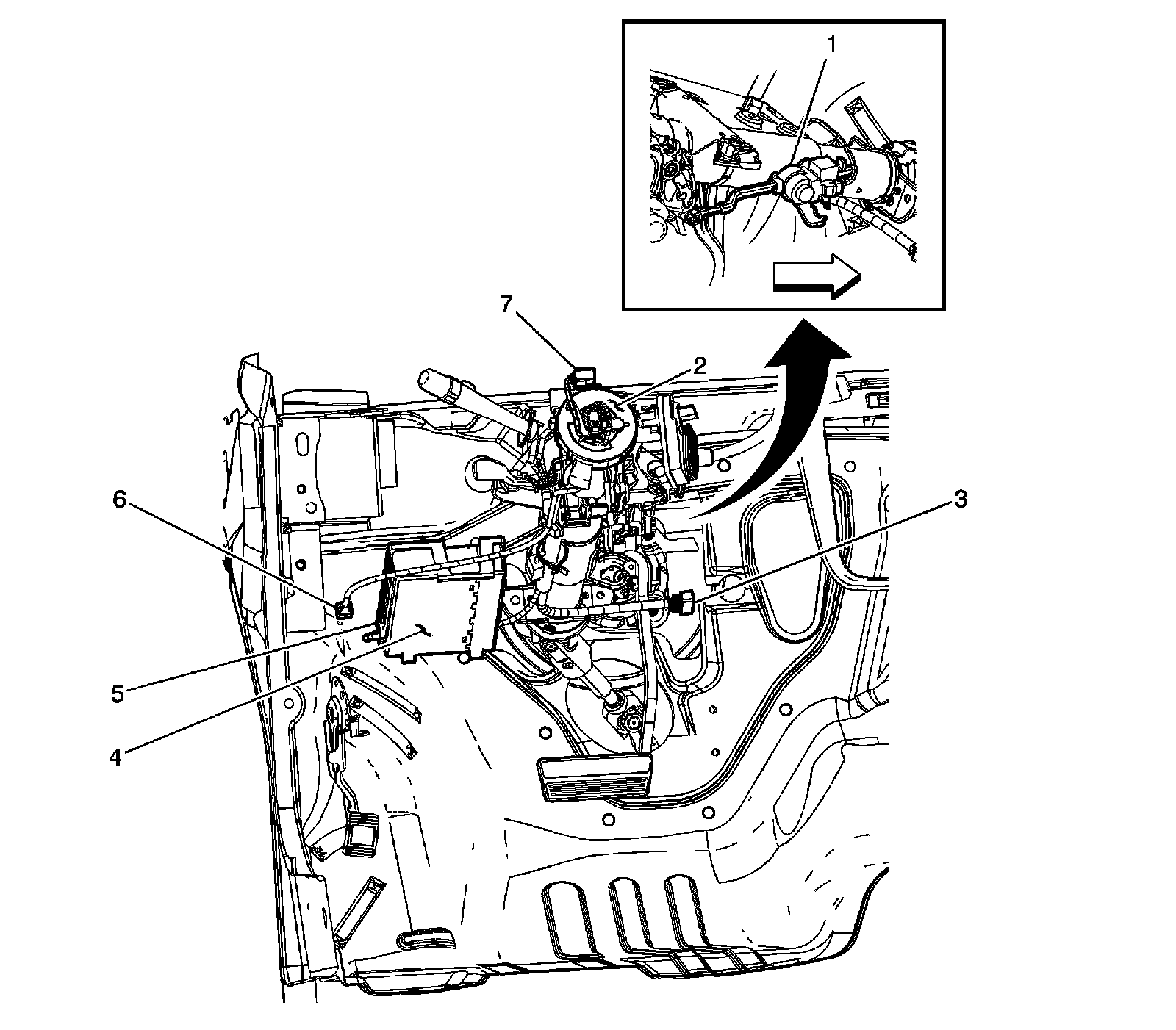

Lower Left Side of Instrument Panel Area Harness Routing

1 - Ignition Lock Cylinder Control Actuator
2 - Inflatable Restraint Steering Wheel Module Coil
3 - X201
4 - Body Control Module (BCM)
5 - BCM X1
6 - X250
7 - X277
