Alternator




Component Connector End Views

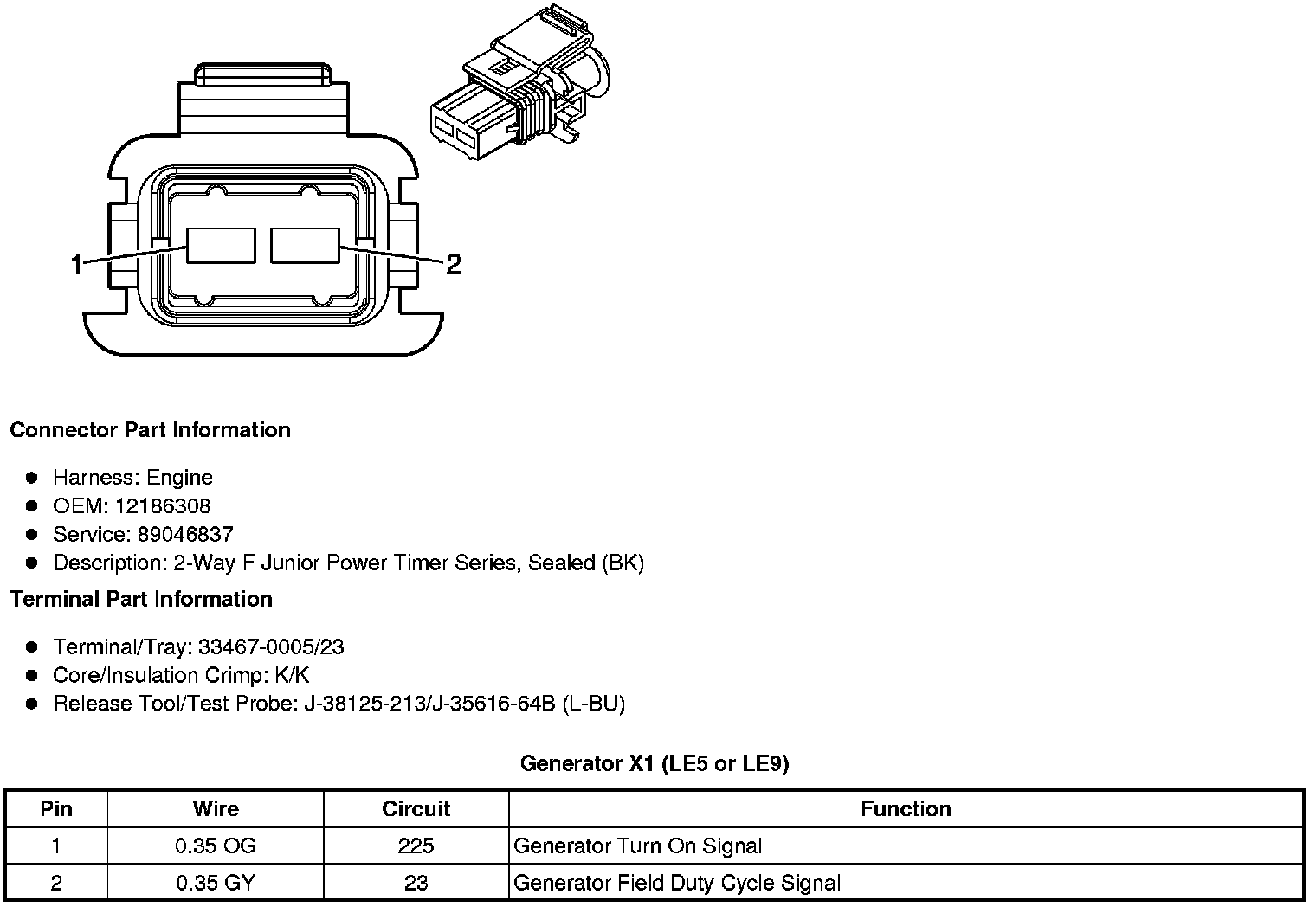

Generator X1 (LE5 or LE9)

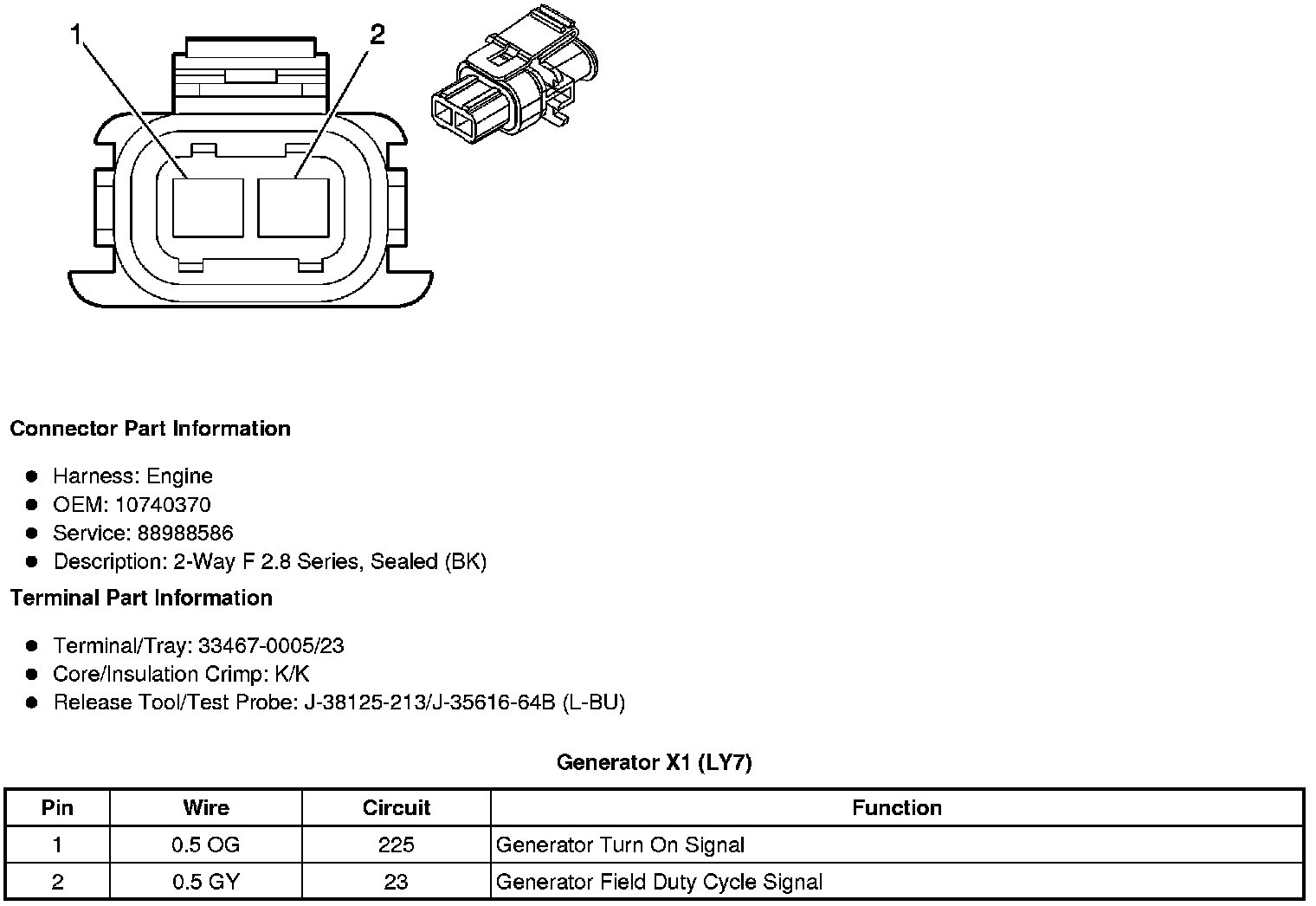

Generator X1 (LY7)





Generator X2 (LE5 or LE9)









Generator X2 (LY7)
