Oil Pressure Sensor: Diagrams




Component Connector End Views

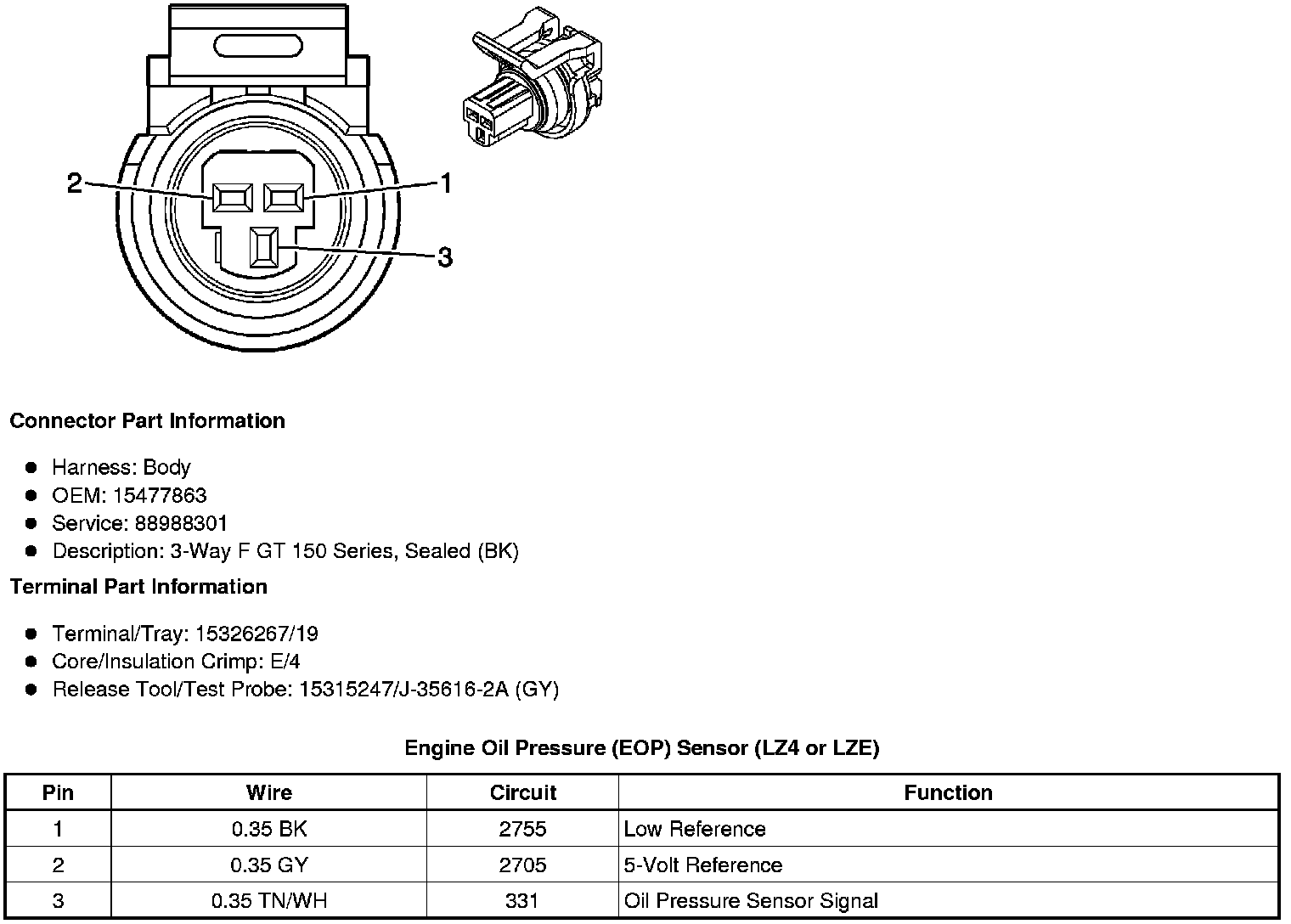

Engine Oil Pressure (EOP) Sensor (LZ4 or LZE)

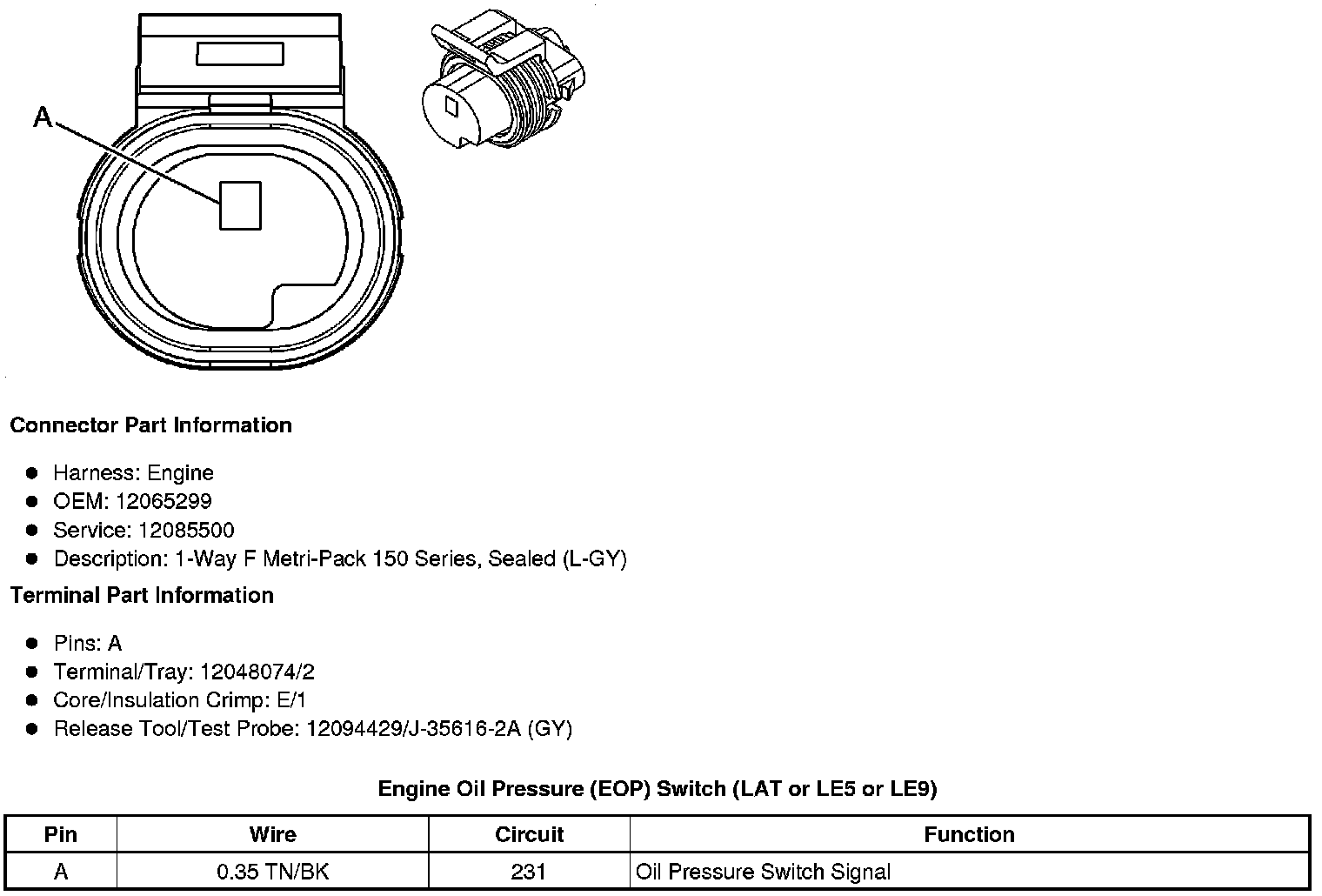

Engine Oil Pressure (EOP) Switch (LAT or LE5 or LE9)

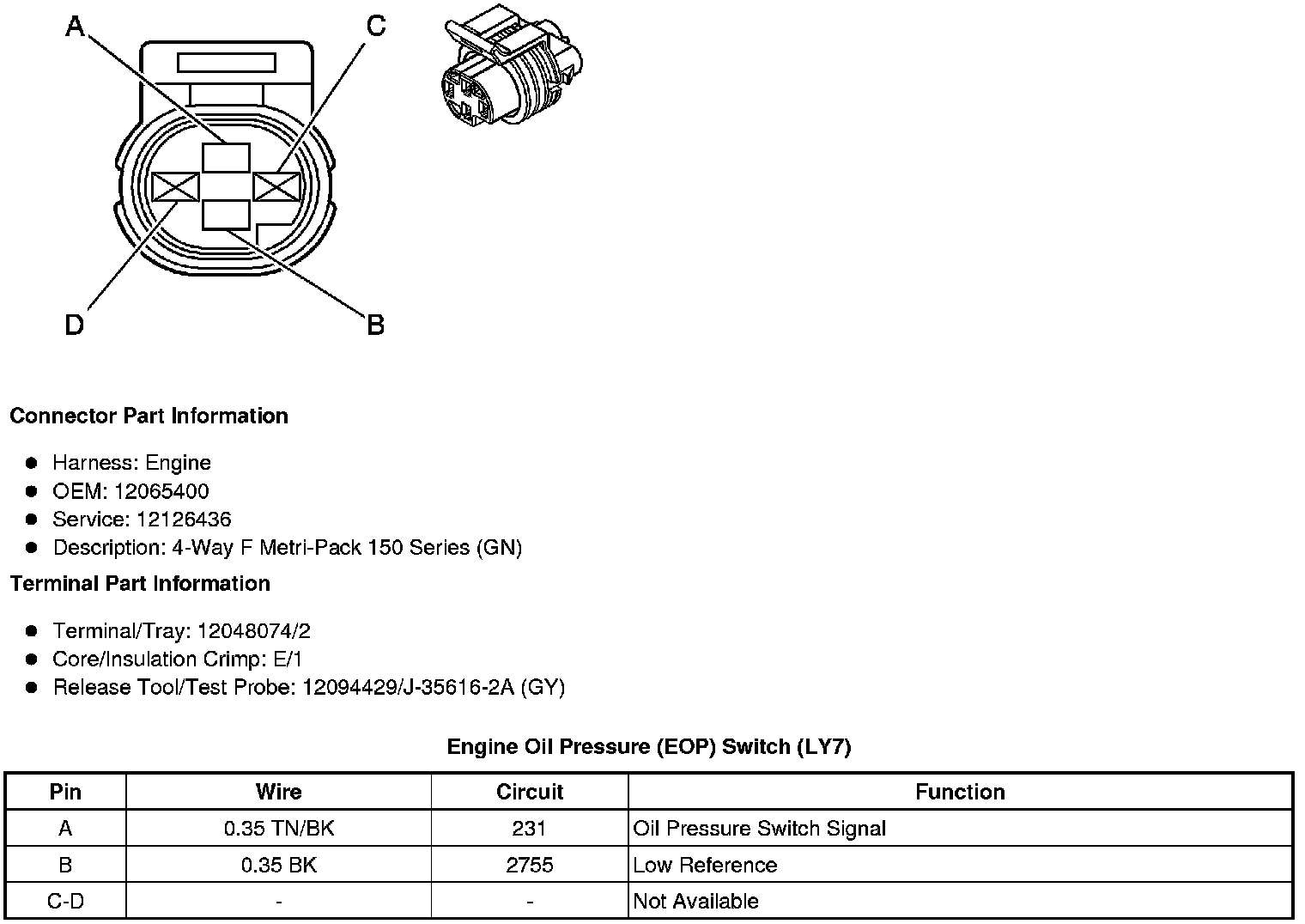

Engine Oil Pressure (EOP) Switch (LY7)
