Oxygen Sensor: Diagrams




Component Connector End Views

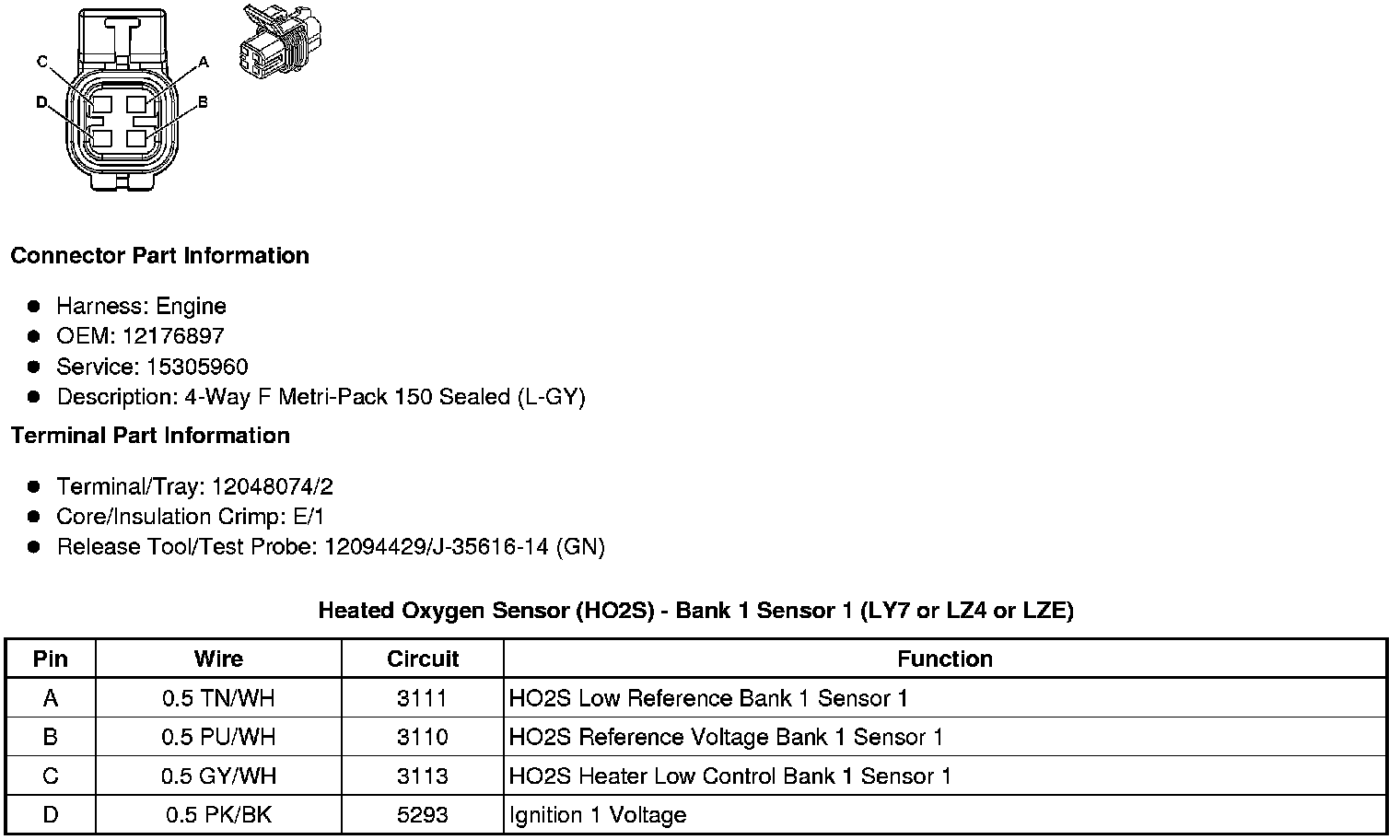

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LY7 or LZ4 or LZE)

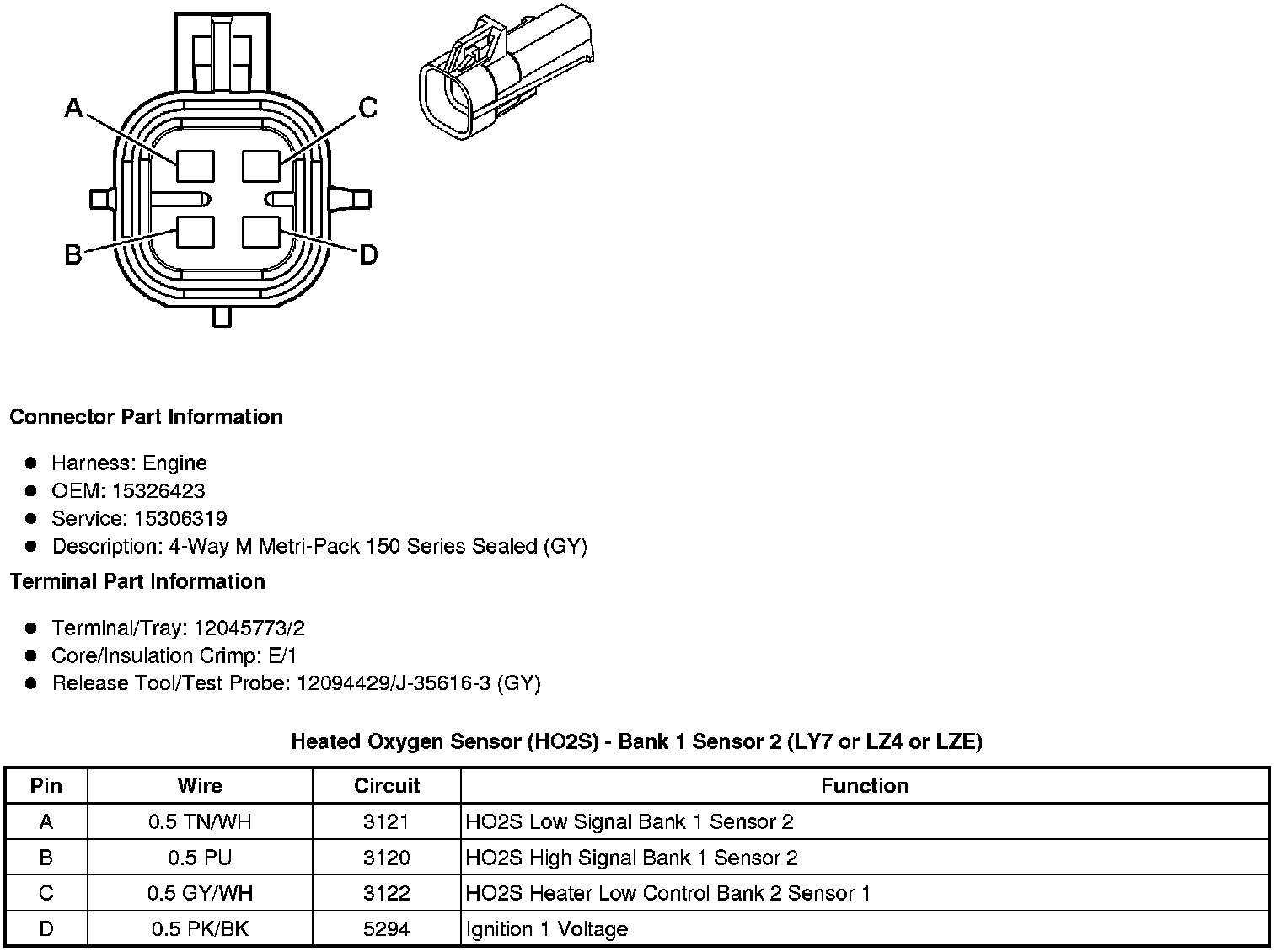

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LY7 or LZ4 or LZE)

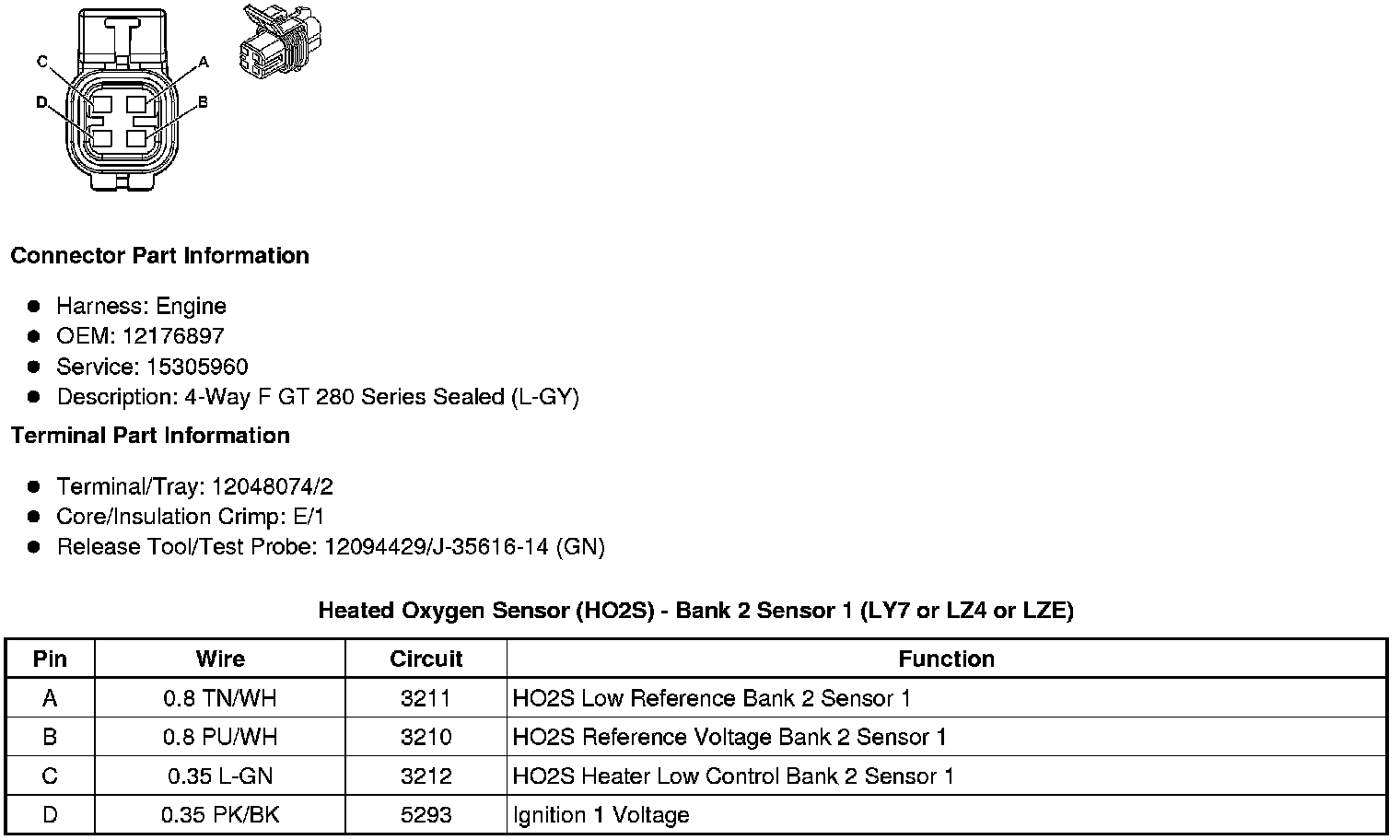

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LY7 or LZ4 or LZE)





Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LY7 or LZ4 or LZE)





Heated Oxygen Sensor (HO2S) 1 (LAT or LE5 or LE9 with MN5)

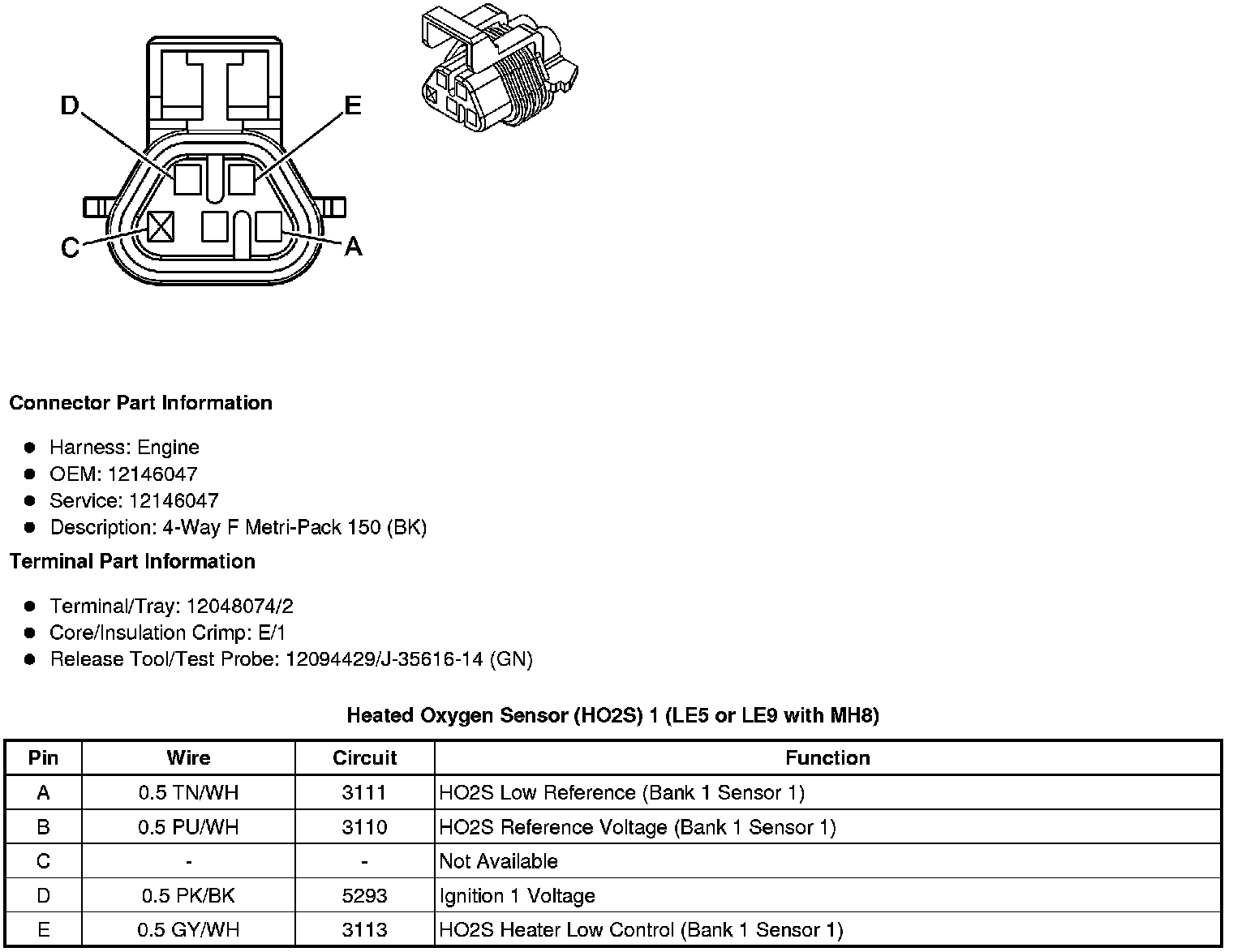

Heated Oxygen Sensor (HO2S) 1 (LE5 or LE9 with MH8)

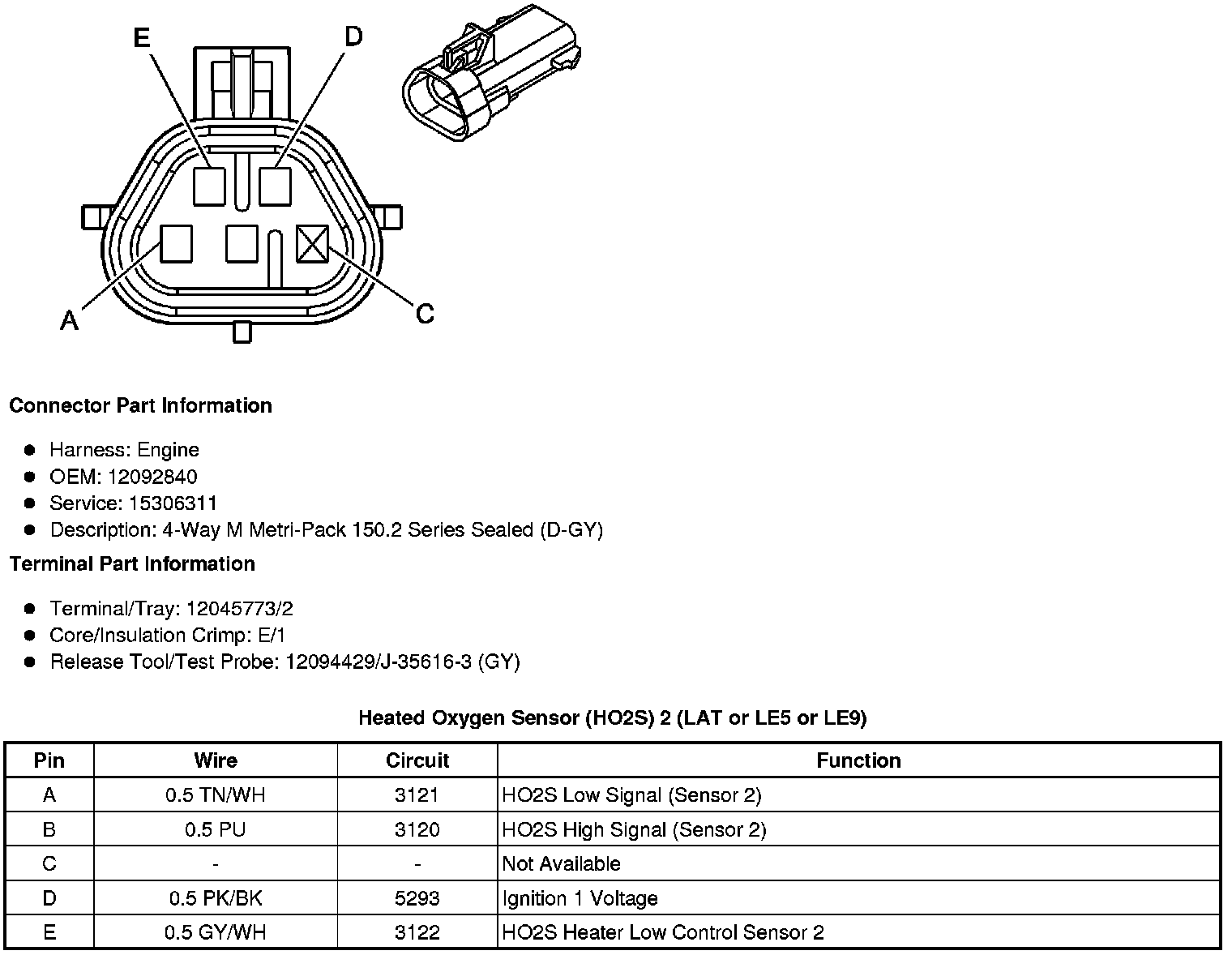

Heated Oxygen Sensor (HO2S) 2 (LAT or LE5 or LE9)
