Control Module: Diagrams
Component Connector End Views

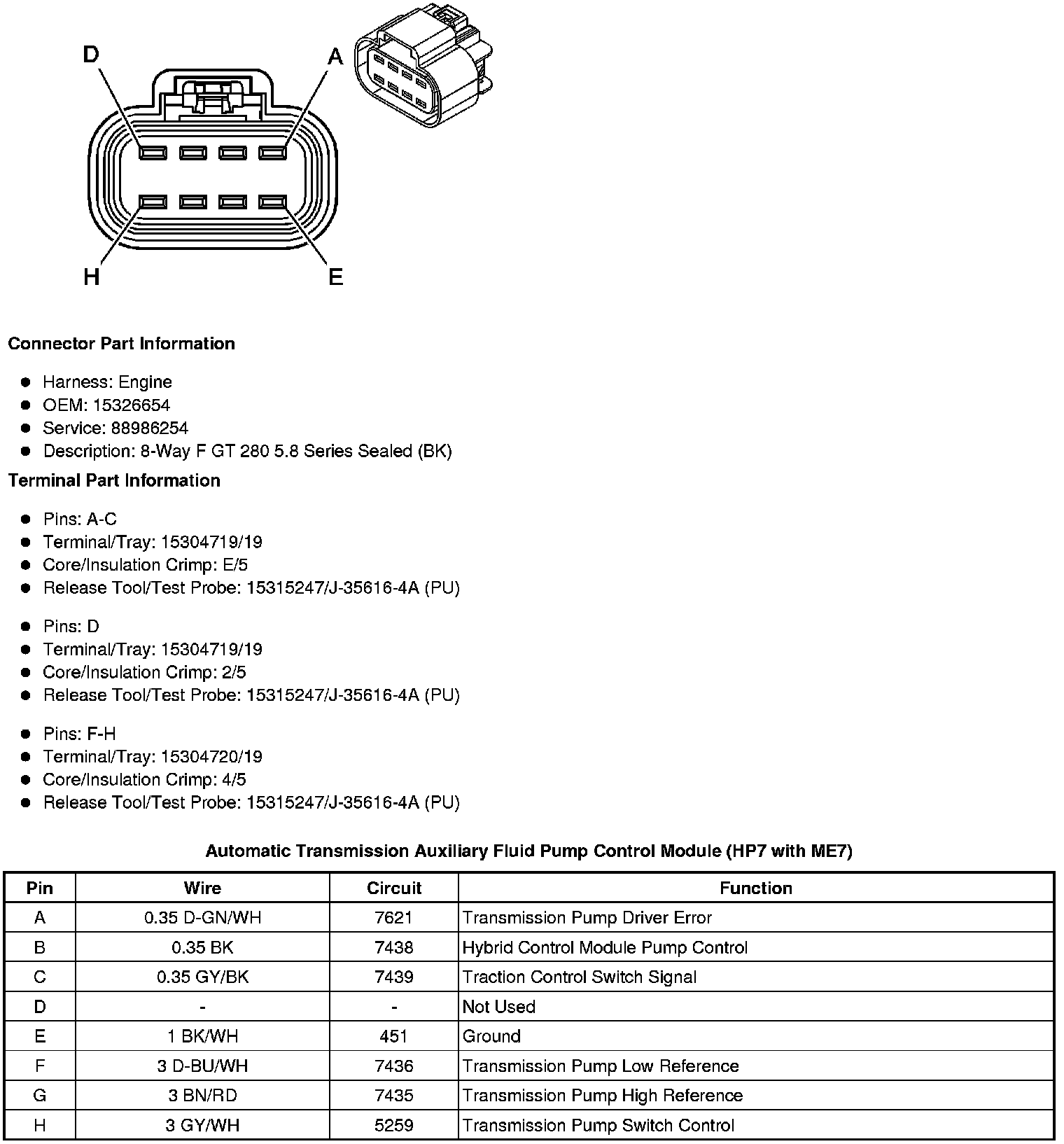

Automatic Transmission Auxiliary Fluid Pump Control Module (HP7 with ME7)

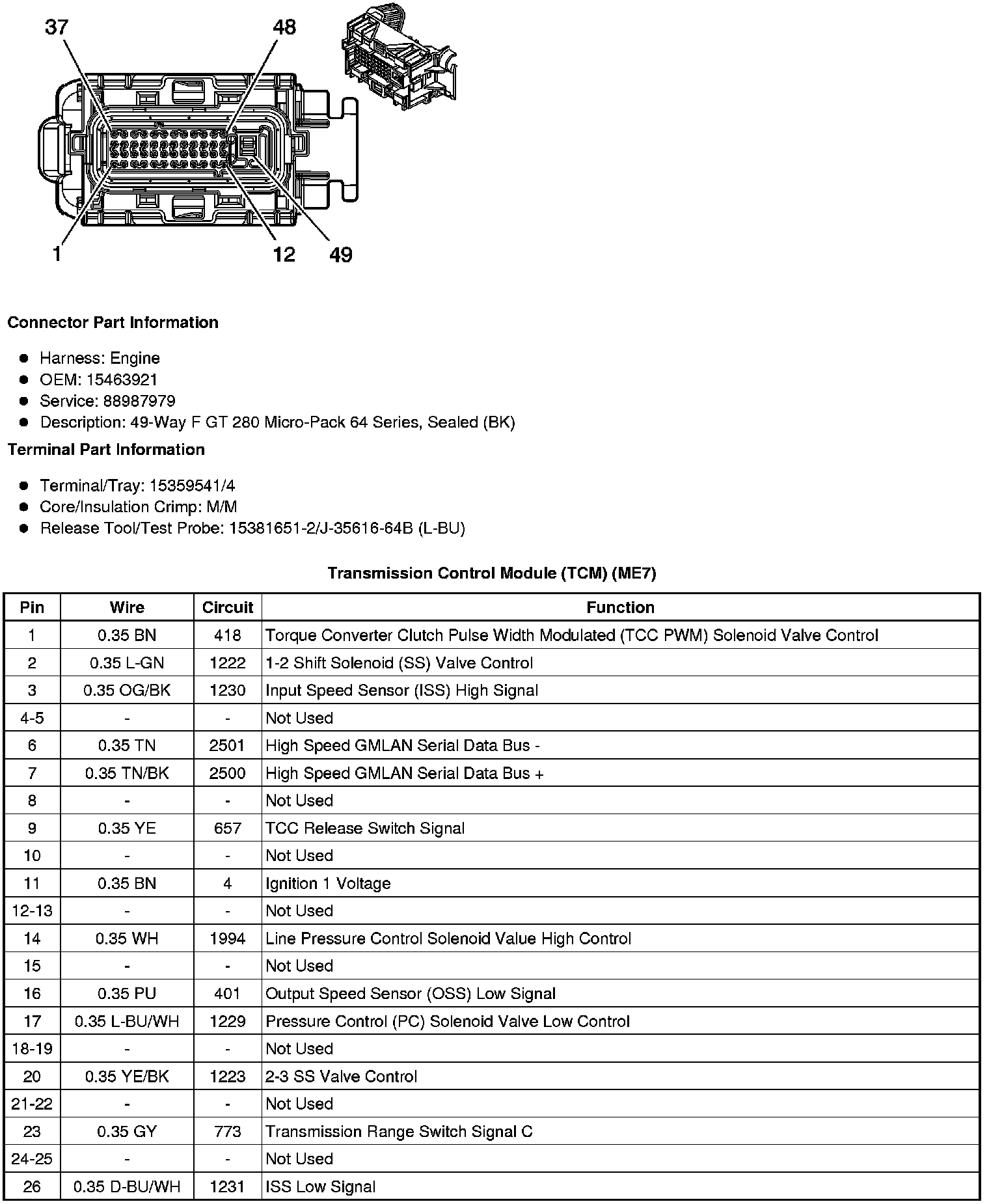

Transmission Control Module (TCM) (ME7)

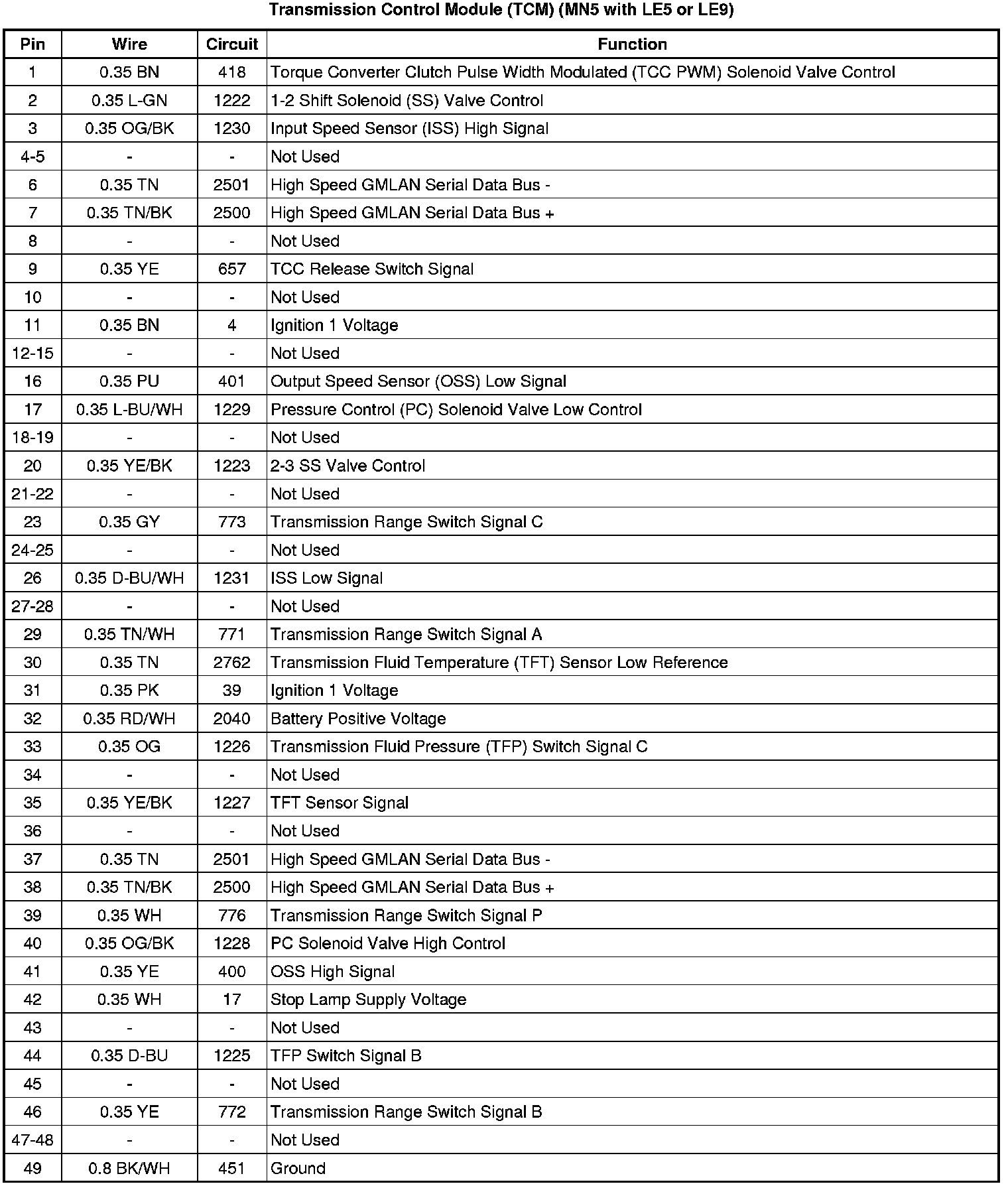

Transmission Control Module (TCM) (MN5 with LE5 or LE9)

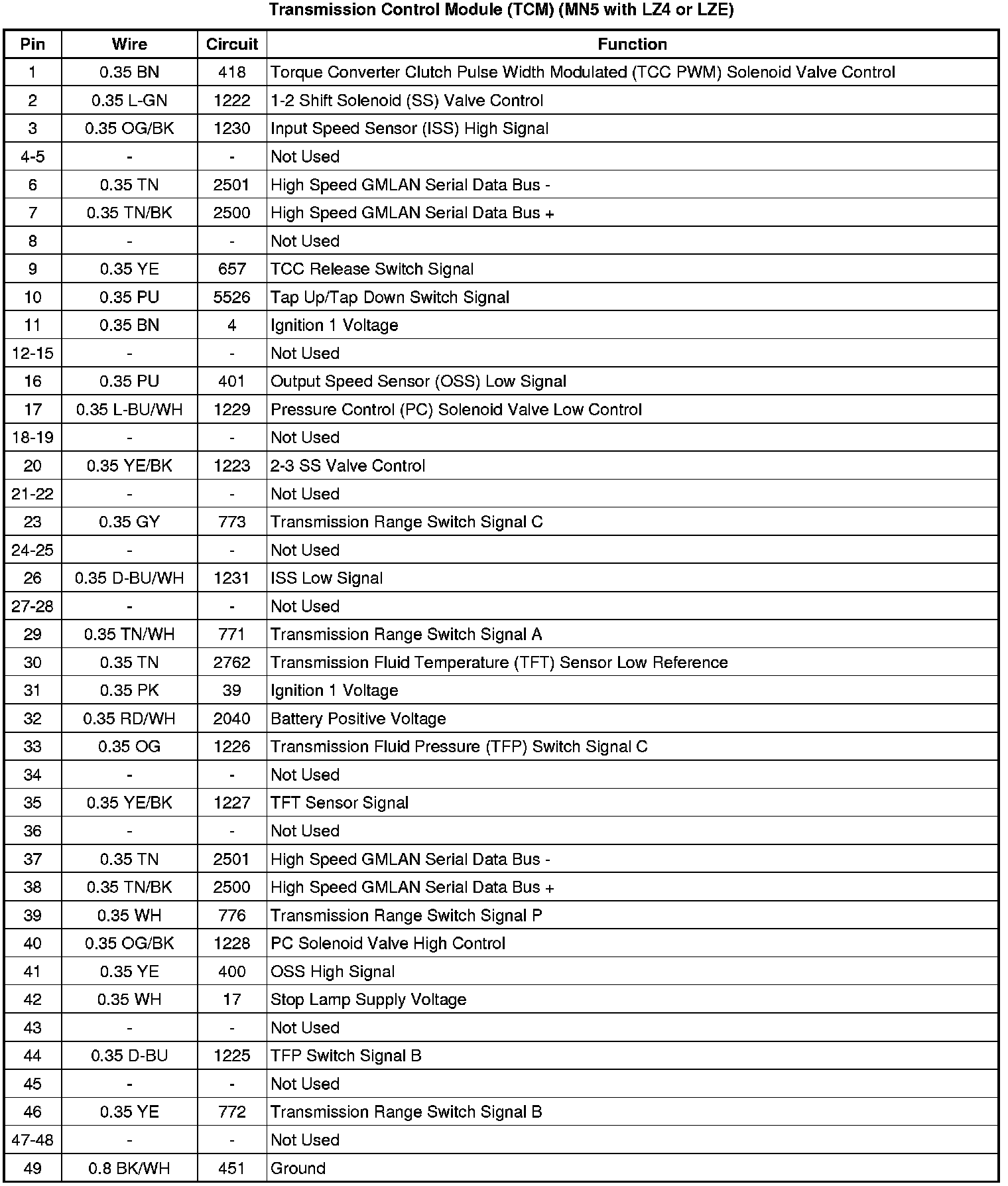

Transmission Control Module (TCM) (MN5 with LZ4 or LZE)
