Vehicle Speed Sensor: Diagrams

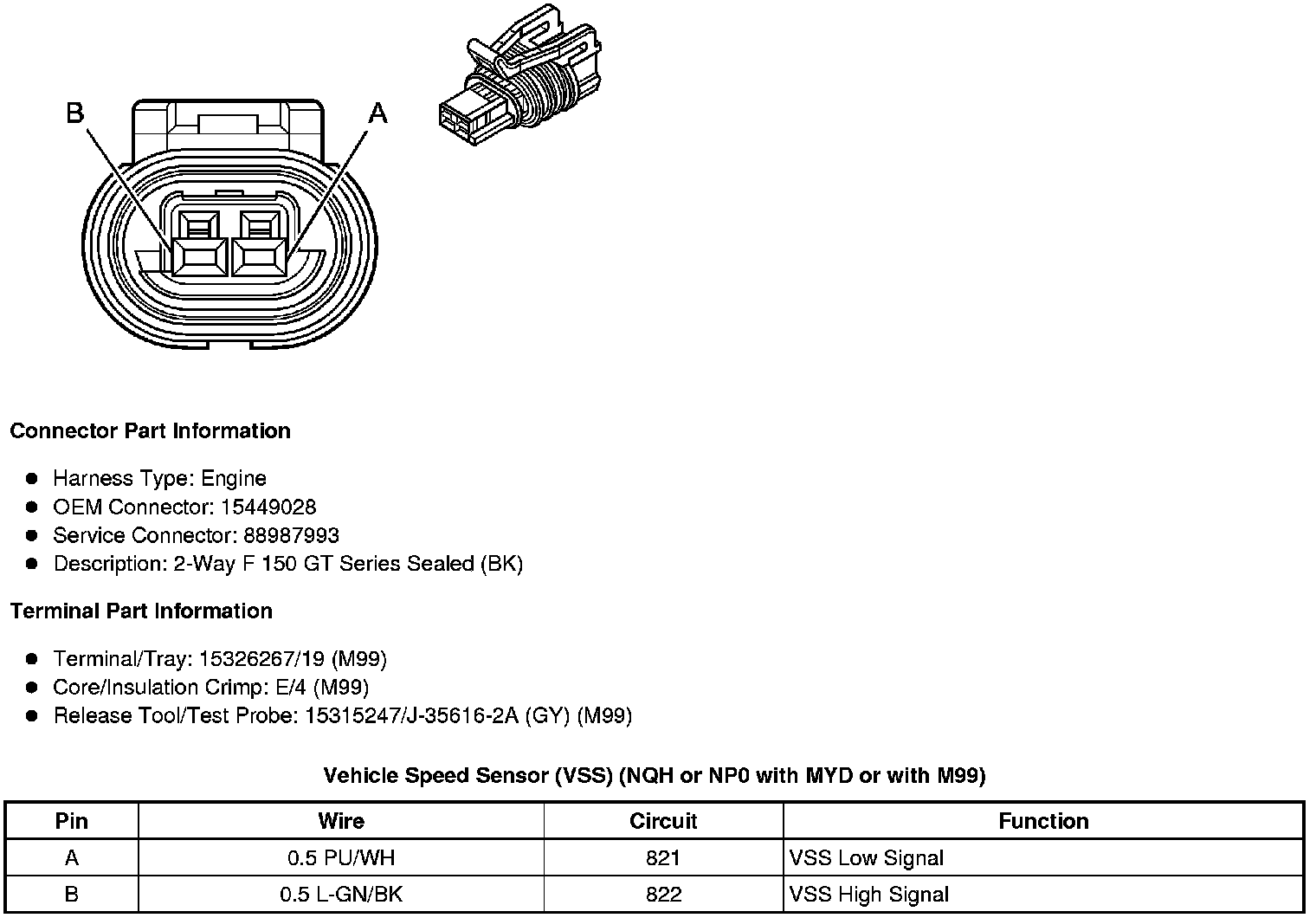

Component Connector End Views

Vehicle Speed Sensor (VSS) (NQH or NP0 with MYD or with M99)
