Master Splice List




Master Electrical Component List

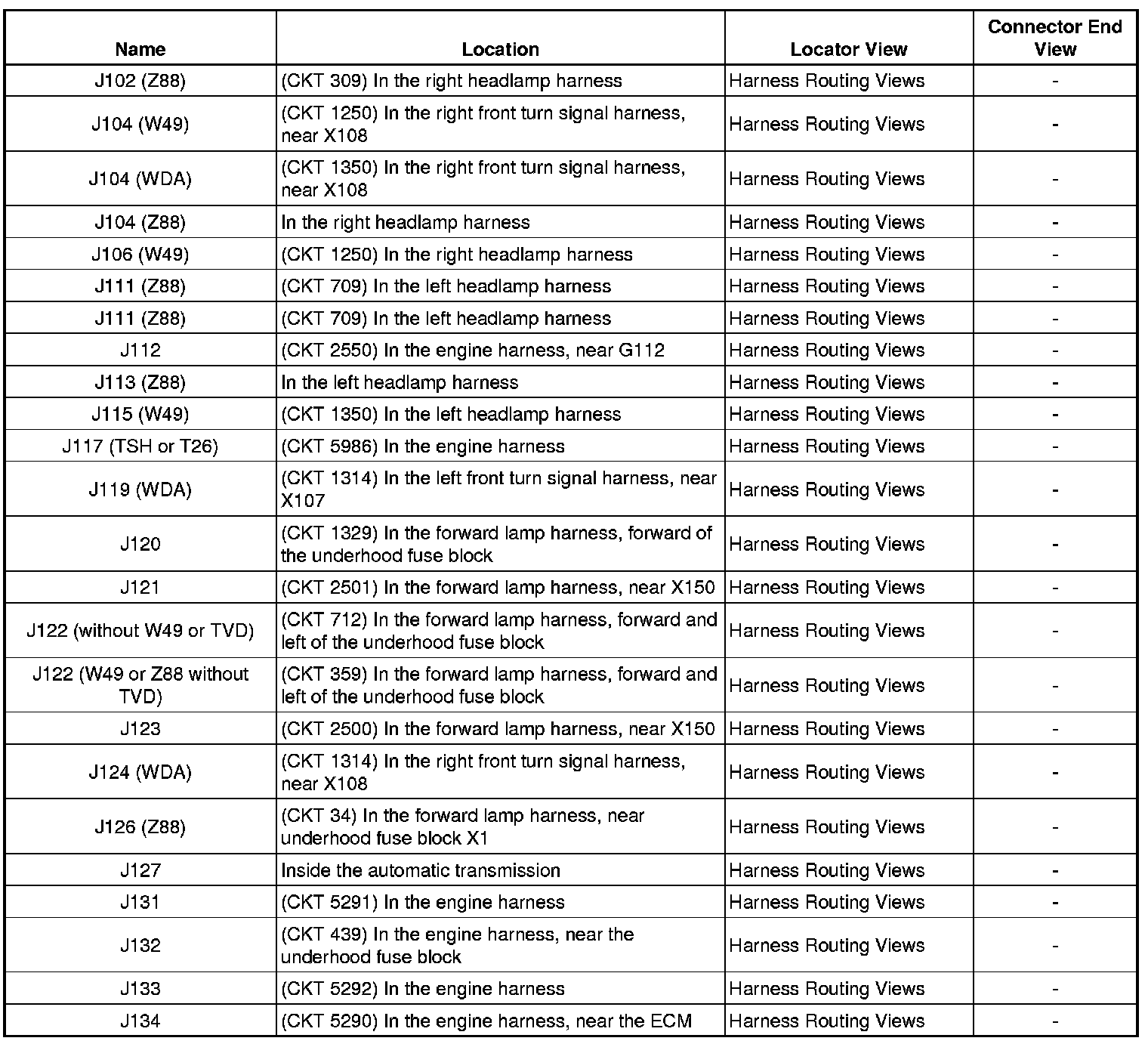

J102 - J134:

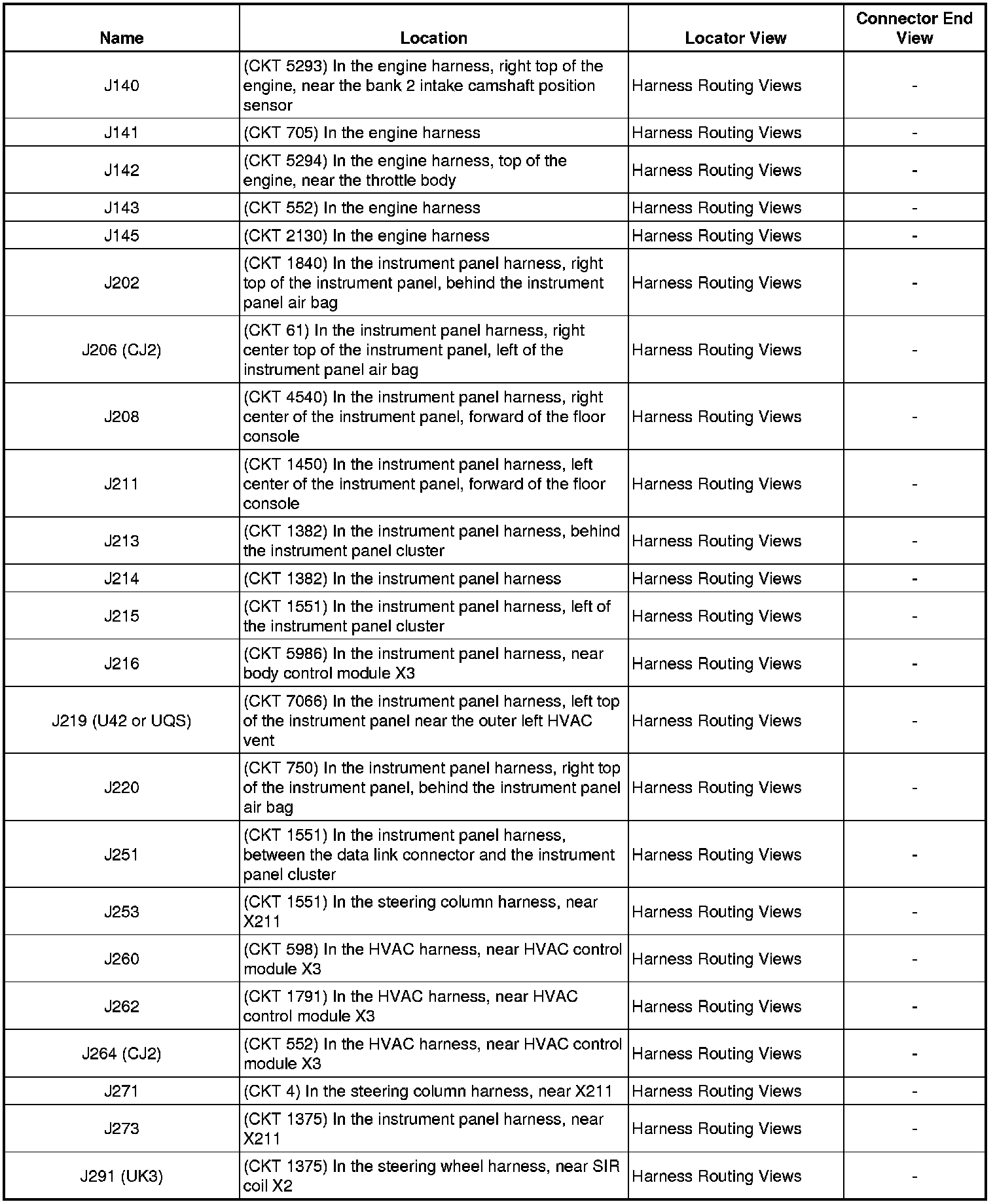

J140 - J291:

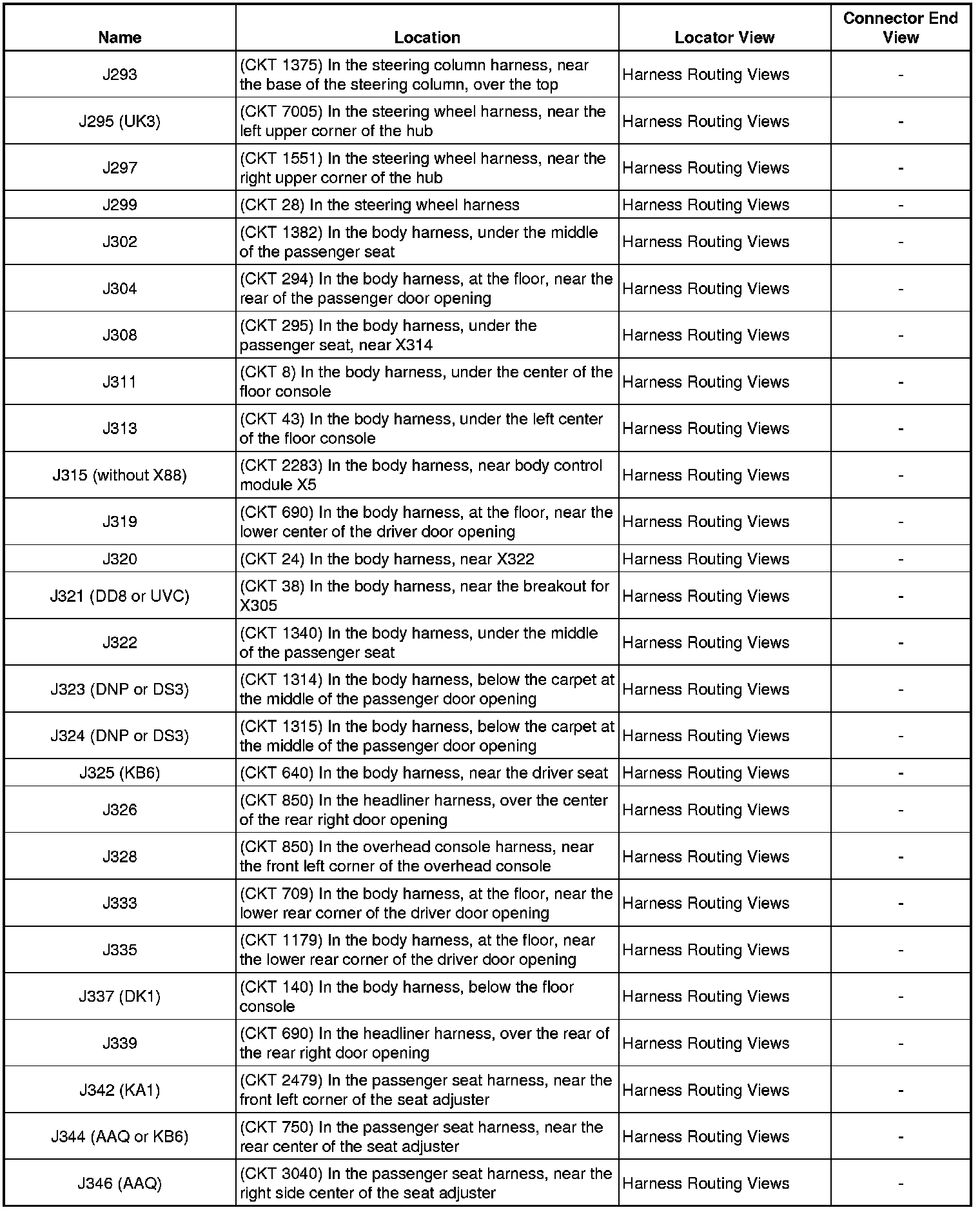

J293 - J346:

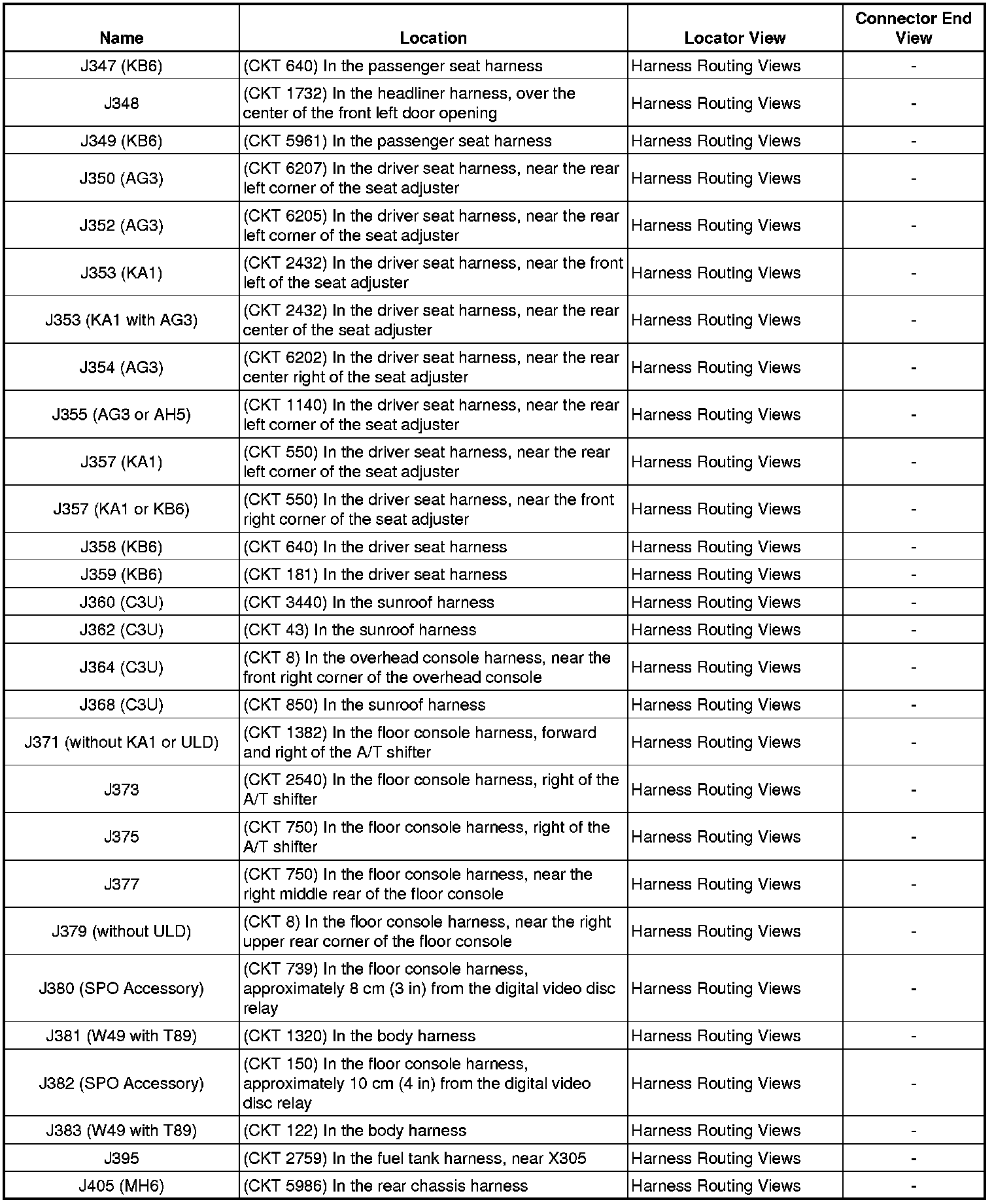

J347 - J405:

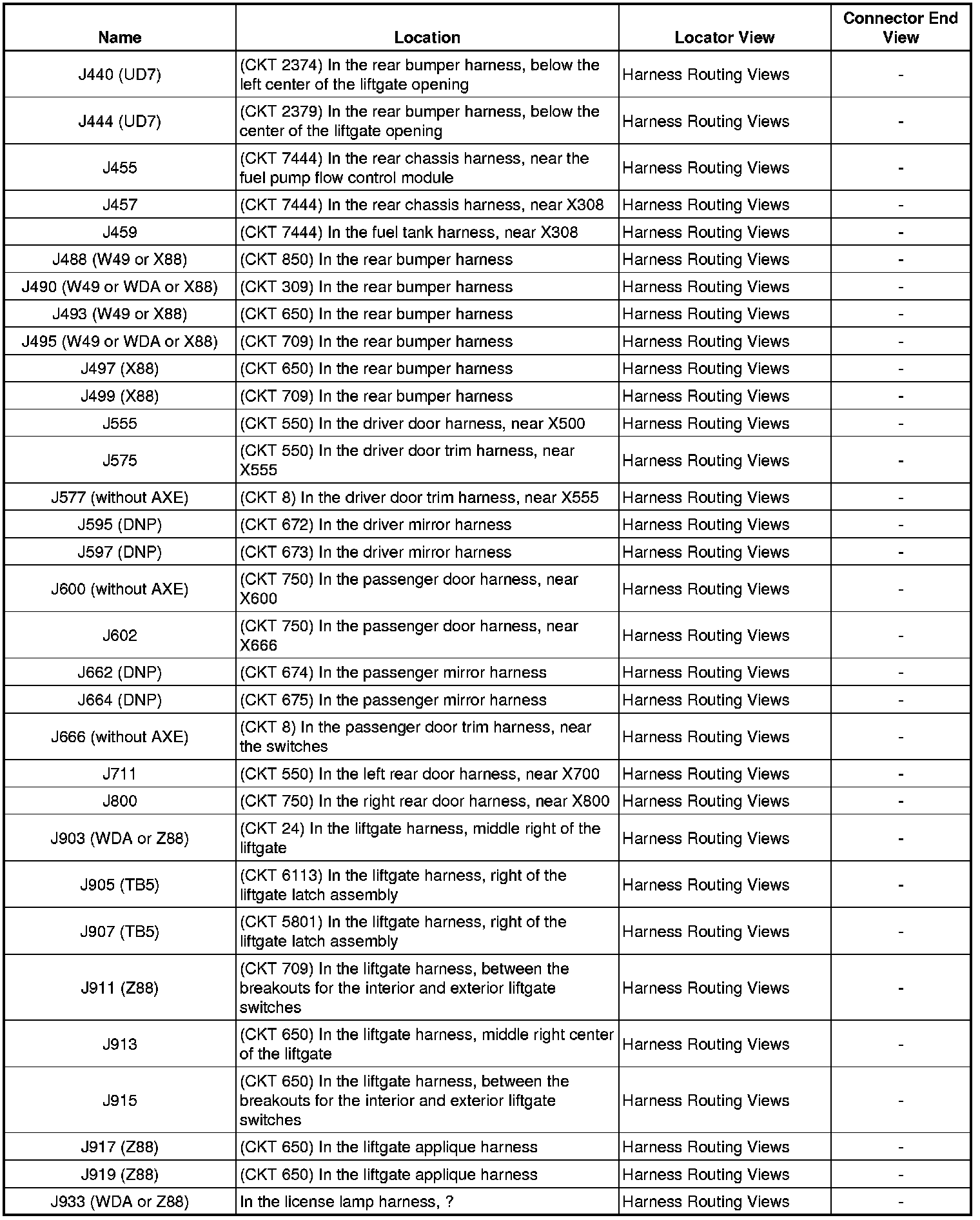

J440 - J933:





J935 - JX405:
