Cruise Control Schematics

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

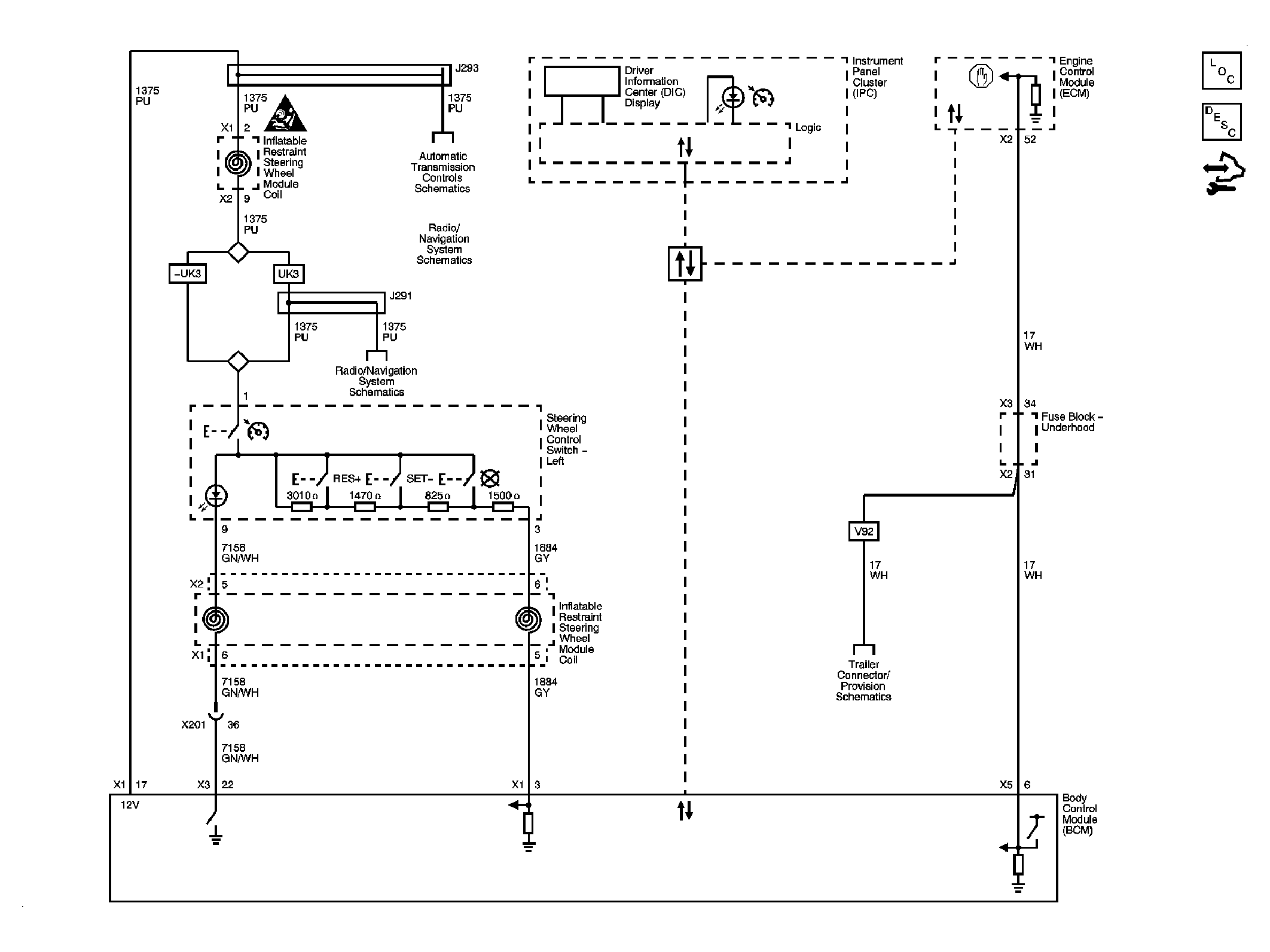

Fig 1: Cruise Control Circuit Schematic
GM2077904Courtesy of GENERAL MOTORS CORP.
