Access Cover: Service and Repair

Engine Cover Replacement

Removal Procedure

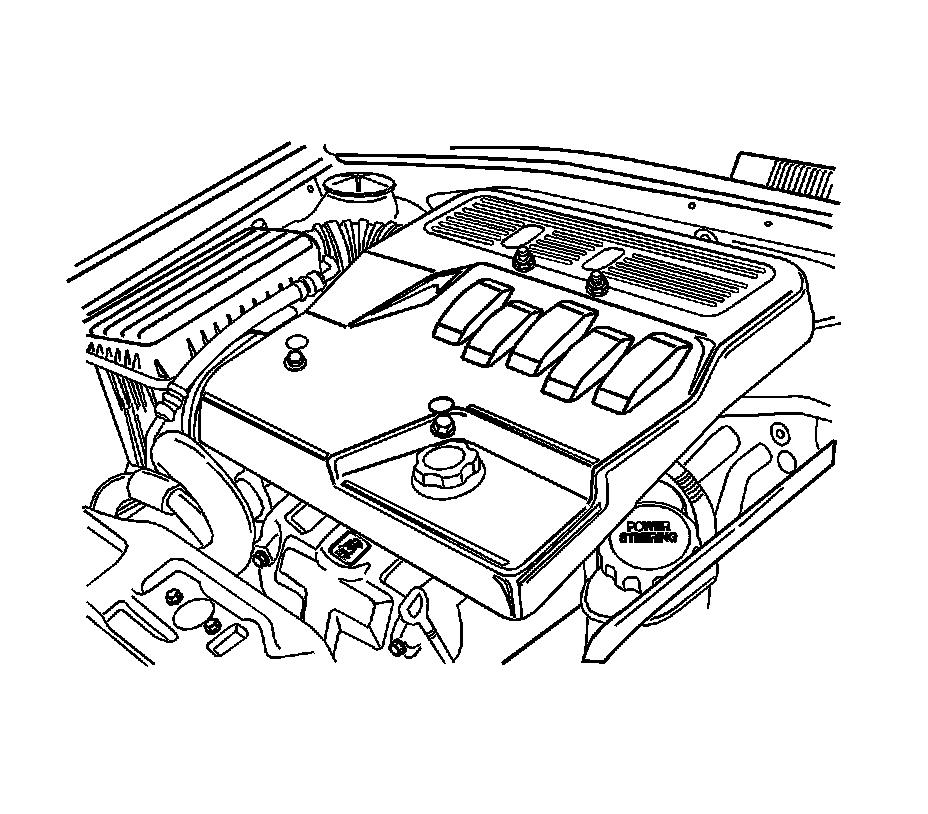

1. Remove the bolts and nuts from the engine cover.
2. Remove the engine cover.

Installation Procedure




1. Position the engine cover on the engine.

Caution: Refer to Fastener Caution (Fastener Caution).

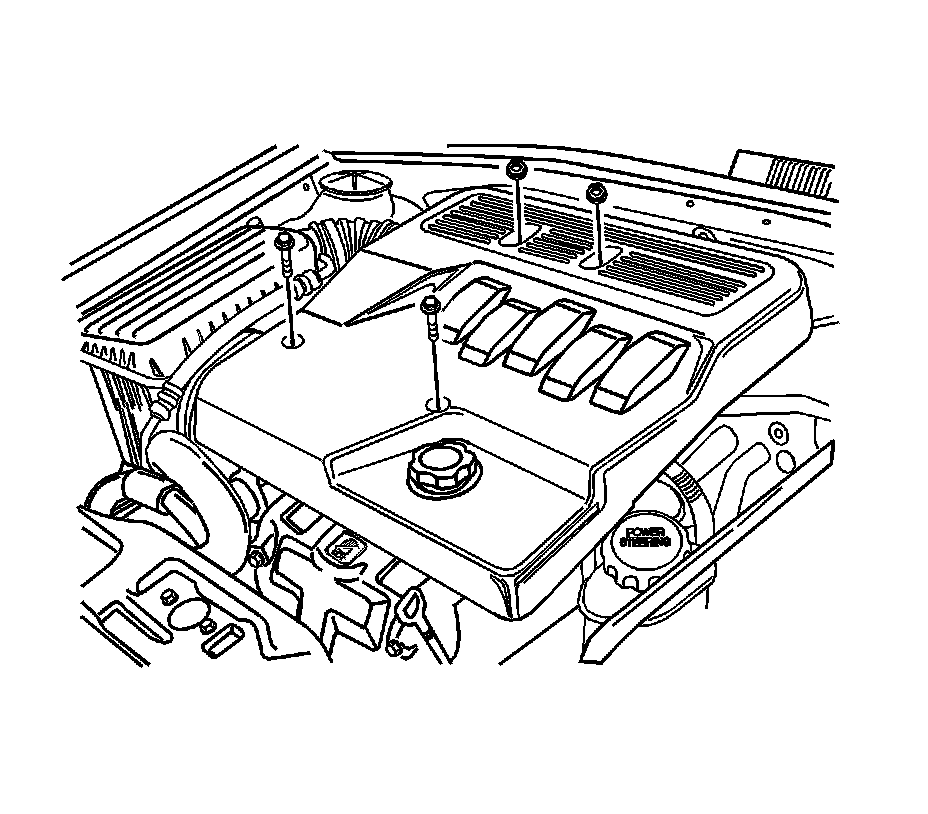

2. Install the engine cover bolts and nuts.

Tighten the engine cover bolts and nuts to 10 Nm (89 lb ft).
