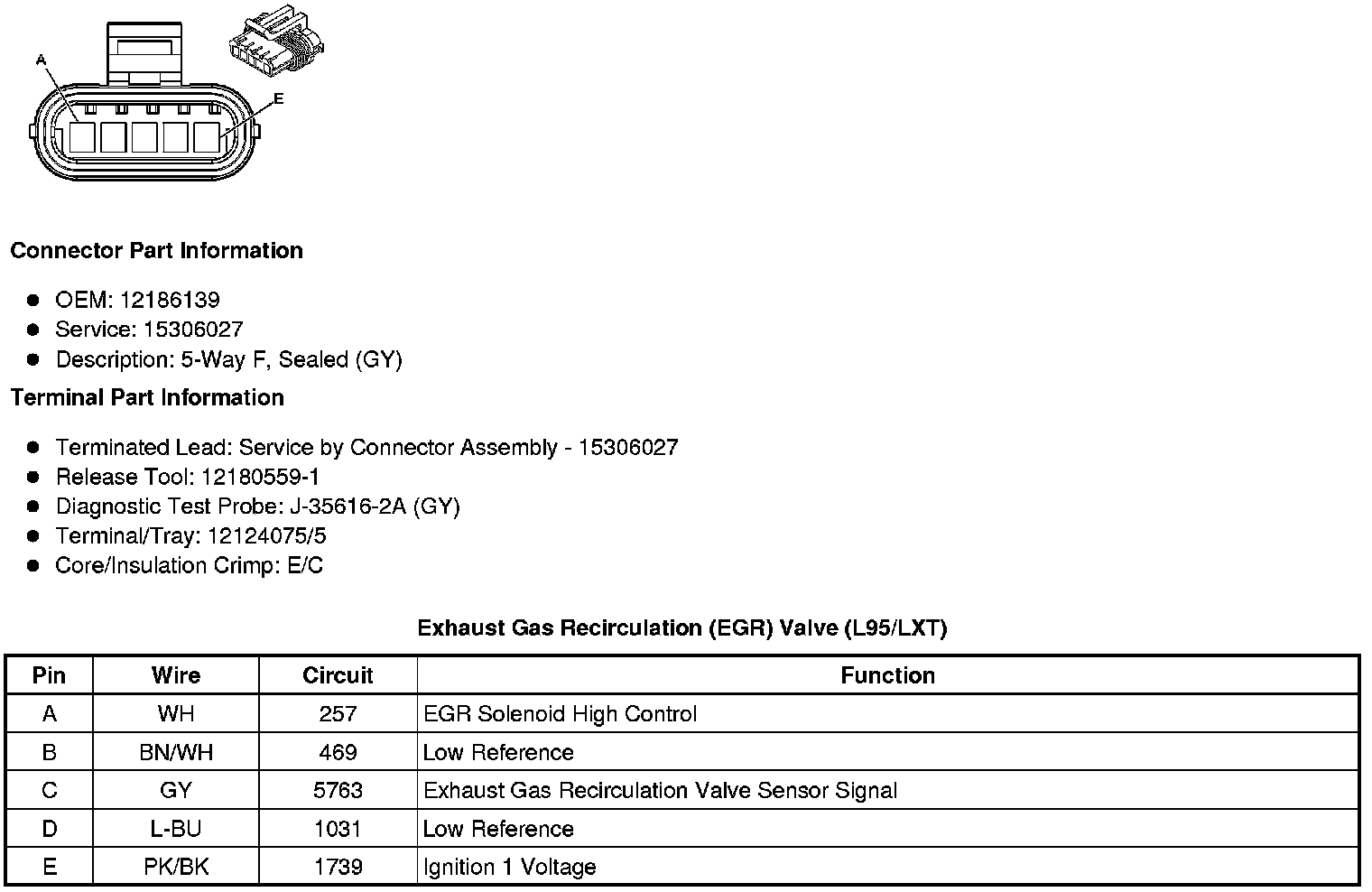

Exhaust Gas Recirculation
Component Connector End Views
Exhaust Gas Recirculation (EGR) Valve (L95/LXT)
