Fuel Injector




Component Connector End Views

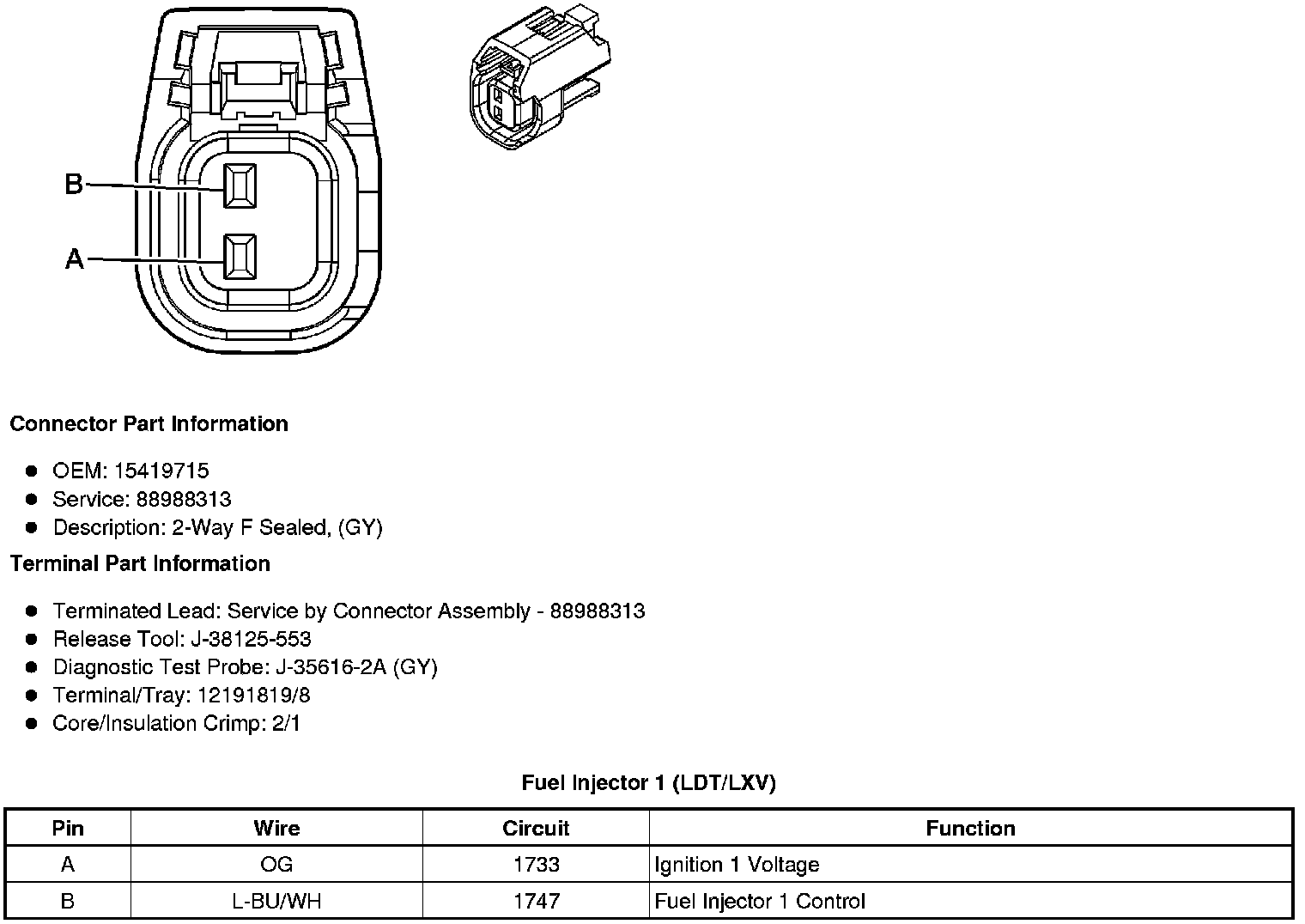

Fuel Injector 1 (LDT/LXV)





Fuel Injector 1 (L95/LXT with NT3)

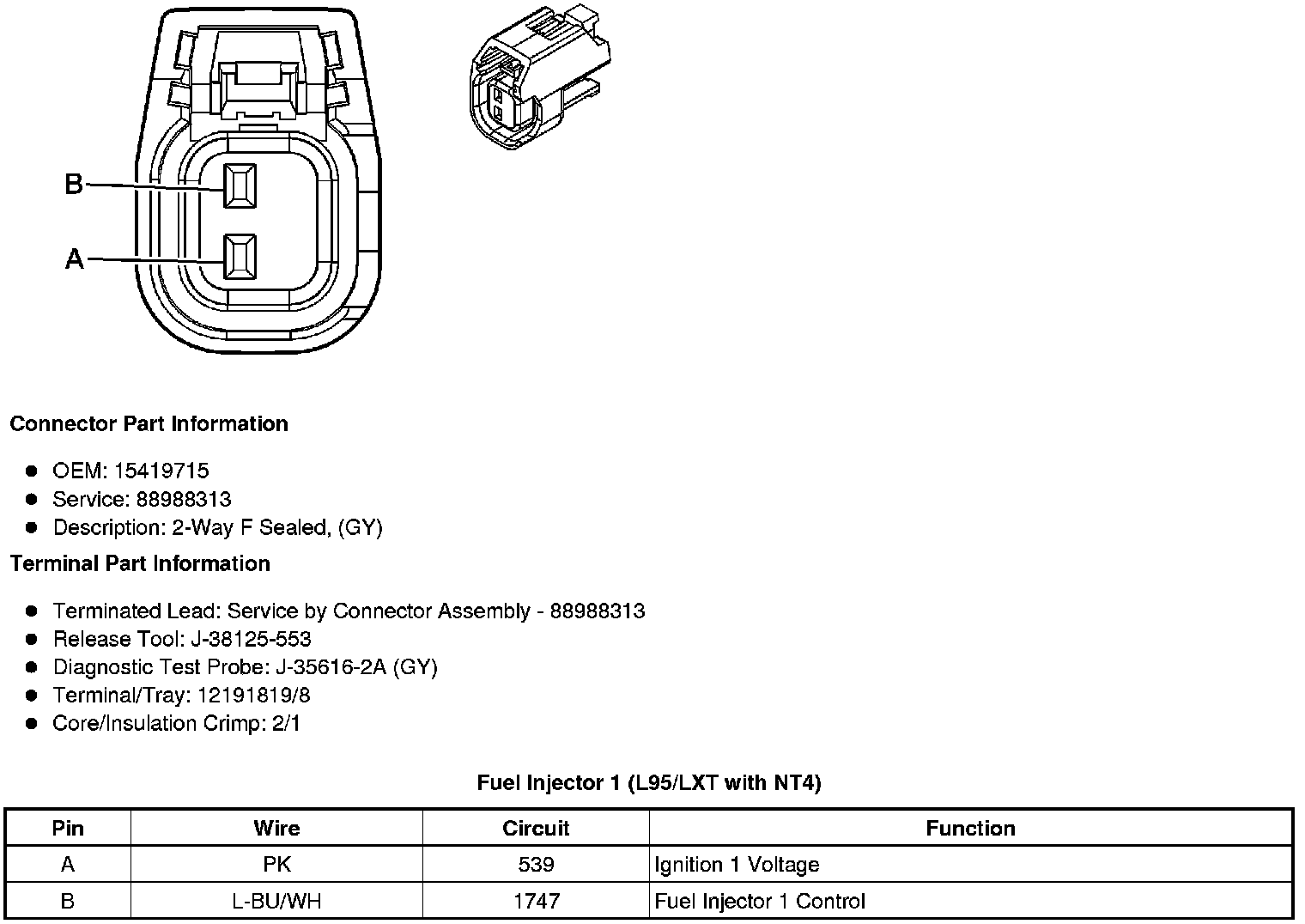

Fuel Injector 1 (L95/LXT with NT4)

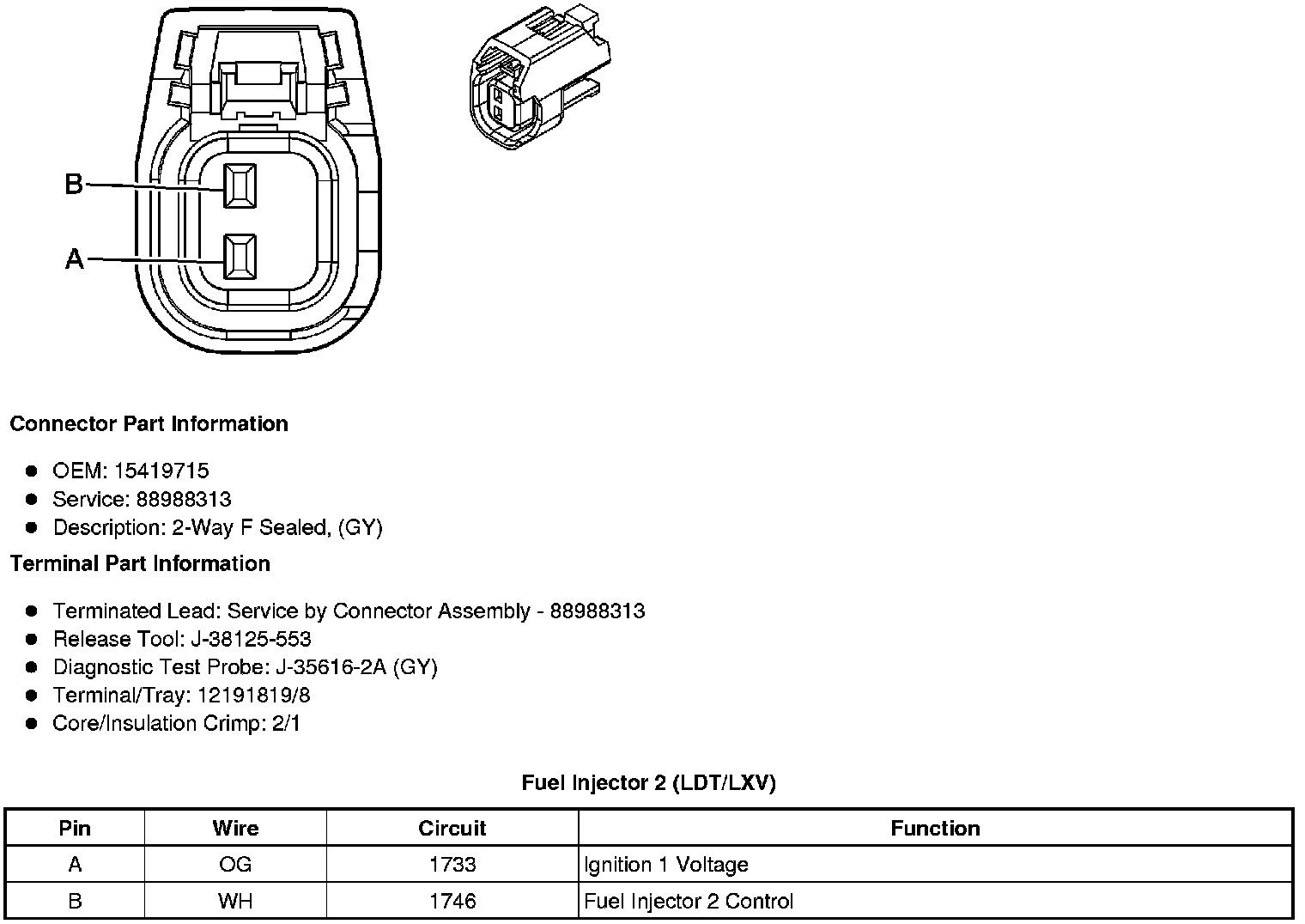

Fuel Injector 2 (LDT/LXV)





Fuel Injector 2 (L95/LXT with NT3)

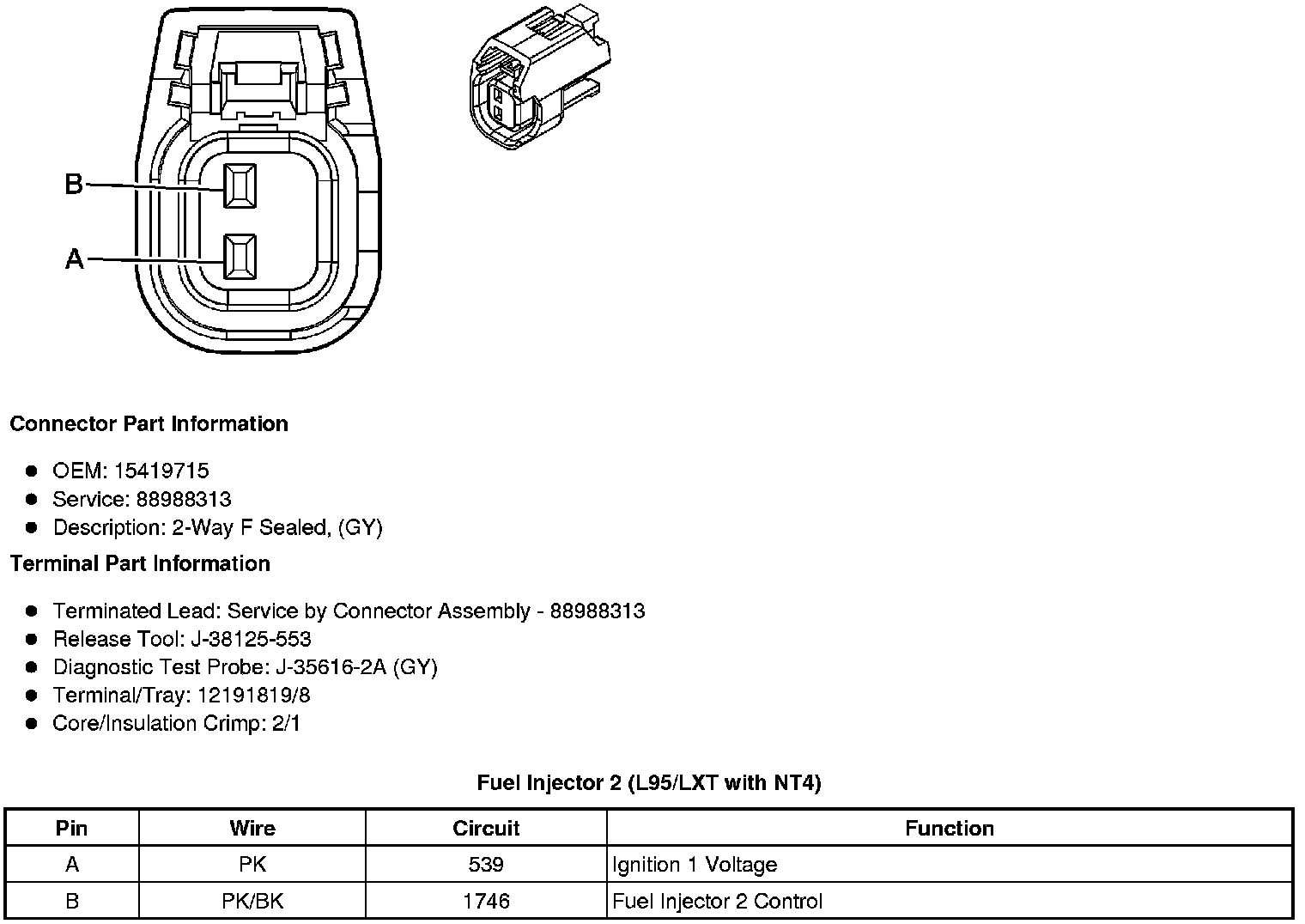

Fuel Injector 2 (L95/LXT with NT4)





Fuel Injector 3 (LDT/LXV)





Fuel Injector 3 (L95/LXT with NT3)





Fuel Injector 3 (L95/LXT with NT4)





Fuel Injector 4 (LDT/LXV)





Fuel Injector 4 (L95/LXT with NT3)





Fuel Injector 4 (L95/LXT with NT4)
