Power Window Switch
>>
Window Switch - Driver (A32)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

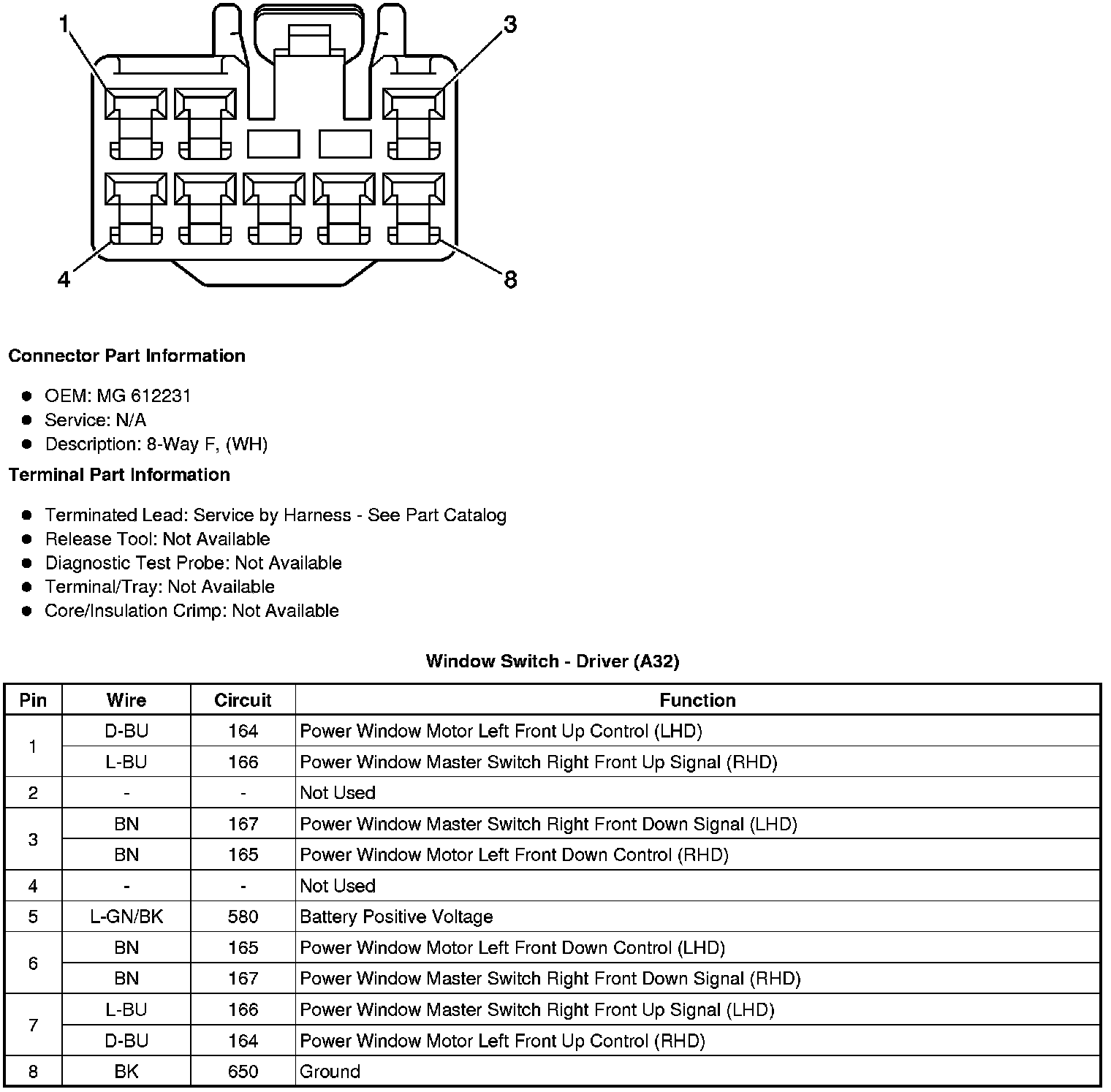

Window Switch - Driver (A32)
Component Connector End Views
Window Switch - Driver (A32)
