Instrument Panel Fuse Block

Instrument Panel Fuse Block






The instrument panel fuse block is located on the end of the instrument panel, on the driver side of the vehicle. To access the fuses, open the fuse panel door by pulling out.

To reinstall the door, push the door back into its original location.

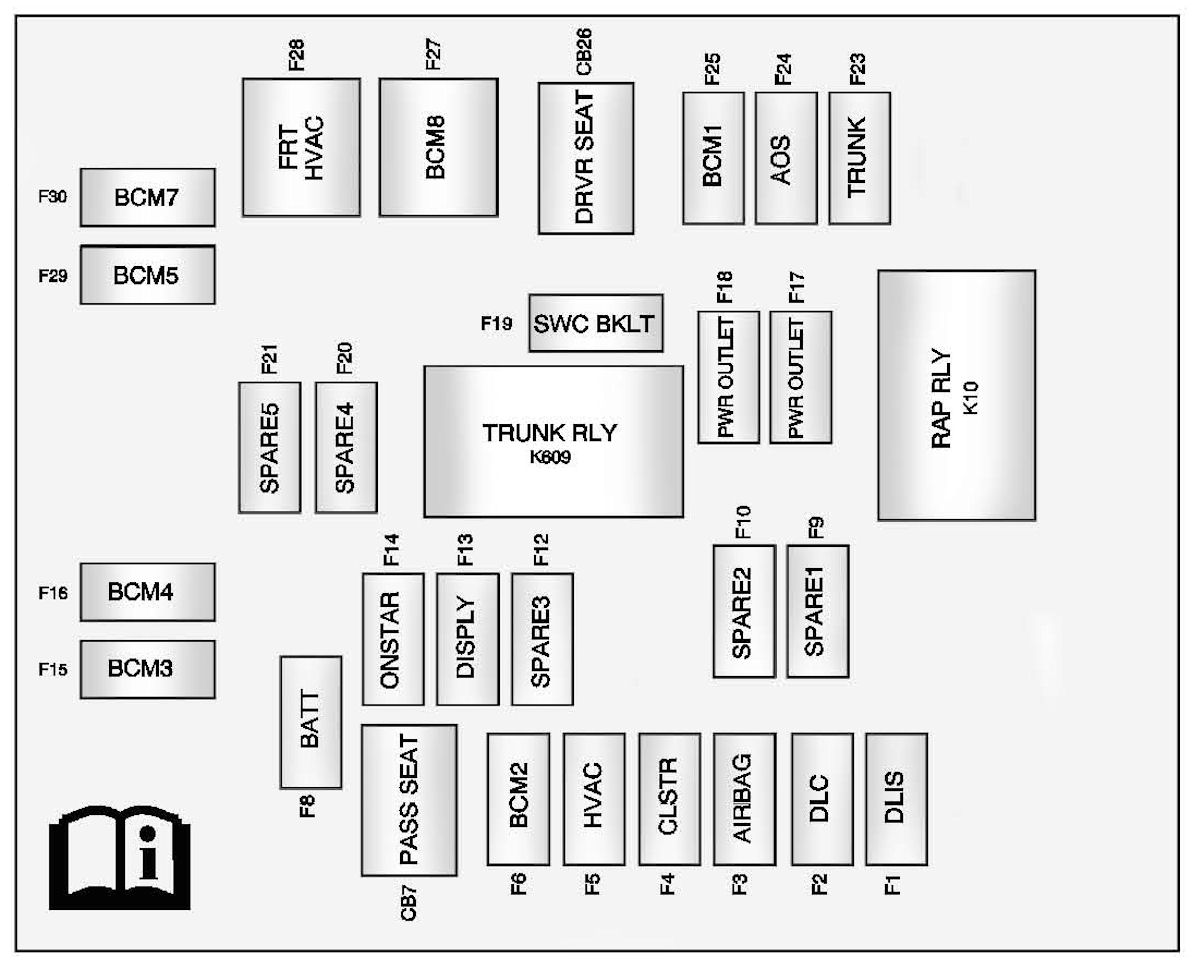

Instrument Panel Fuse Block

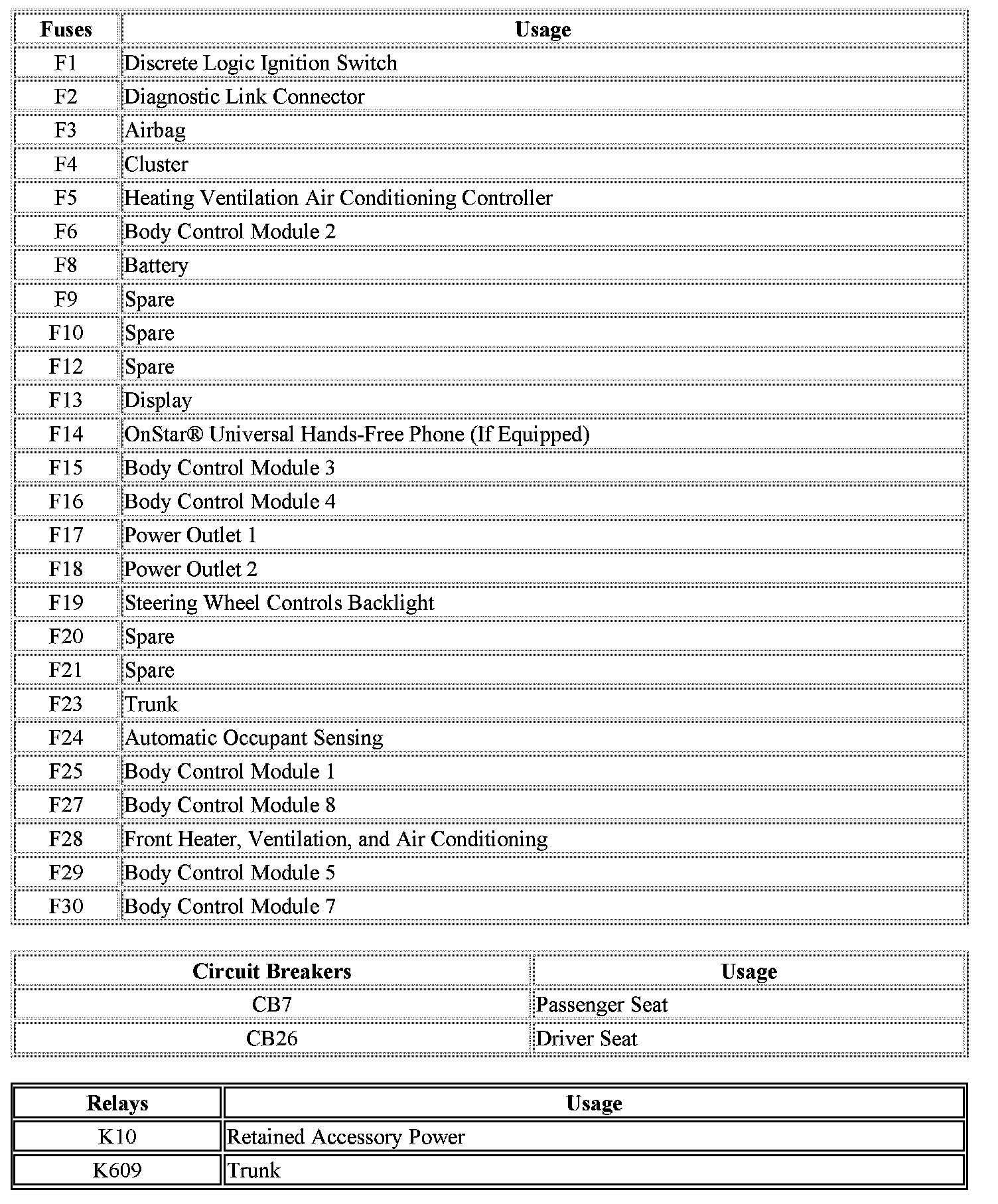

The vehicle may not be equipped with all of the fuses, relays, and features shown.
