Fuse Block - Rear Body




Electrical Center Identification Views

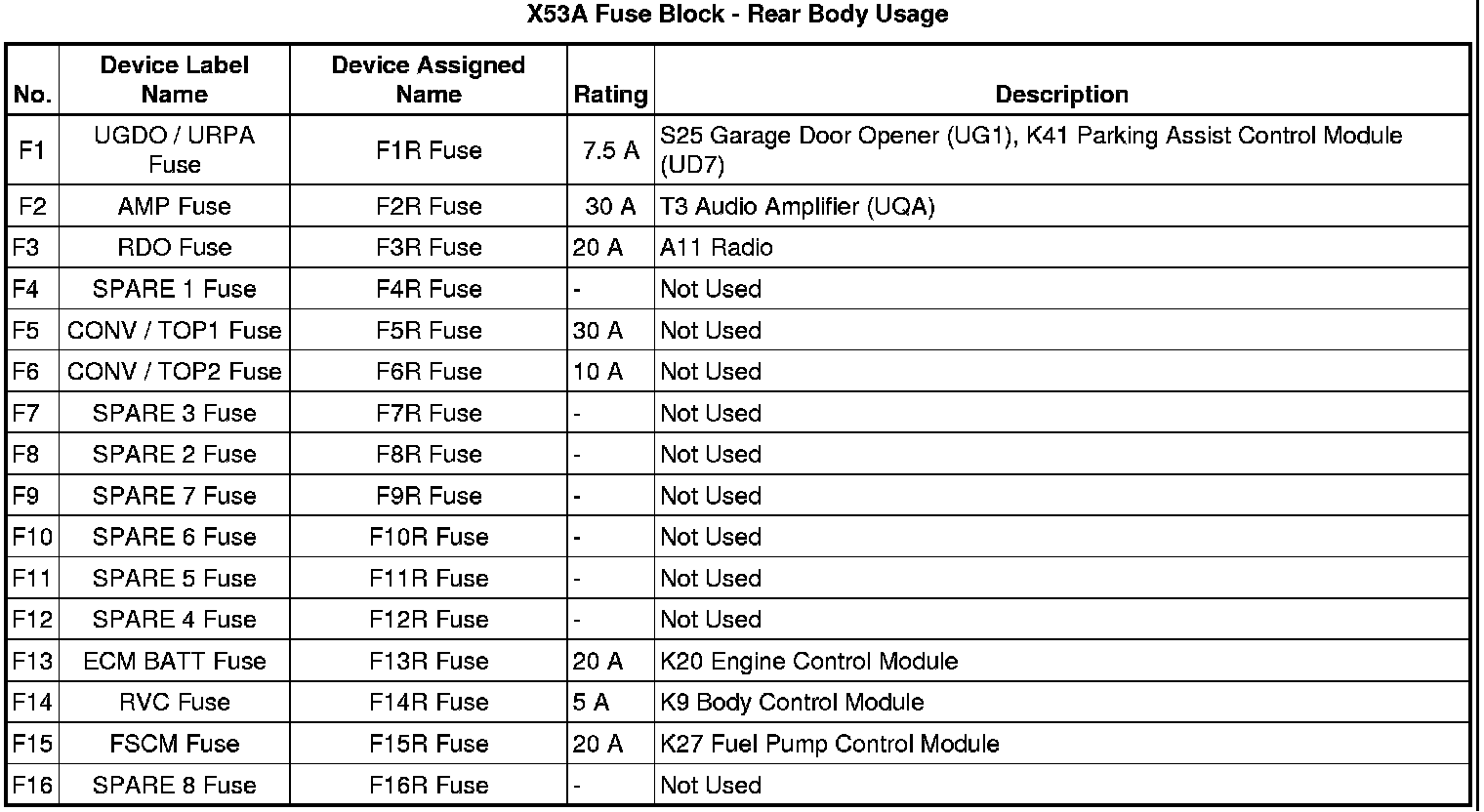

X53A Fuse Block - Rear Body Label









X53A Fuse Block - Rear Body Top View





X53A Fuse Block - Rear Body Bottom View

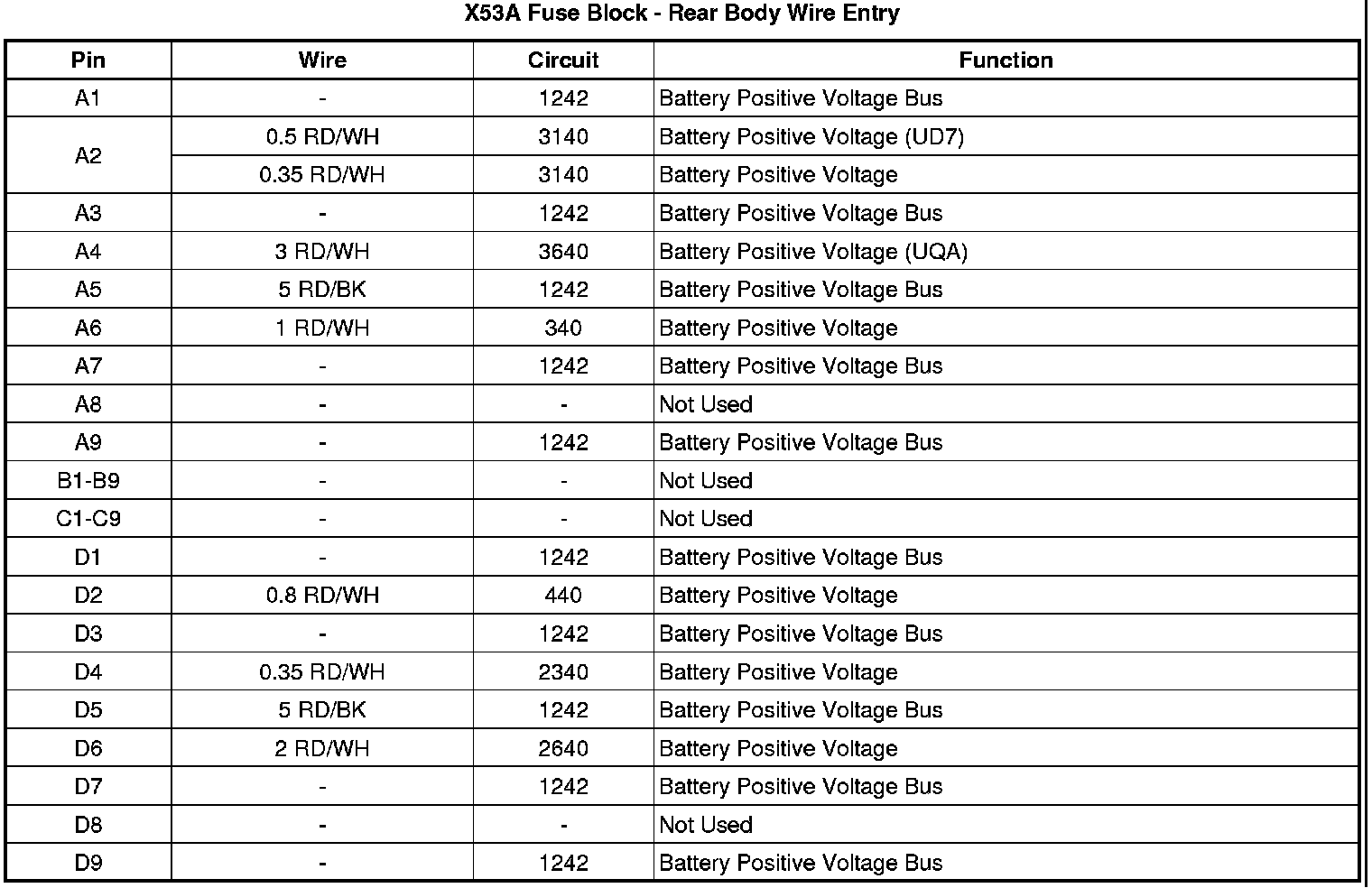

X53A Fuse Block - Rear Body Wire Entry
