Air Flow Meter/Sensor: Diagrams




Component Connector End Views

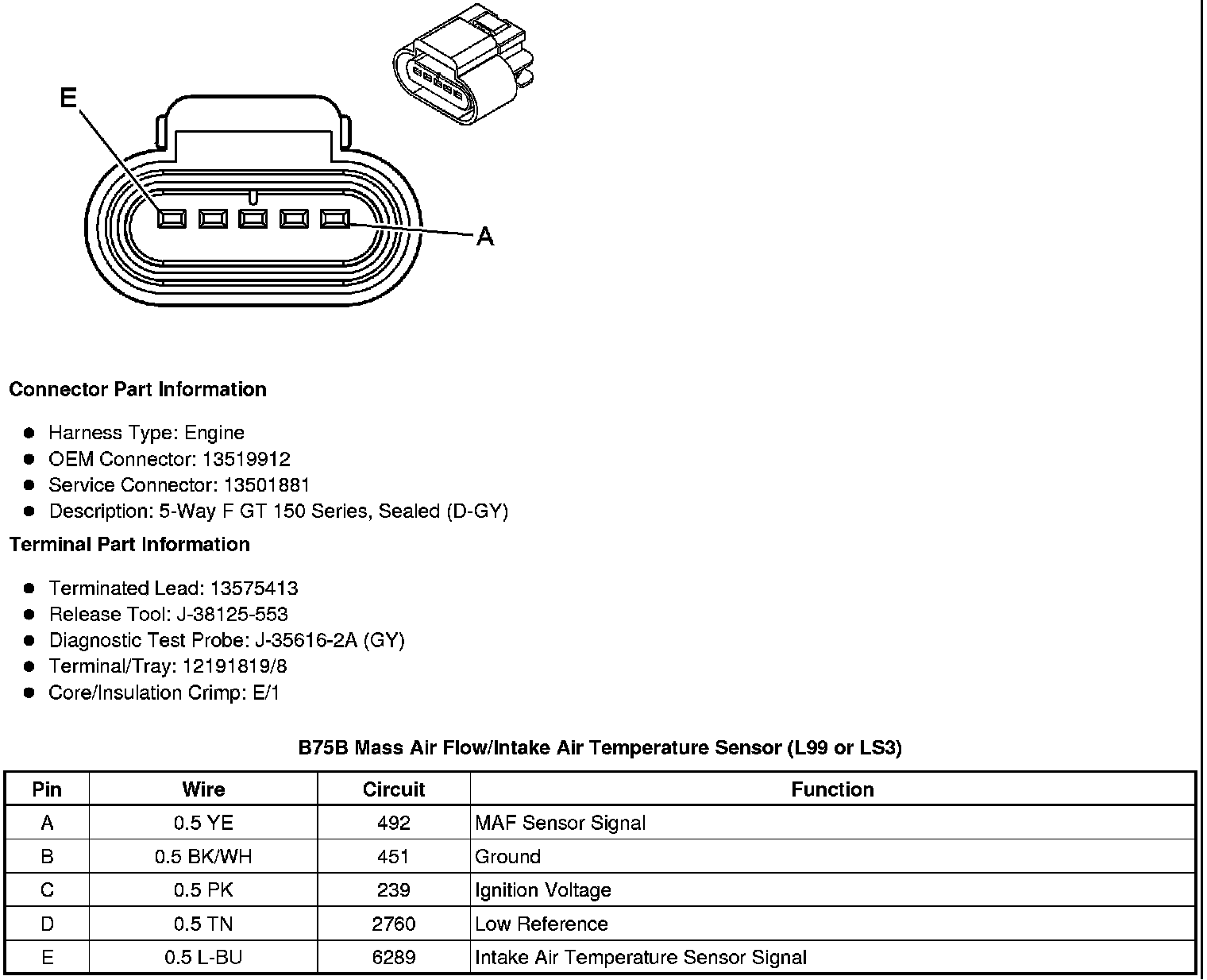

B75B Mass Air Flow/Intake Air Temperature Sensor (L99 or LS3)

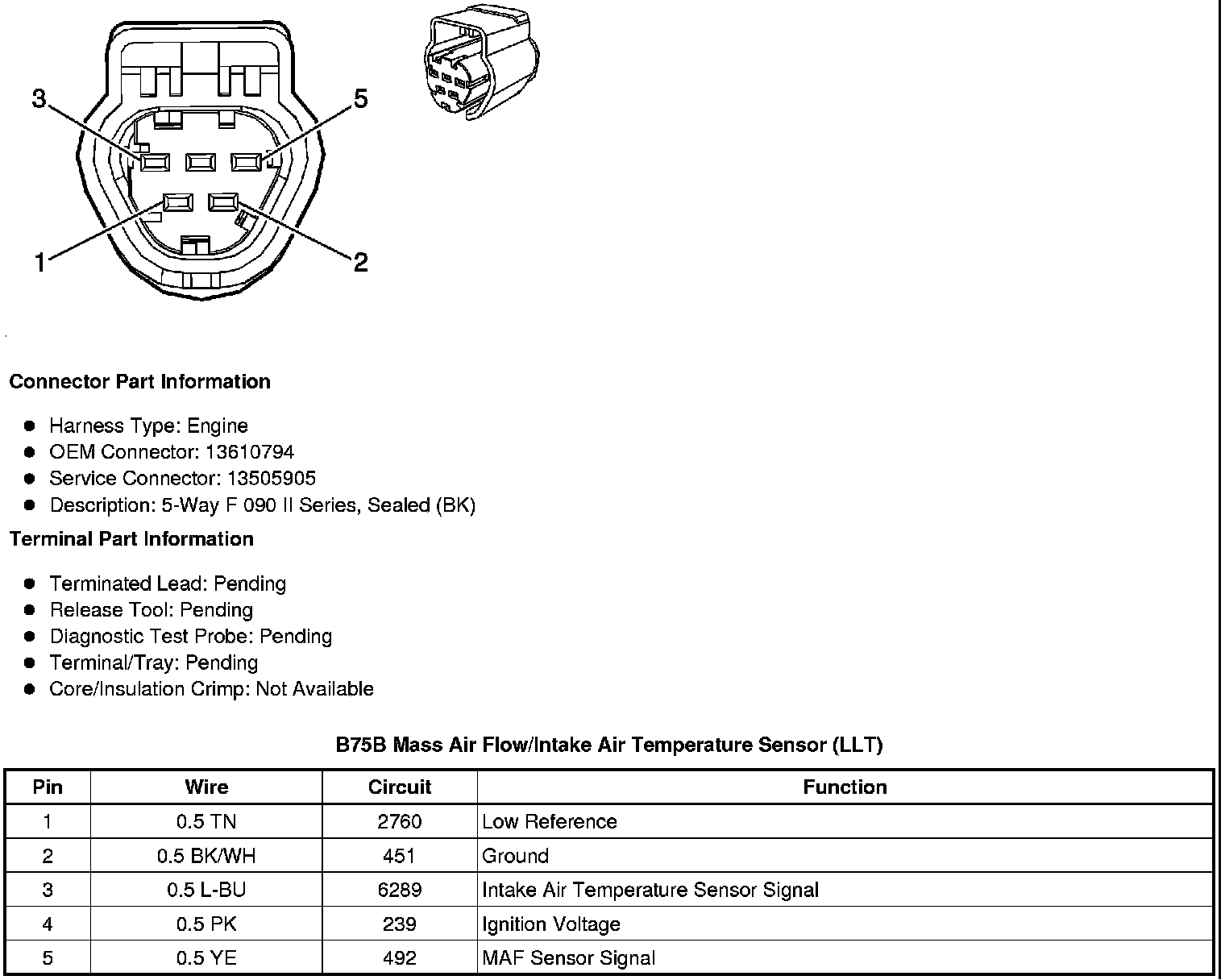

B75B Mass Air Flow/Intake Air Temperature Sensor (LLT)
