Ignition Relay: Locations

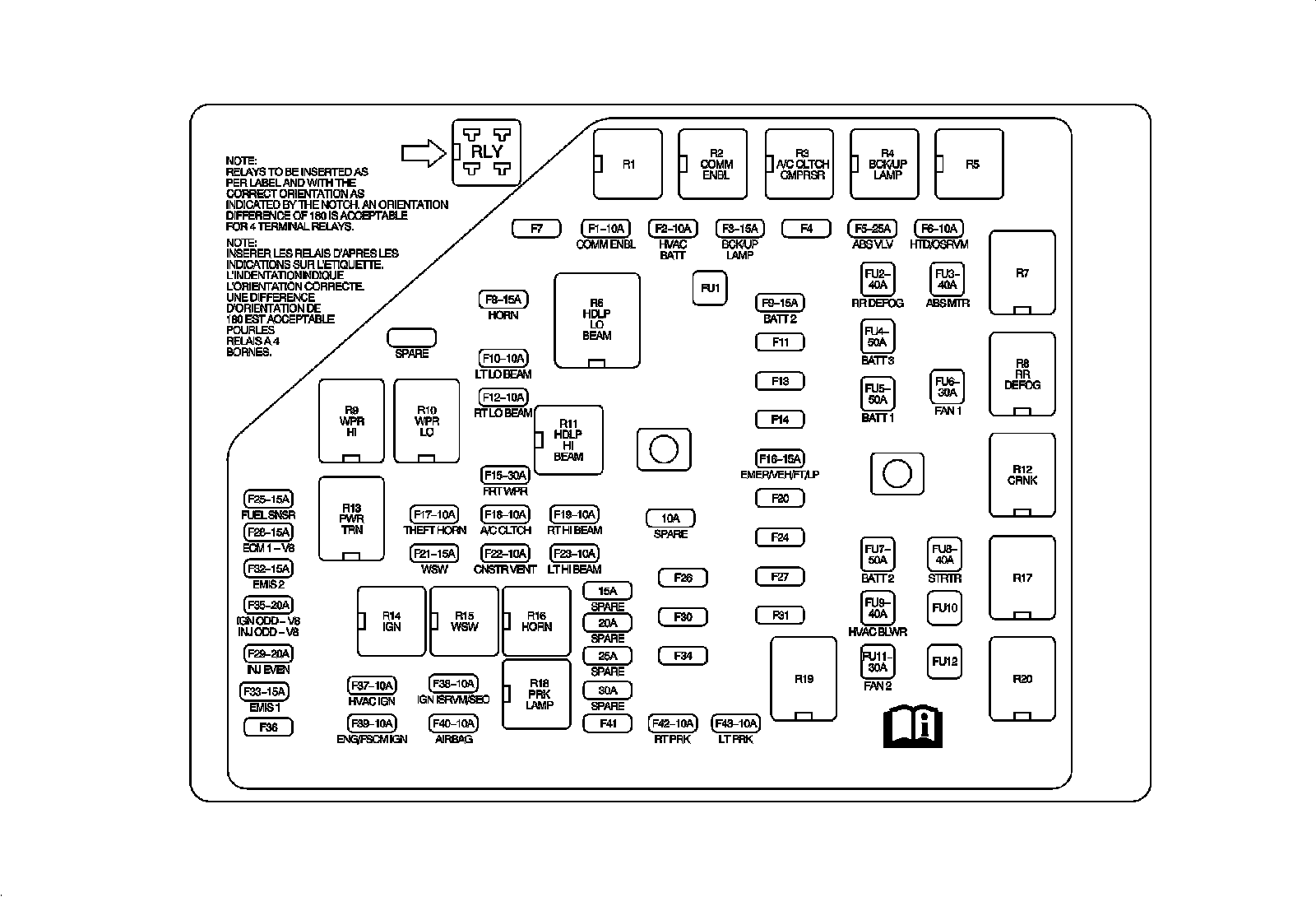

Electrical Center Identification Views

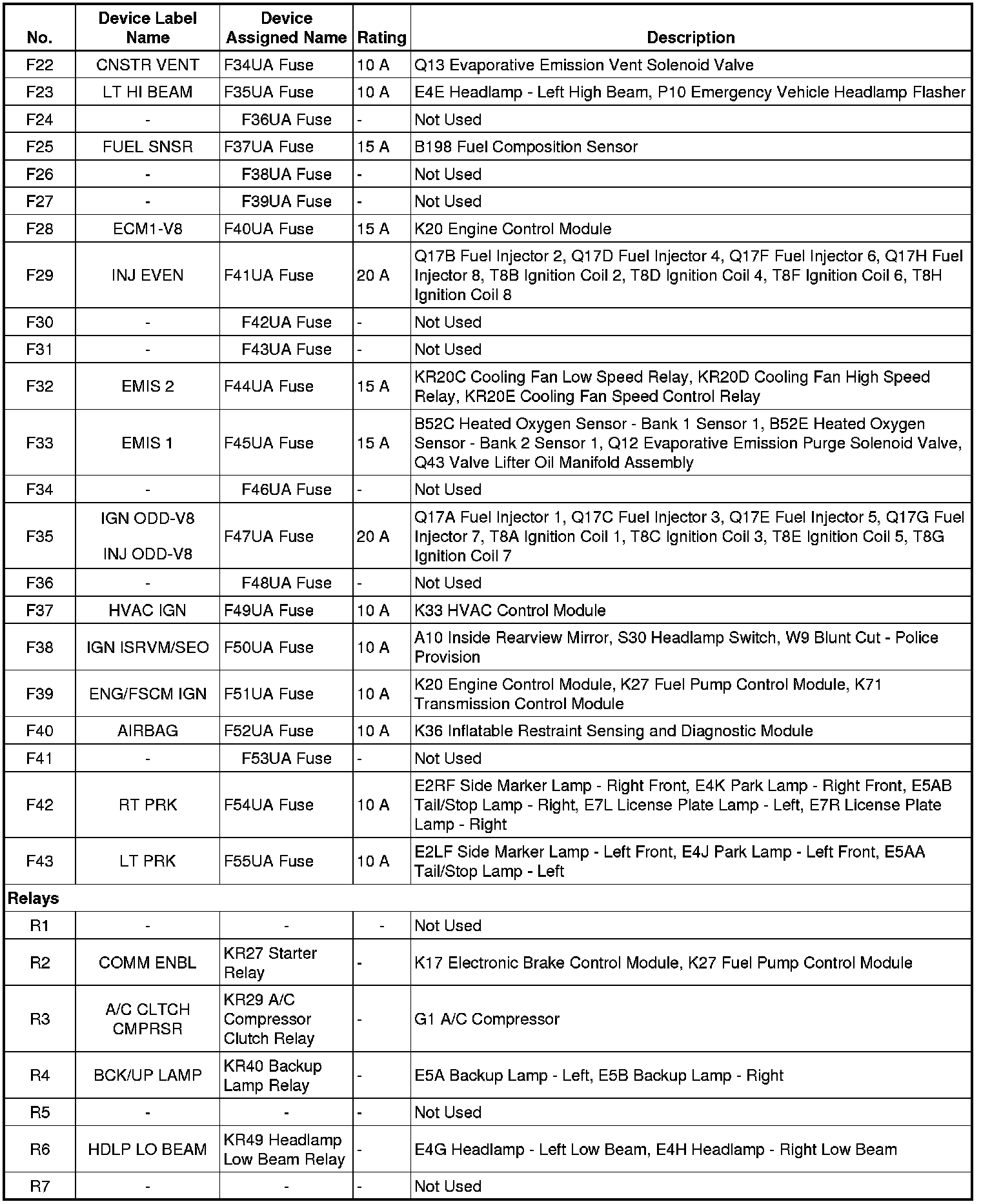

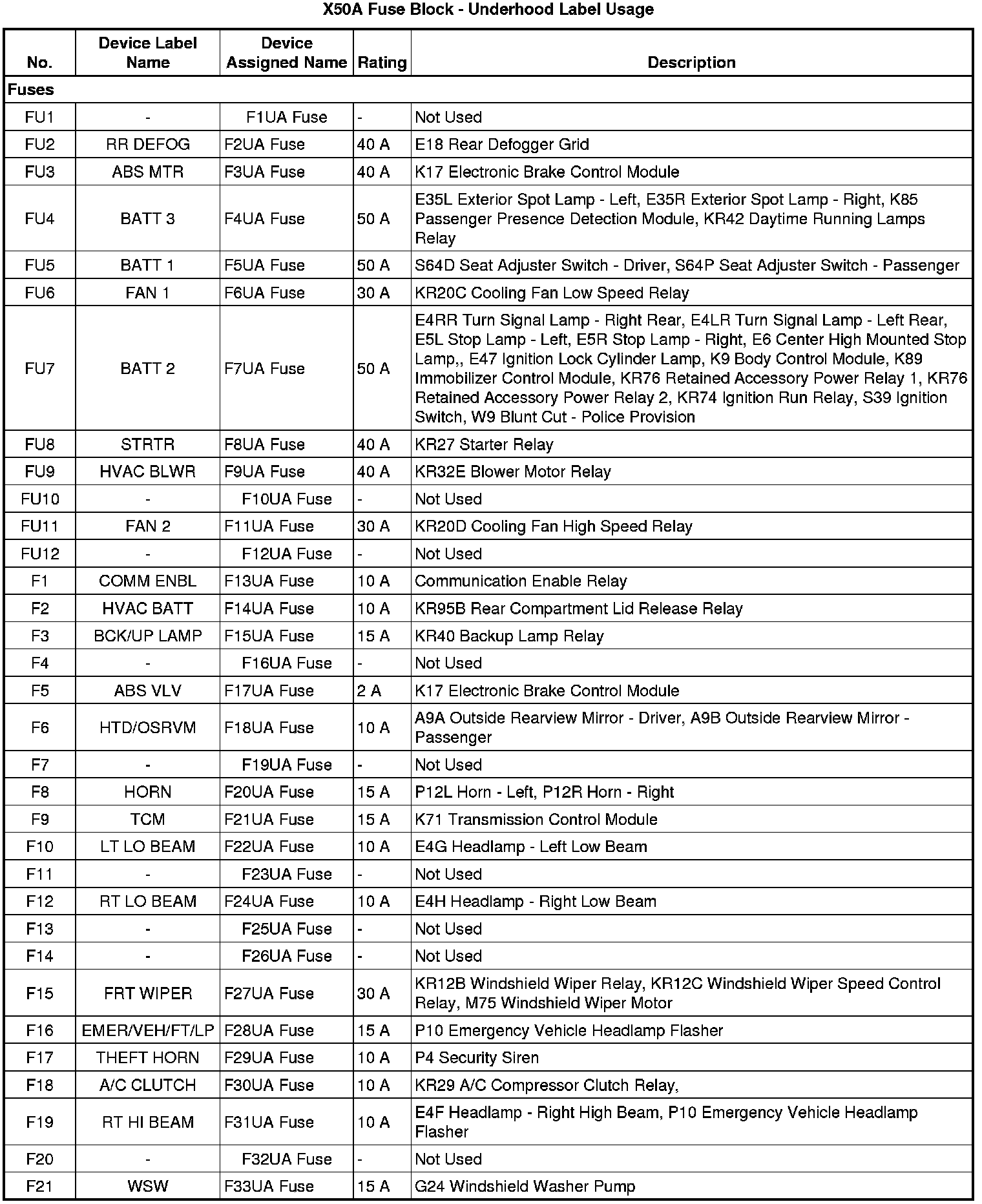

X50A Fuse Block - Underhood Label

R13 PWR TRN KR75 Engine Control Ignition Relay

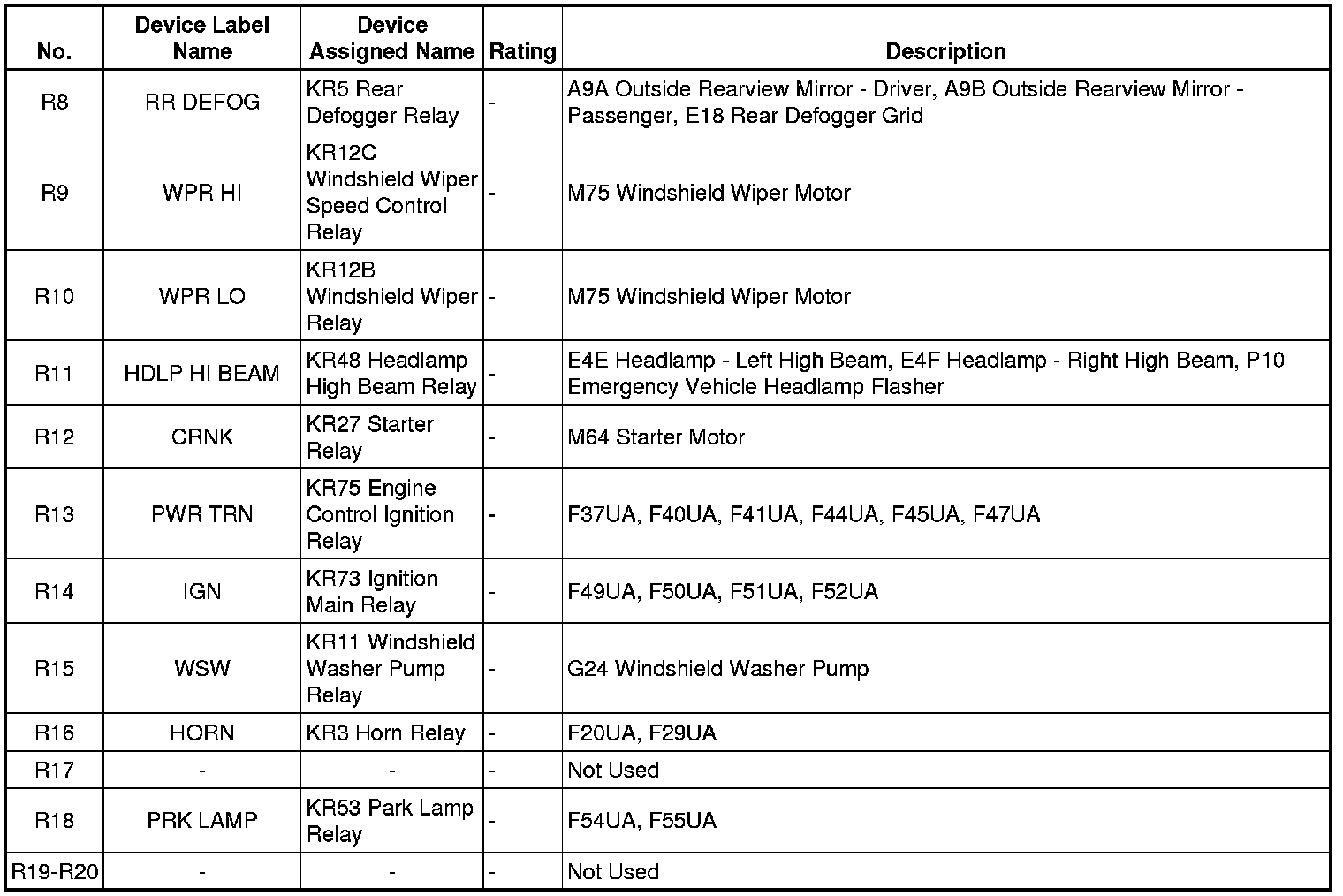

R14 IGN KR73 Ignition Main Relay
