Thread Repair Specifications (L98, L76, L77)




Thread Repair Specifications (L98, L76, L77)

Engine Block - Front/Rear Views

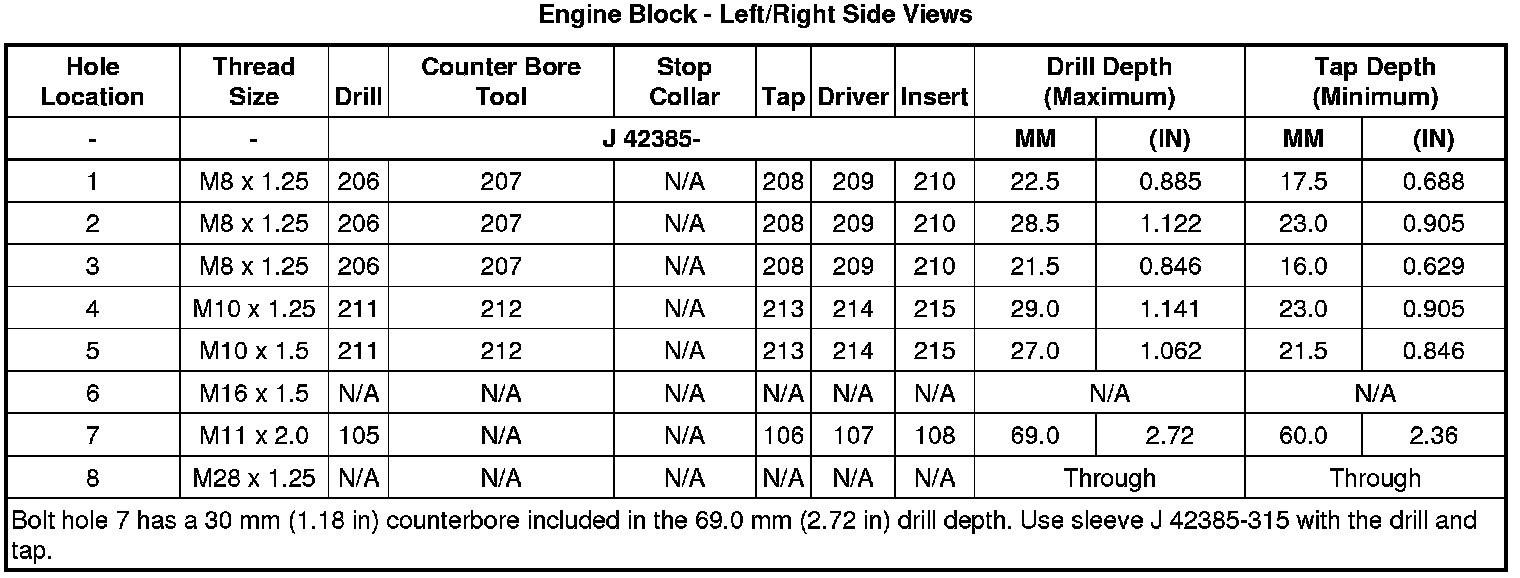

Engine Block - Left/Right Side Views

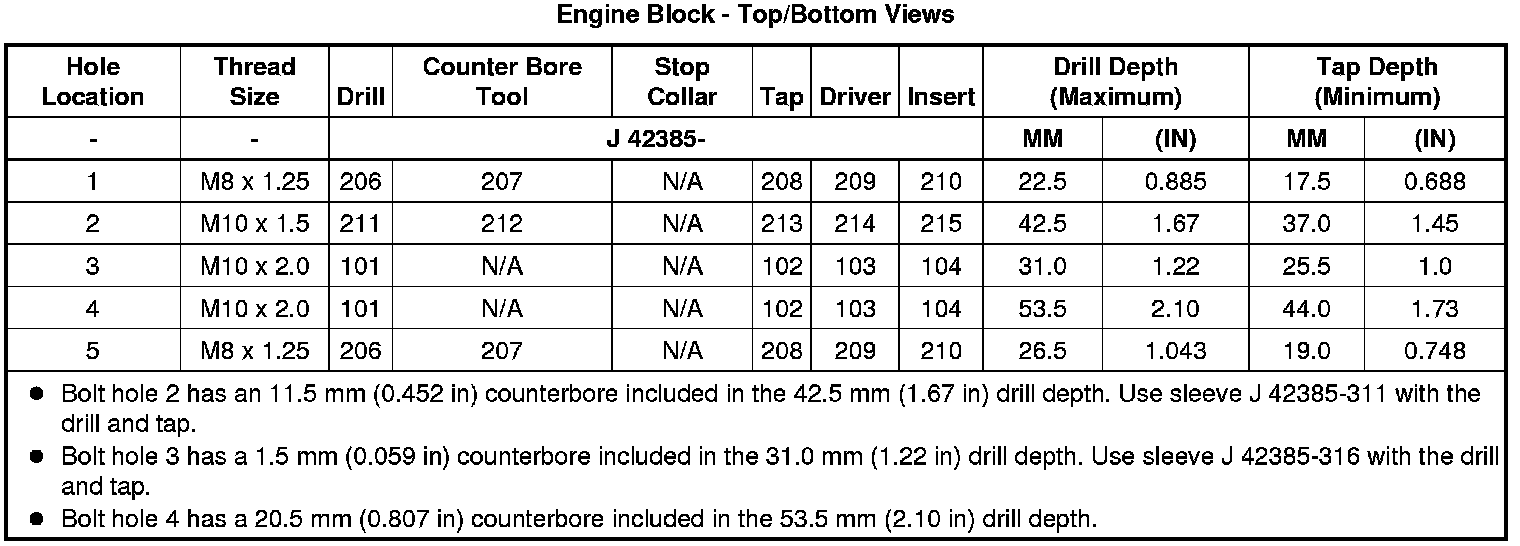

Engine Block - Top/Bottom Views










Cylinder Head - Top/End Views










Cylinder Head - Intake/Exhaust Side Views
