Installation Procedure

    Fig 1: Identifying Rear Insulator Hanger To Rear Muffler
    GM1965575Courtesy of GENERAL MOTORS CORP.
  1. Install the rear insulator hanger (1) to the rear muffler (2).

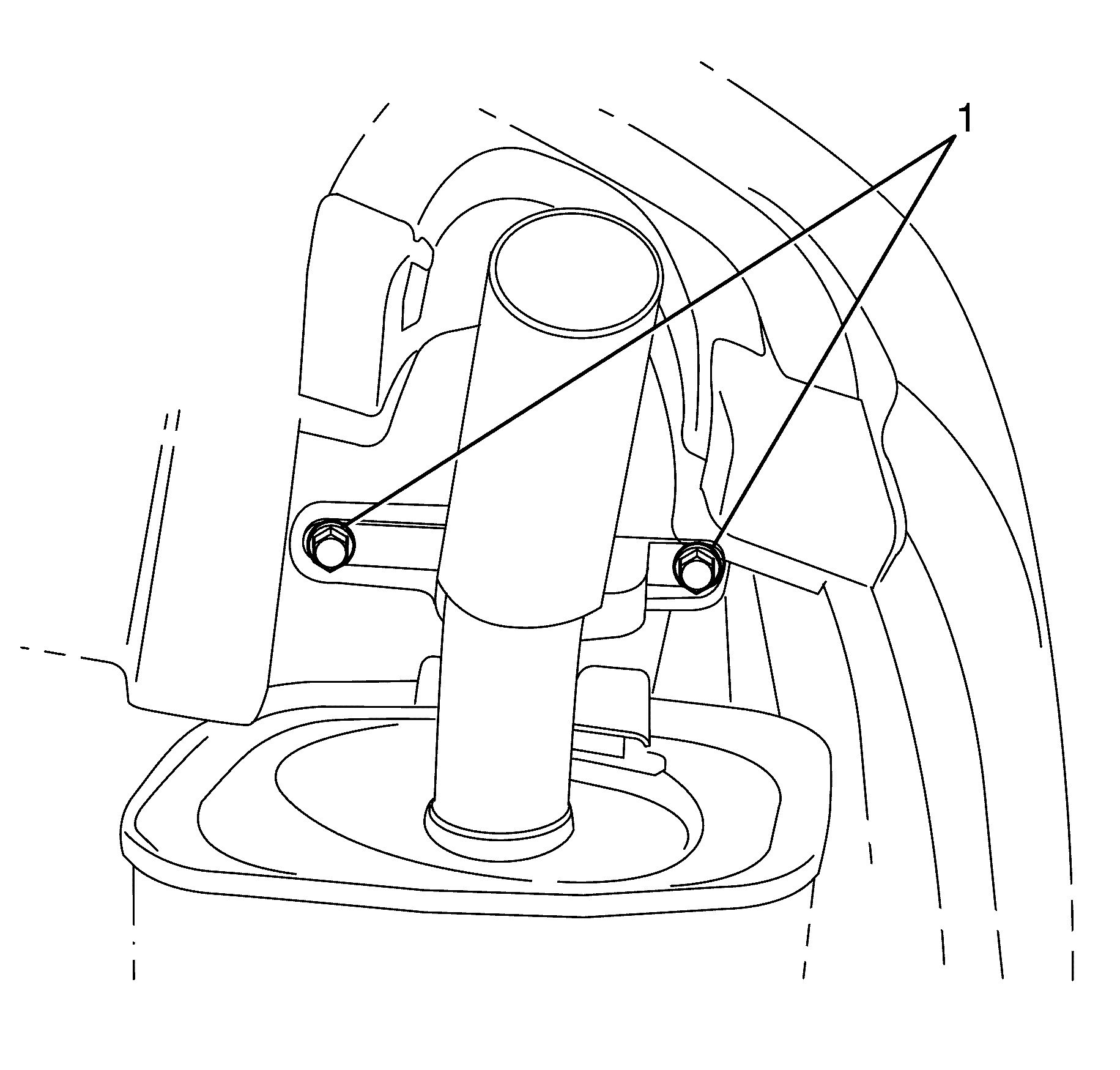

    2. Fig 2: Identifying Rear Insulator Hanger To Body Retaining Bolts
    GM1949717Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  2. Install the rear insulator hanger to body retaining bolts (1).

    Tighten

    Tighten the bolts to 26 N.m (19 lb ft).
