Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

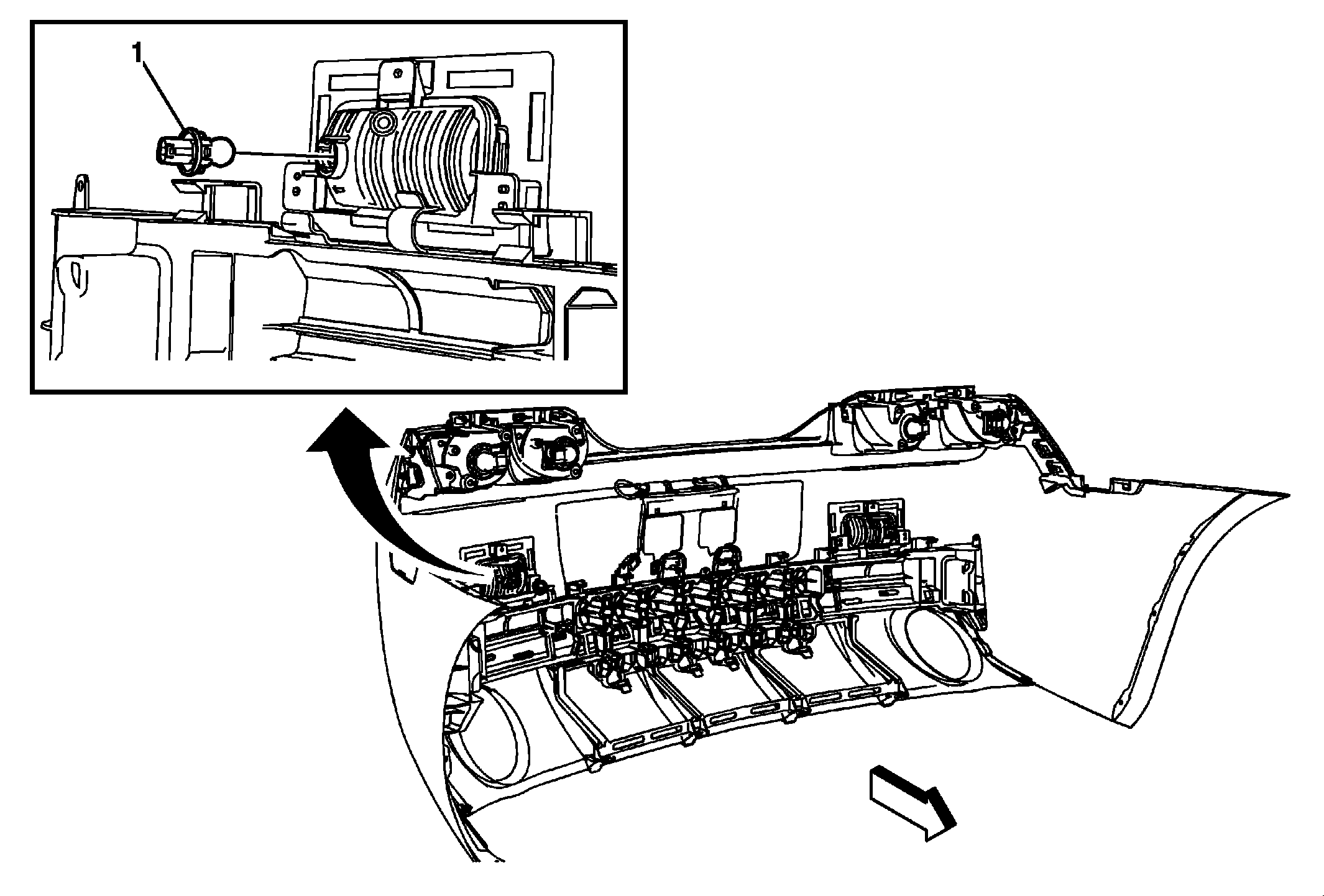

Fig 1: Backup Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Back Up Lamp Bulb WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical harness connector to the bulb socket. Rotate the bulb socket counter-clockwise. Remove and discard the bulb socket.

Callout

Component Name

Preliminary Procedure:
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Back Up Lamp Bulb

WARNING: Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical harness connector to the bulb socket.
Rotate the bulb socket counter-clockwise.
Remove and discard the bulb socket.
