Backup Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

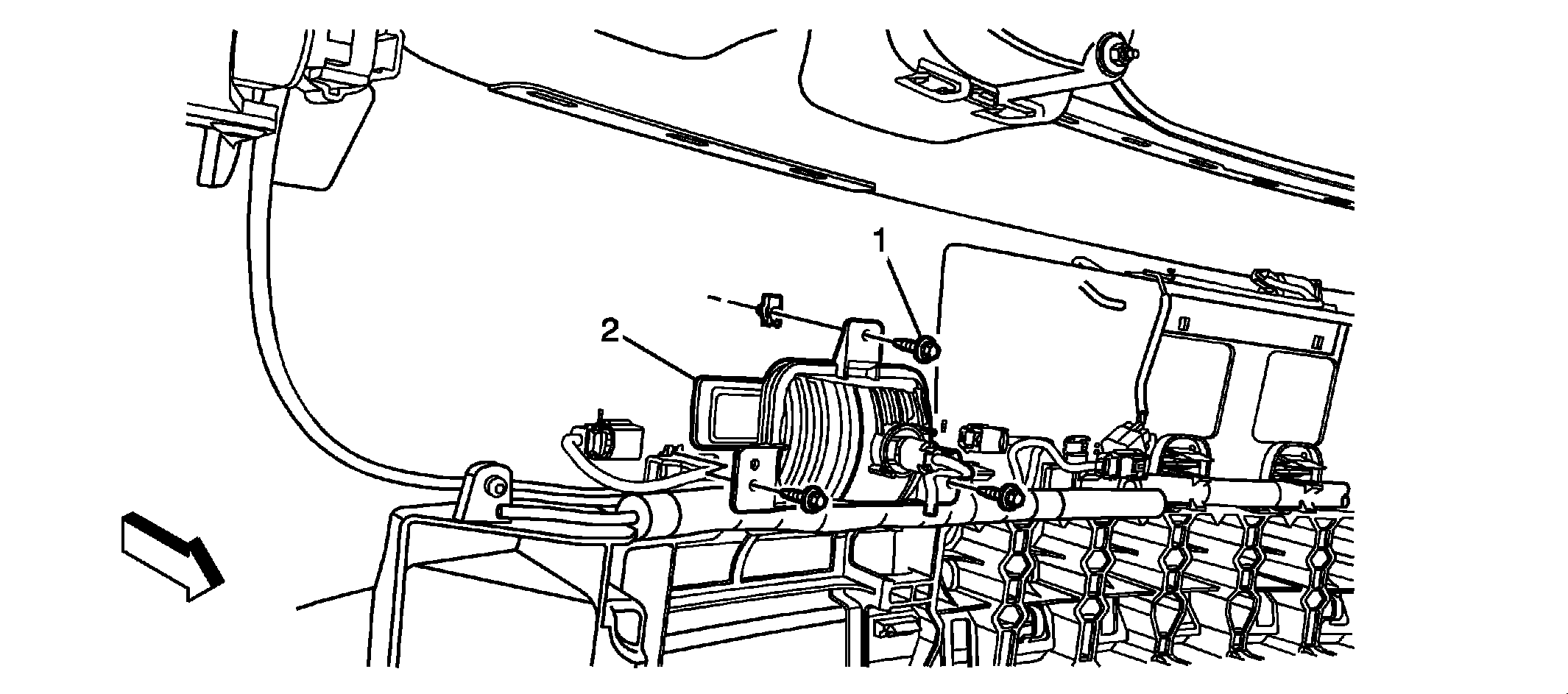

Fig 1: Backup Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . Disconnect the electrical connector bulb socket from the back up lamp.
1	Back Up Lamp Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tip: Flex the top of the rear bumper energy absorber in order to access the lower back up lamp screws. Tighten: 2.5 N.m (22 lb in)
2	Back Up Lamp

Callout

Component Name

Preliminary Procedures

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
Disconnect the electrical connector bulb socket from the back up lamp.

Back Up Lamp Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tip: Flex the top of the rear bumper energy absorber in order to access the lower back up lamp screws.

Tighten: 2.5 N.m (22 lb in)

Back Up Lamp
