Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

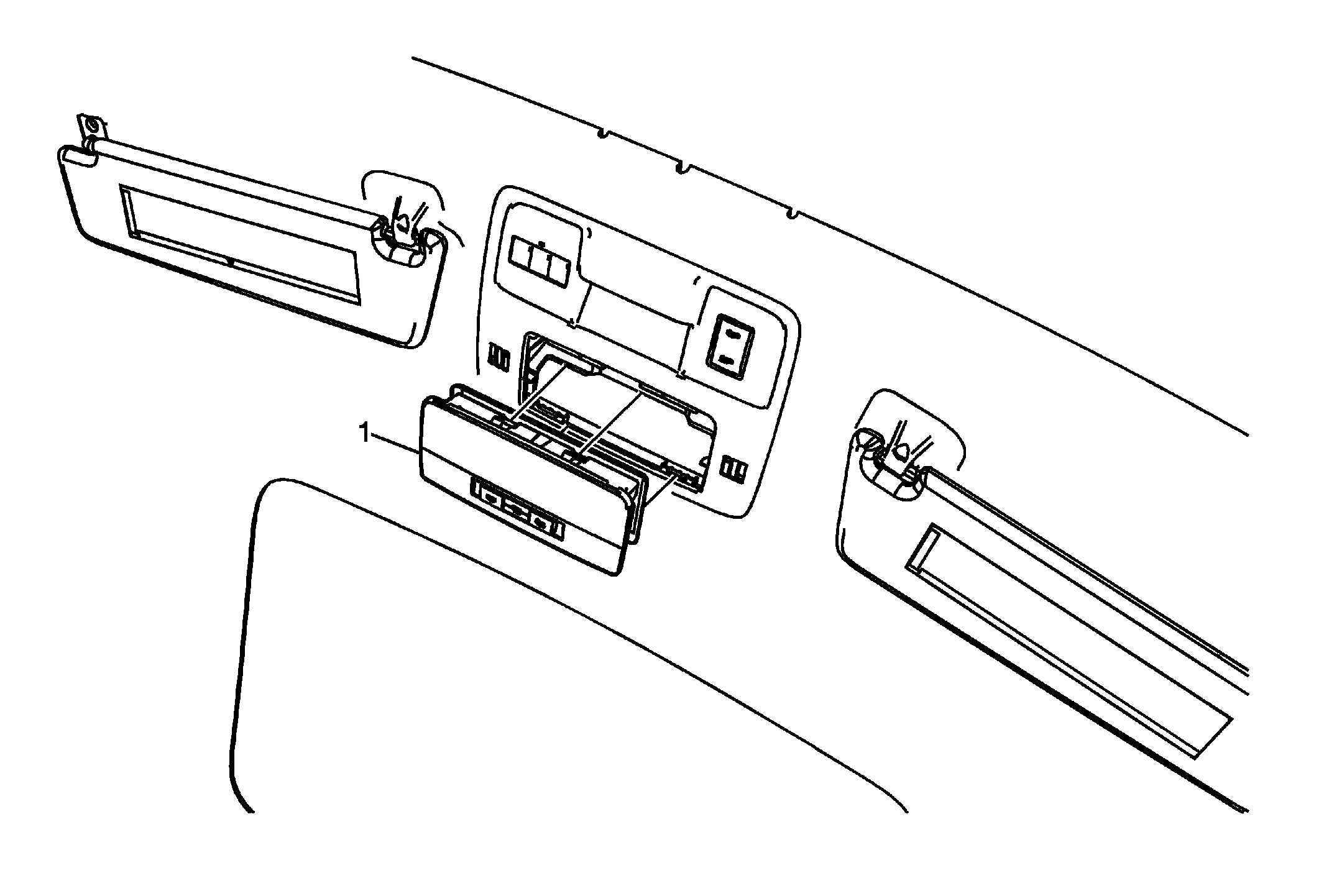

Fig 1: Courtesy Lamp
GM2195914Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the dome and reading lamp lens. Refer to Dome and Reading Lamp Lens Replacement
1 Courtesy Lamp

Procedure

  1. Insert a flat bladed plastic tool into slot. Depress the integral 2 tabs to remove the courtesy lamp from the roof console.
  2. Disconnect the electrical connector.
