Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

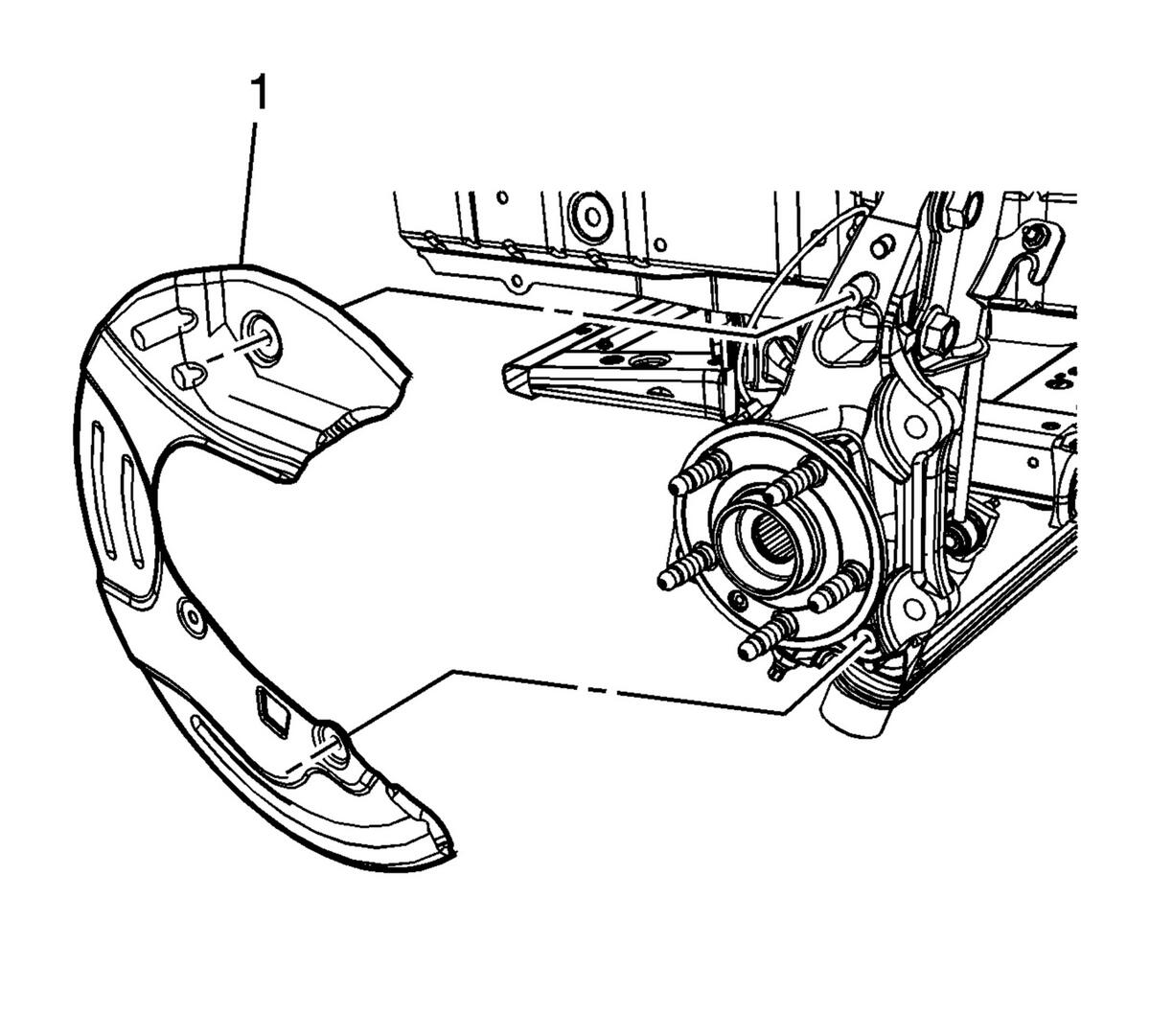

    Fig 1: Front Brake Shield
    GM2202090Courtesy of GENERAL MOTORS CORP.
  1. Install the front brake shield (1).

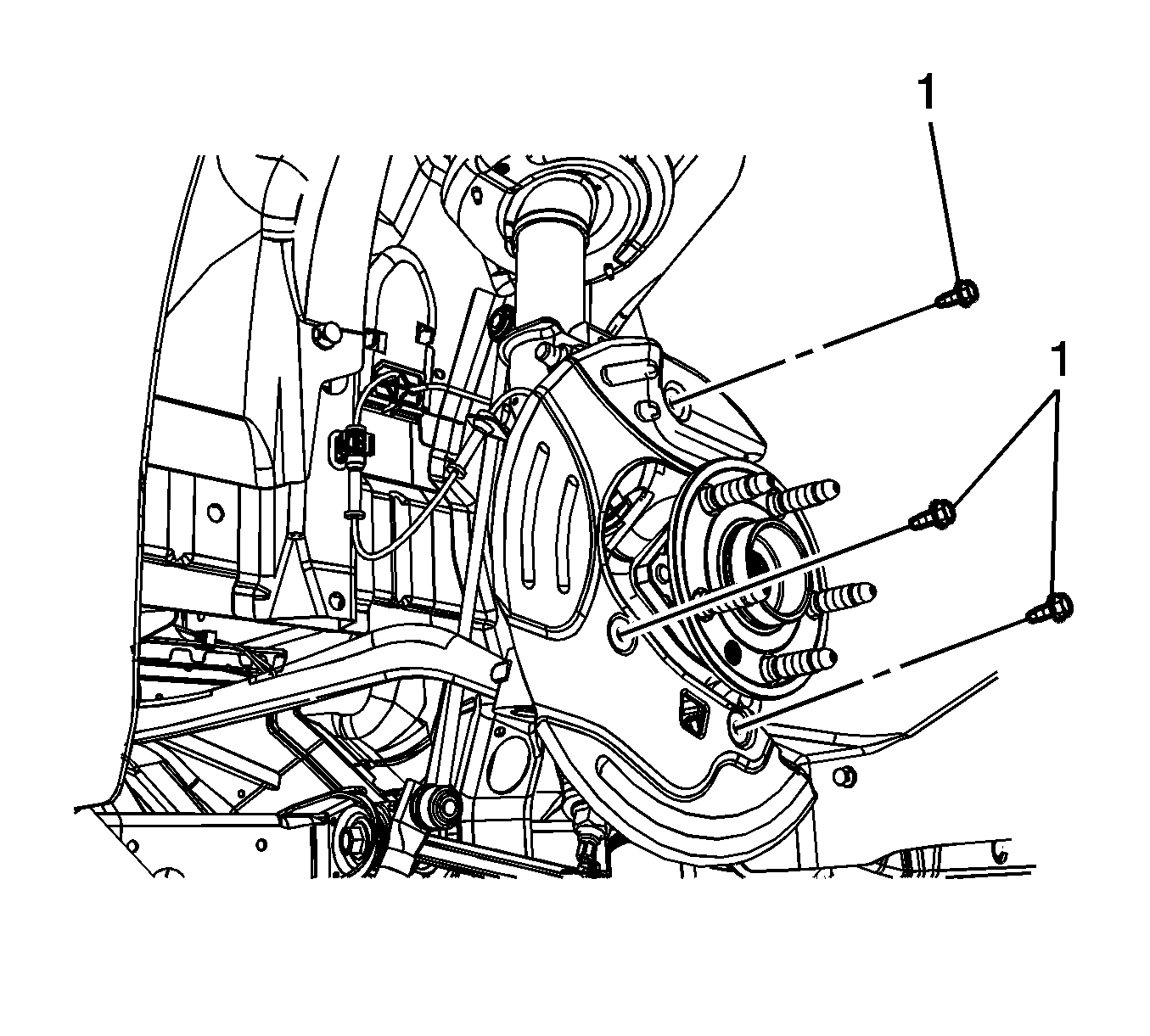

    2. Fig 2: Front Brake Shield Bolts
    GM2202088Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the front brake shield bolts (1) and tighten to 9 N.m (80 lb in).

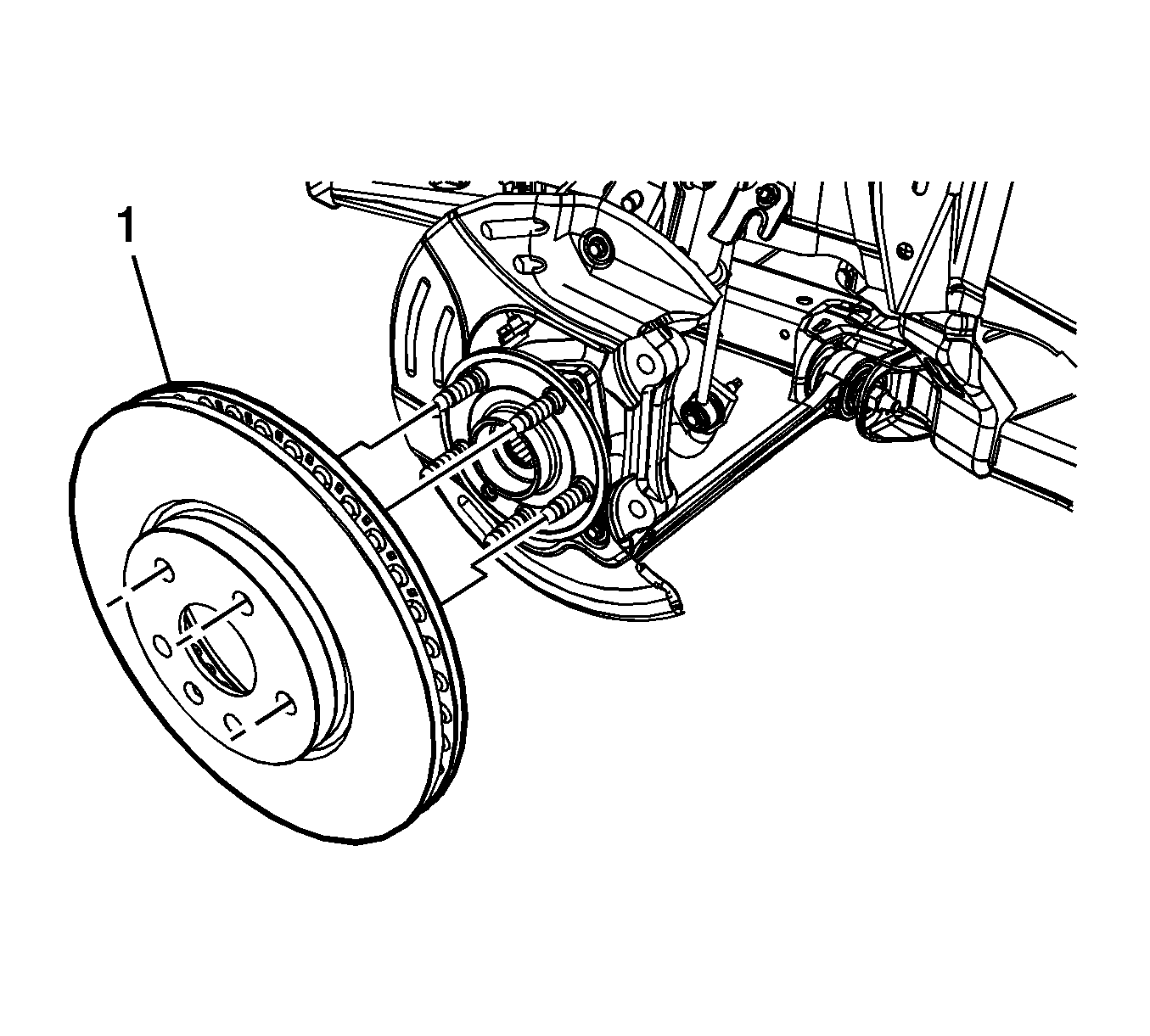

    3. Fig 3: Disc Brake Rotor
    GM2202087Courtesy of GENERAL MOTORS CORP.
  3. Install the front disc brake rotor (1). Refer to Front Brake Rotor Replacement (LLT)  or Front Brake Rotor Replacement (L99, LS3) .
  4. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
