Upper Steering Column
Upper Steering Column
Component Name
Callout
Theft Deterrent Module (TDM)
1
Ignition Key Alarm Switch
2
Ignition Switch
3
Ignition Key Cylinder
4
Horn Switch
5
Inflatable Restraint Steering Wheel Module
6
Turn Signal/Multifunction Switch
7
Hazard Warning Switch
8

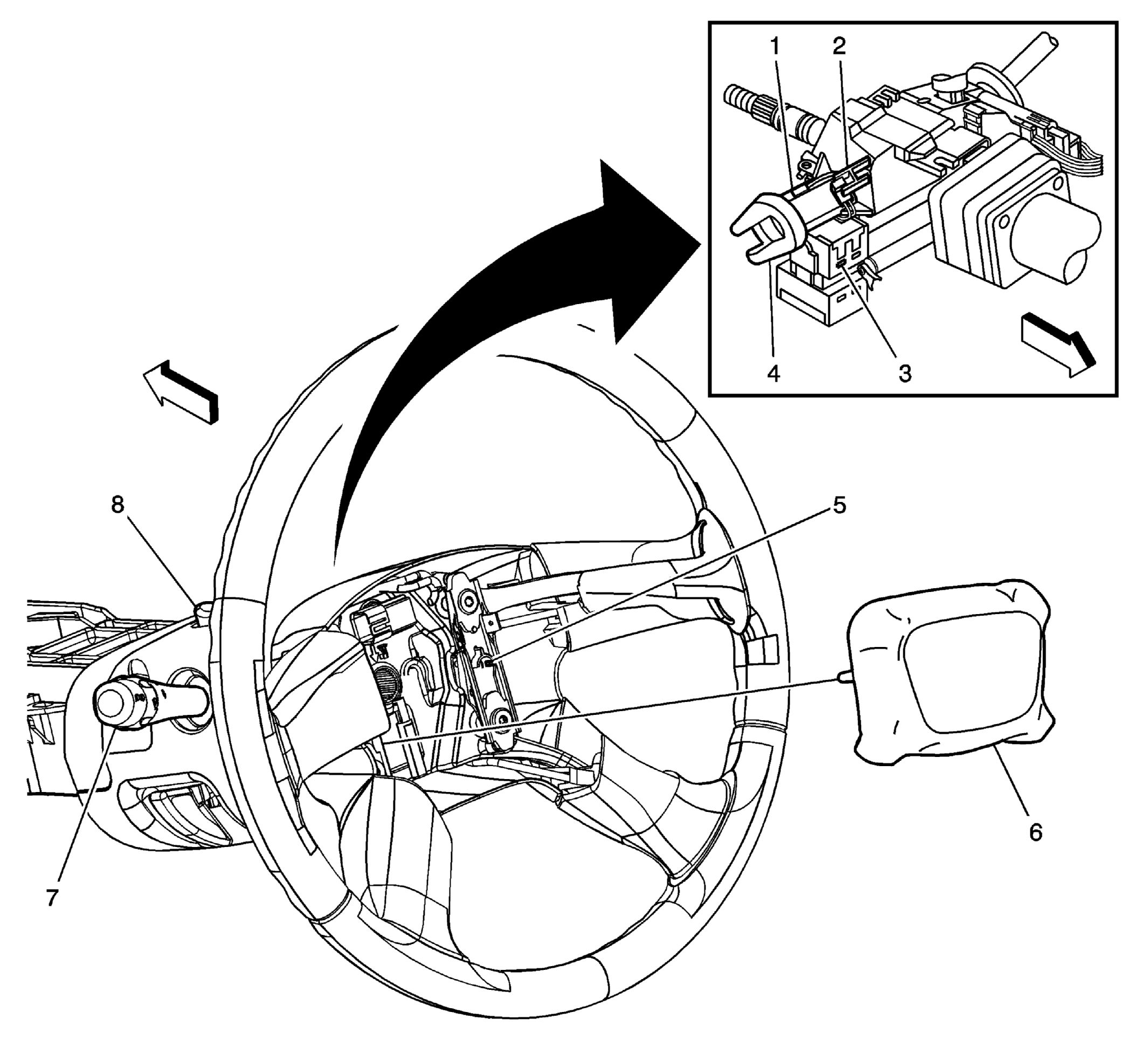

Fig 1: Upper Steering Column
Courtesy of GENERAL MOTORS CORP.
