Chevrolet
>>
2011
>>
Corvette Base, 2D Convertible, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Immobilizer System
>>
Wiring Schematics
>>
Immobilizer System Wiring Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Immobilizer System Wiring Schematics

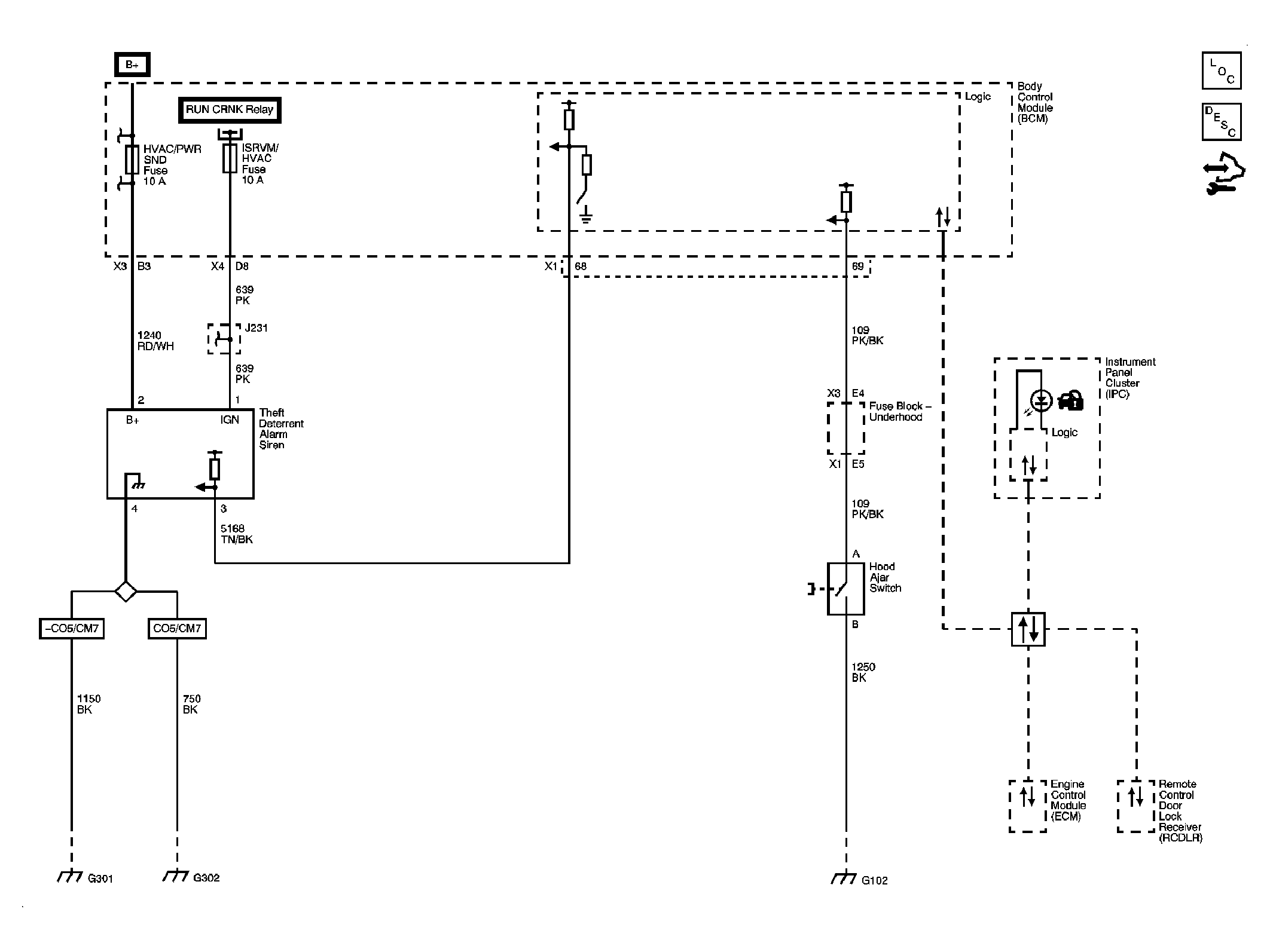

Fig 1: Immobilizer System Wiring Schematic
Courtesy of GENERAL MOTORS CORP.
