Engine Compartment




Harness Routing Views

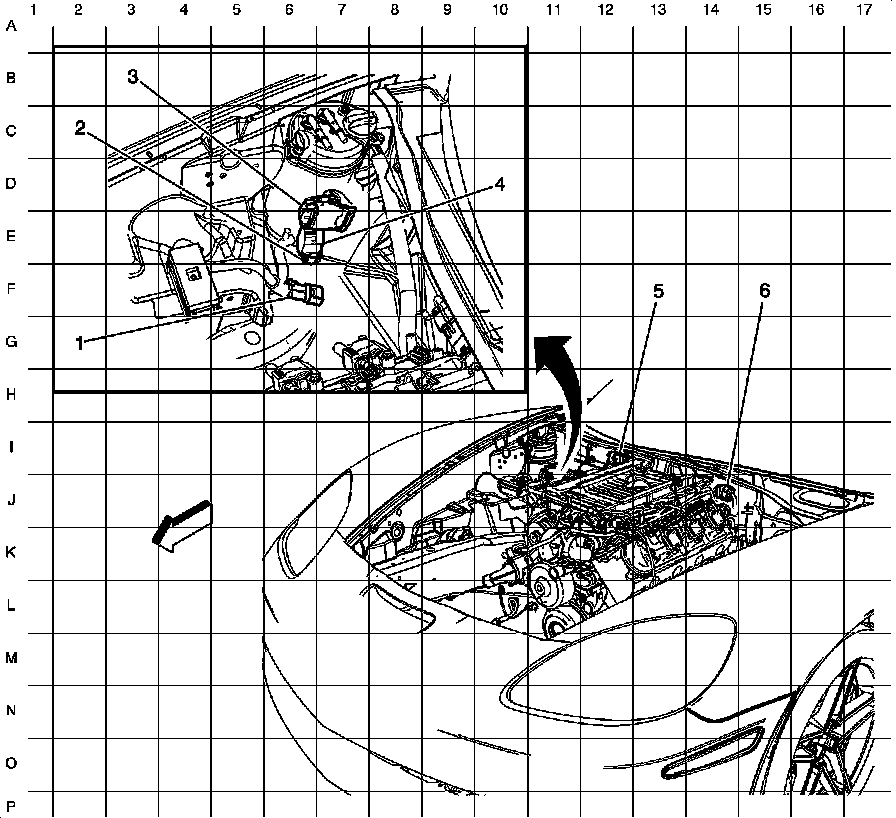

Engine Harness Routing (LS9)




1 - X182
2 - X186
3 - X180
4 - X184
5 - X149
6 - X150
