Harness Locations

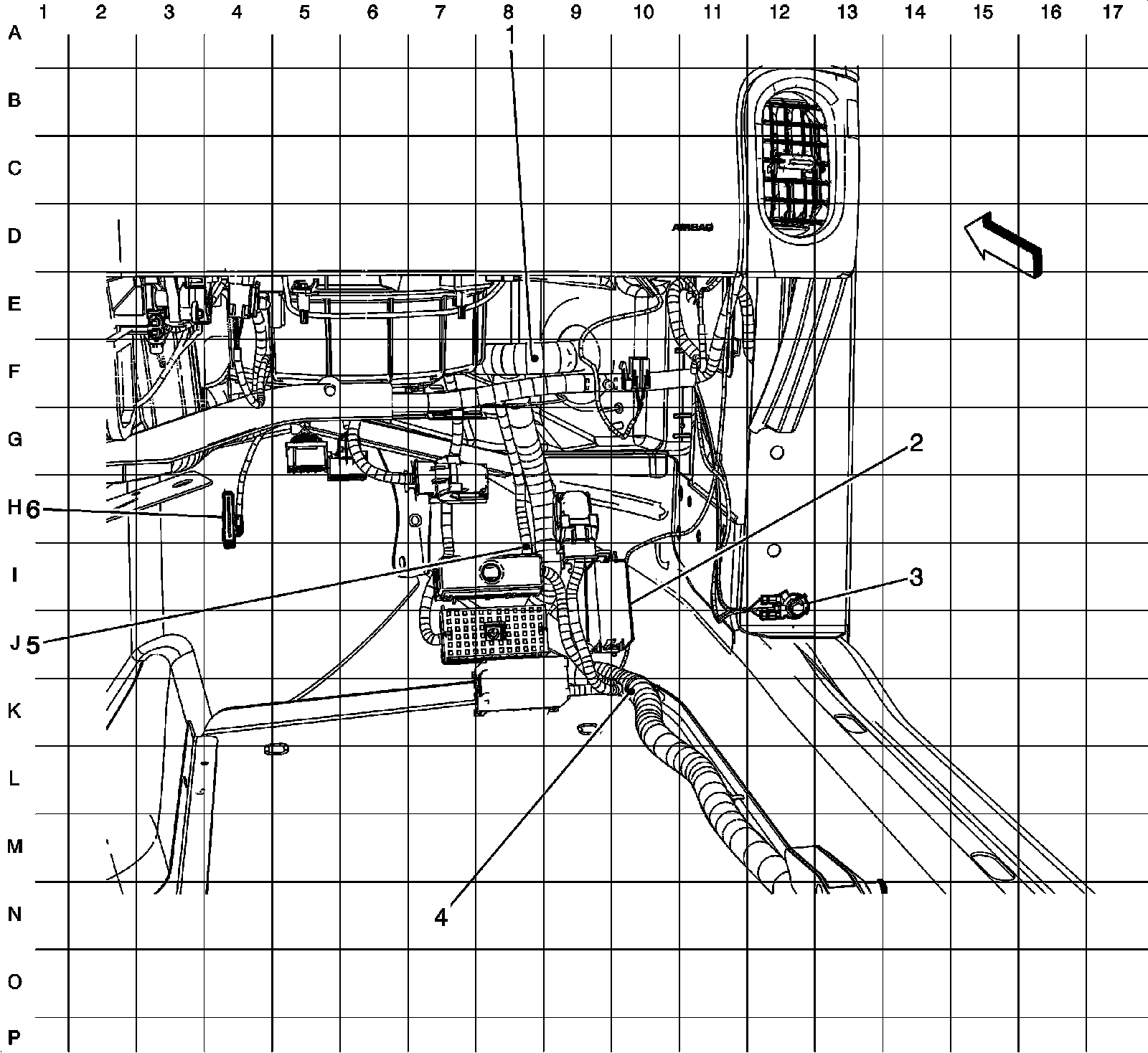

Harness Routing Views

Instrument Panel Harness Routing Splices - Near the Passenger Floor




1 - J217 (LS3)
2 - Fuse Block - Instrument Panel
3 - G202
4 - J234
5 - J202
6 - JX208
