Ignition Coil: Diagrams




Component Connector End Views

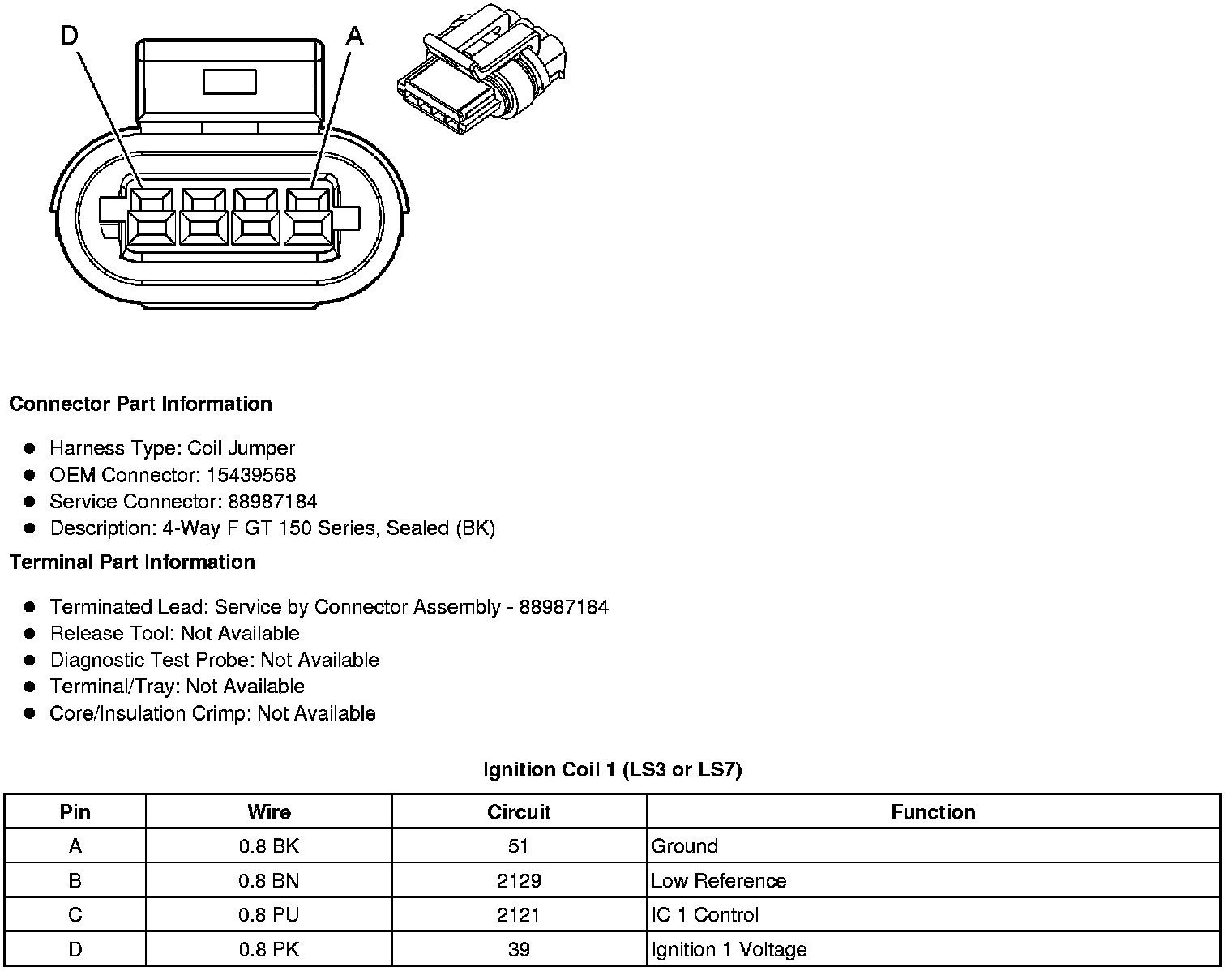

Ignition Coil 1 (LS3 or LS7)

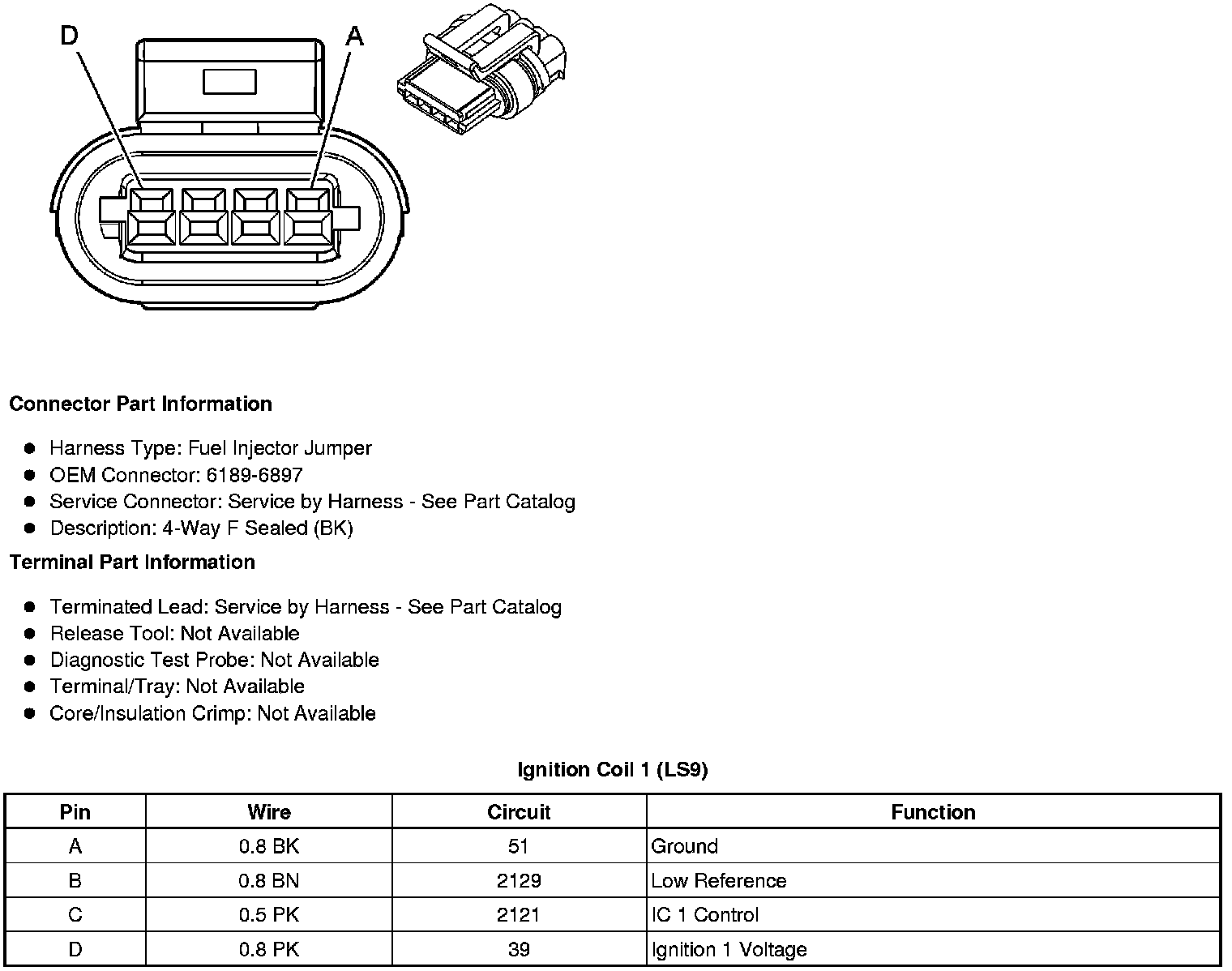

Ignition Coil 1 (LS9)





Ignition Coil 2 (LS3 or LS7)

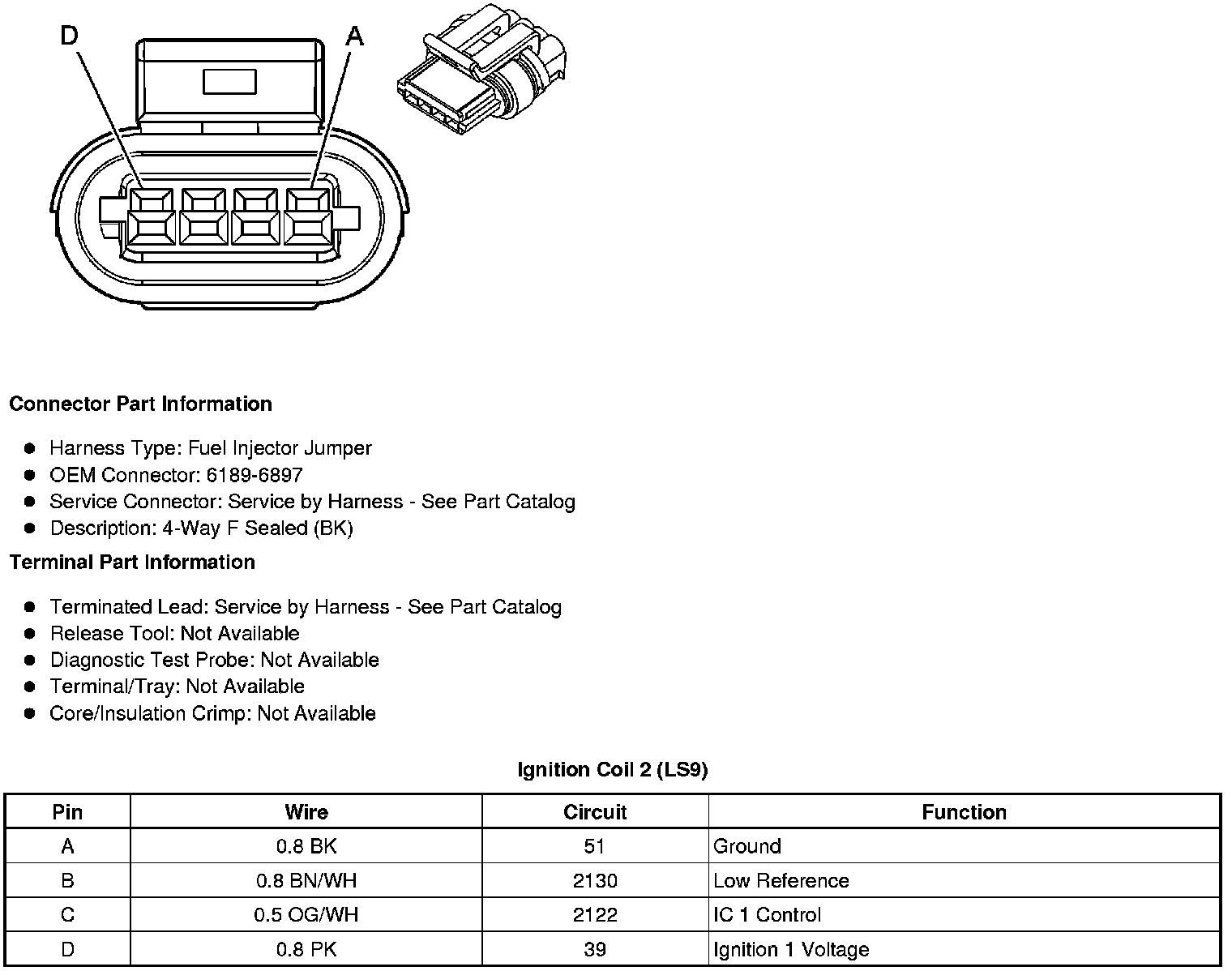

Ignition Coil 2 (LS9)





Ignition Coil 3 (LS3 or LS7)





Ignition Coil 3 (LS9)

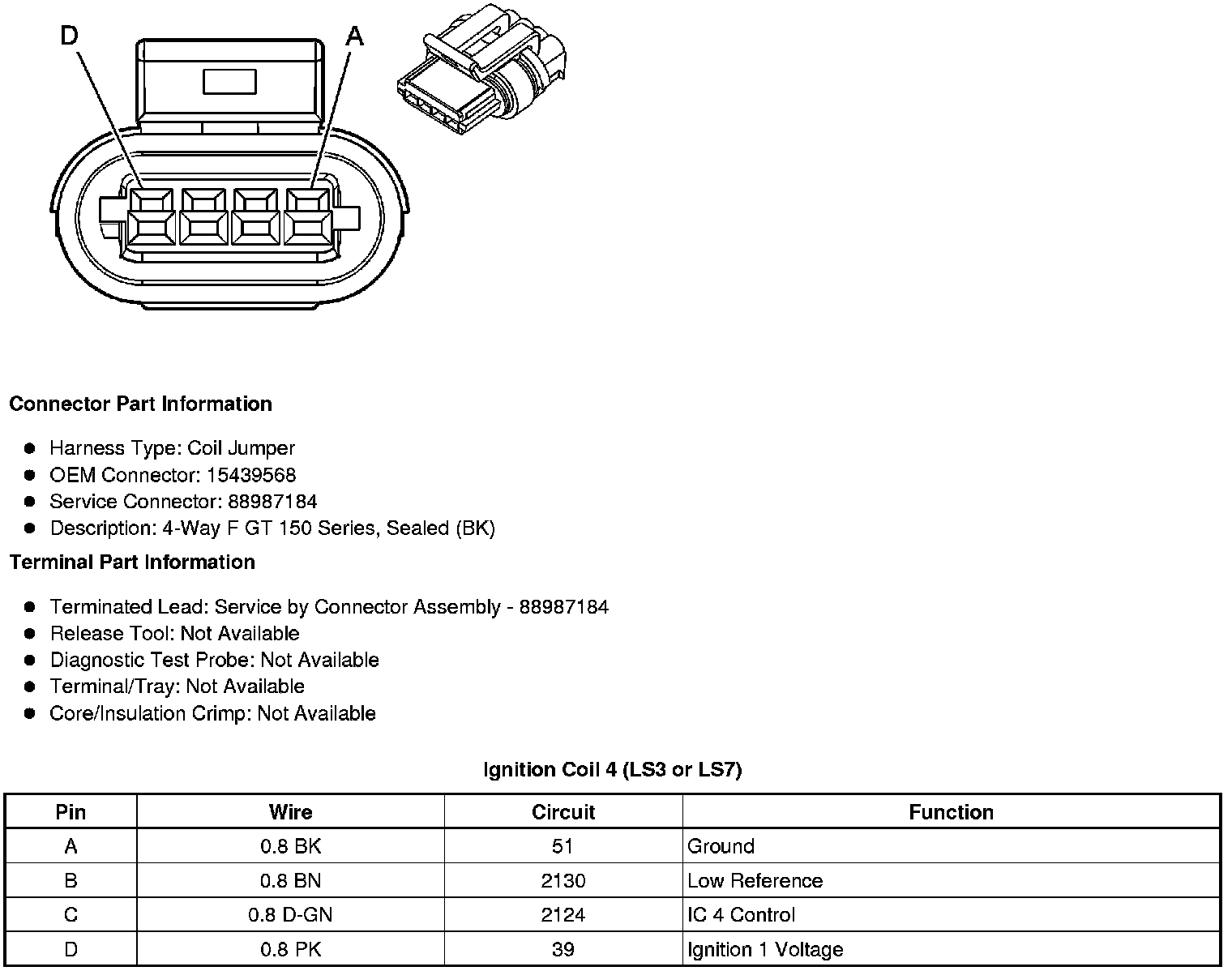

Ignition Coil 4 (LS3 or LS7)

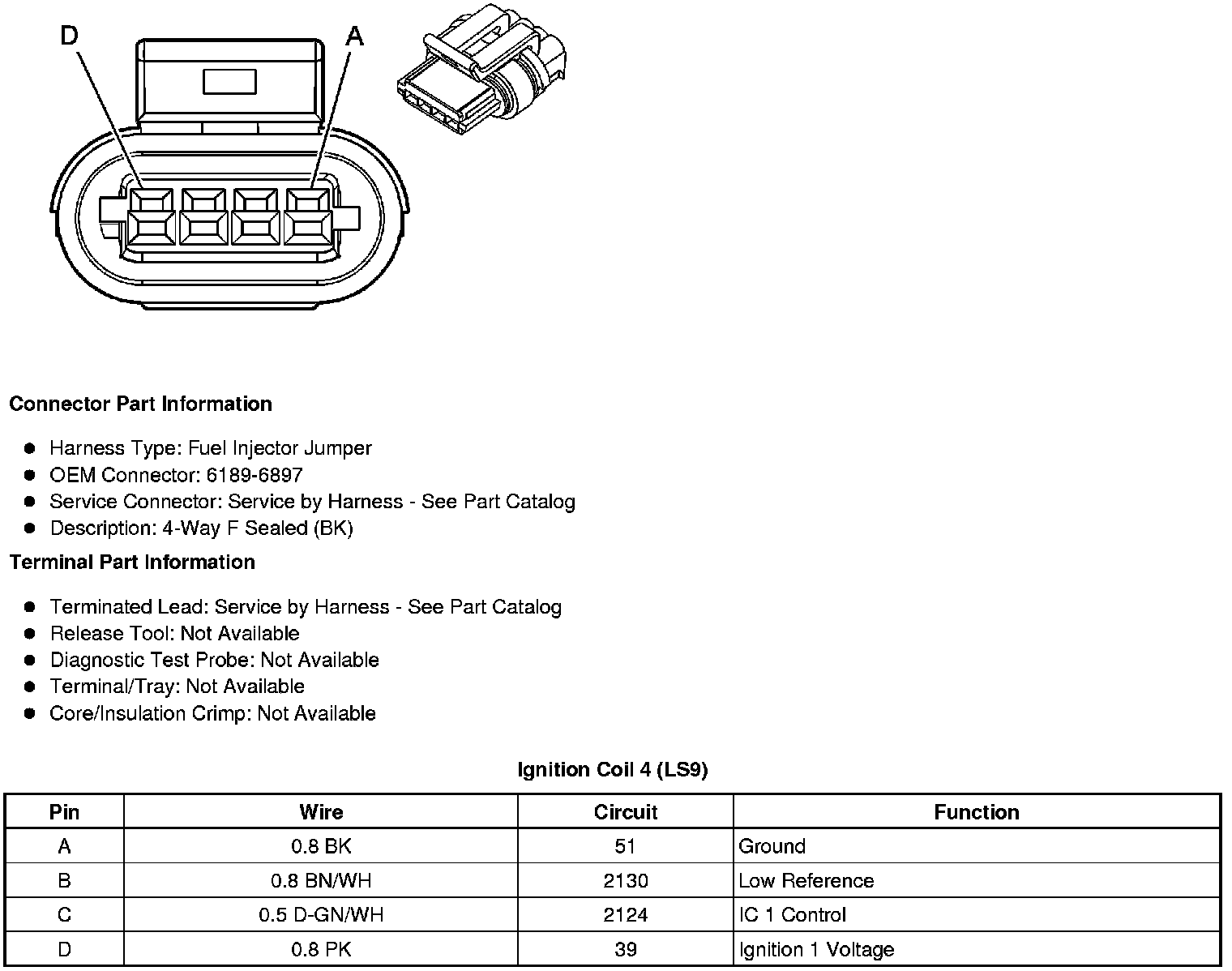

Ignition Coil 4 (LS9)





Ignition Coil 5 (LS3 or LS7)





Ignition Coil 5 (LS9)





Ignition Coil 6 (LS3 or LS7)





Ignition Coil 6 (LS9)





Ignition Coil 7 (LS3 or LS7)





Ignition Coil 7 (LS9)





Ignition Coil 8 (LS3 or LS7)





Ignition Coil 8 (LS9)
