Trunk / Liftgate Lock Cylinder




Component Connector End Views

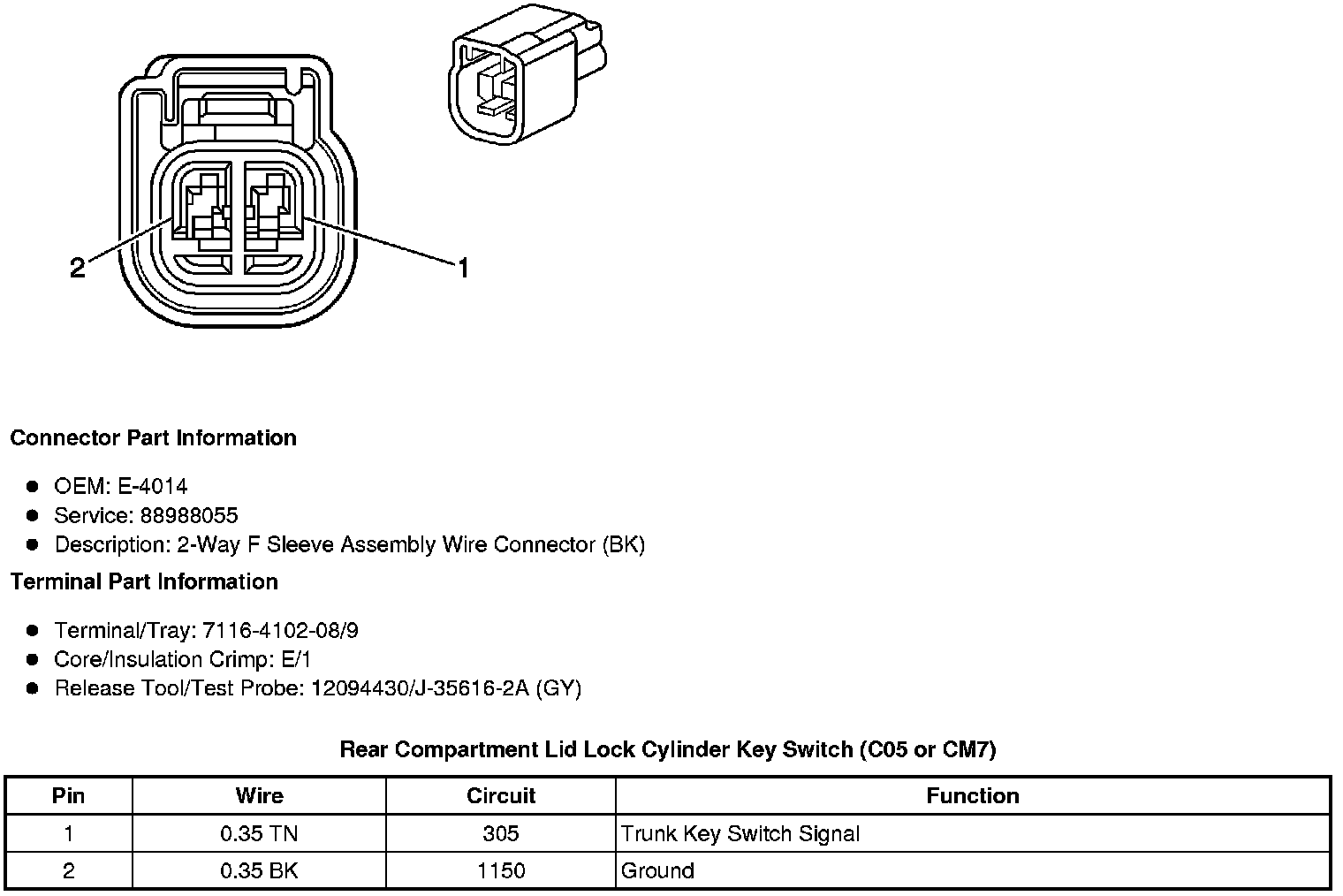

Rear Compartment Lid Lock Cylinder Key Switch (C05 or CM7)
