Automatic Transmission/Transaxle




Park - Engine Running








Reverse

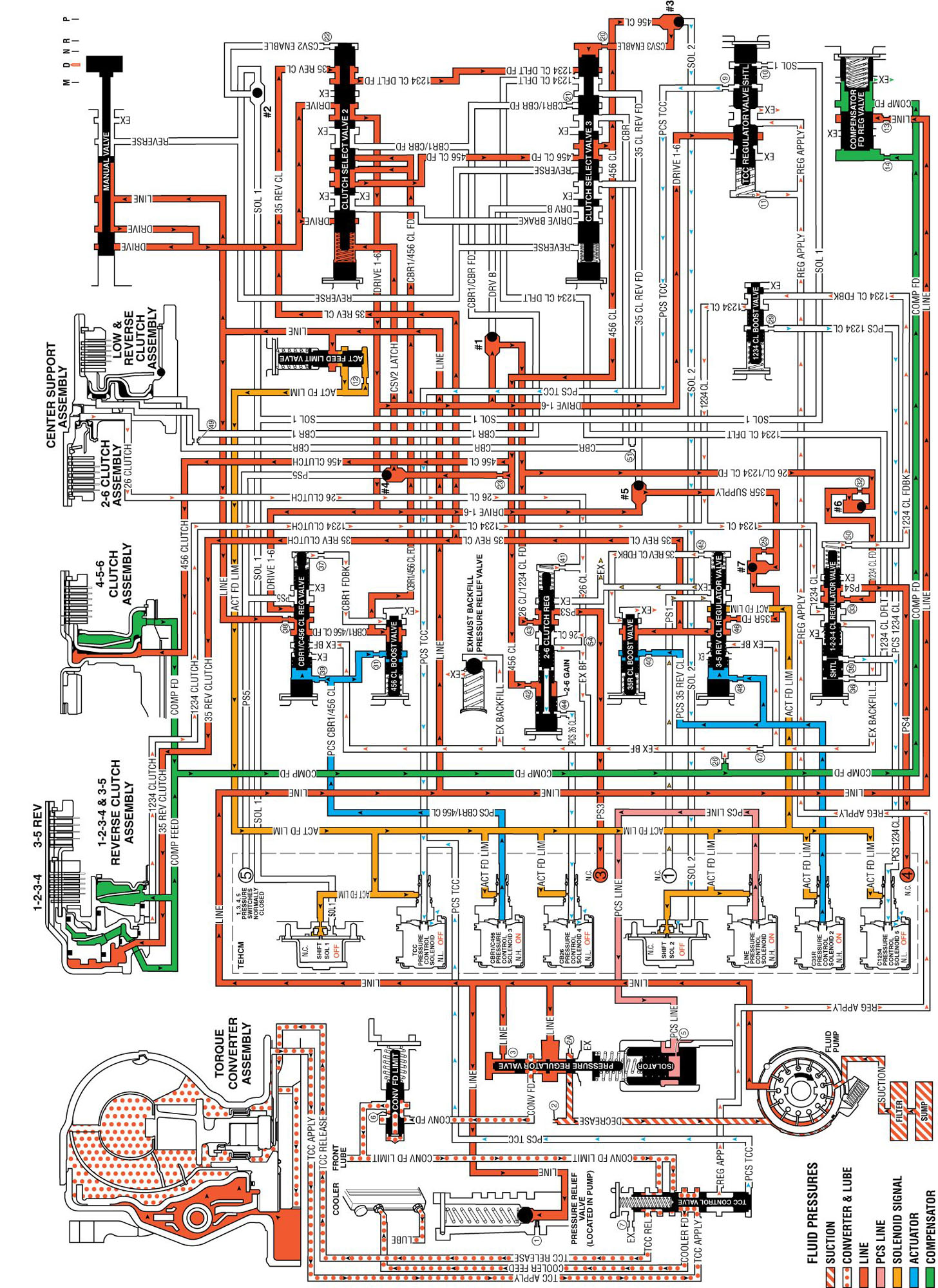

Neutral - Engine Running








Drive Range, First Gear Engine Braking








Drive Range, First Gear








Drive Range, Second Gear








Drive Range, Third Gear








Drive Range, Third Gear Default








Drive Range, Fourth Gear








Drive Range, Fifth Gear








Drive Range, Fifth Gear Default








Drive Range, Sixth Gear
