Left Side of Engine Components

Powertrain Component Views

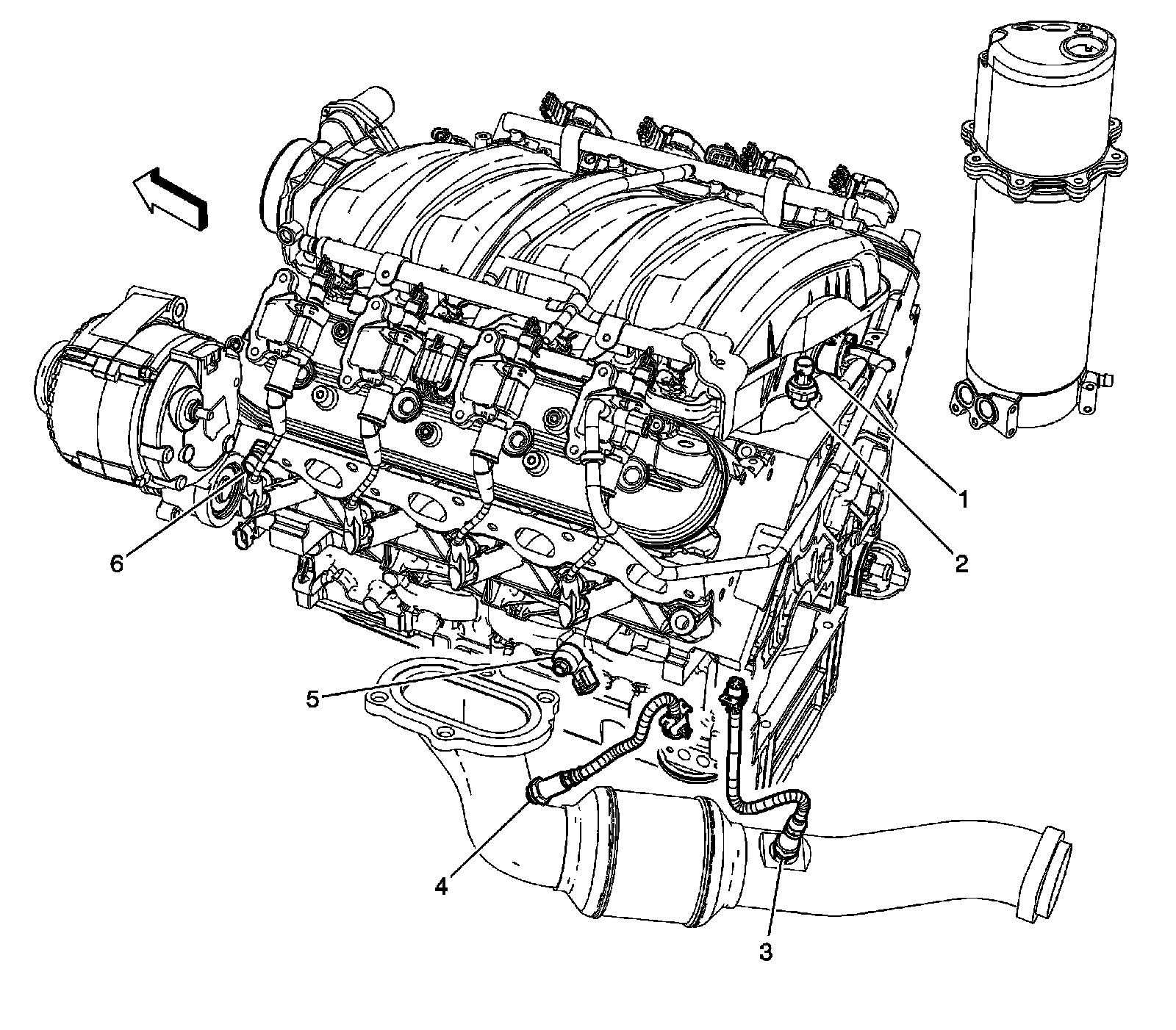

Left Side of Engine Components (LS7)

1 - Manifold Intake Check Valve
2 - Engine Oil Pressure (EOP) Sensor
3 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2
4 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
5 - Knock Sensor (KS) 1
6 - Engine Coolant Temperature (ECT) Sensor
