Right Side of Engine Components

Powertrain Component Views

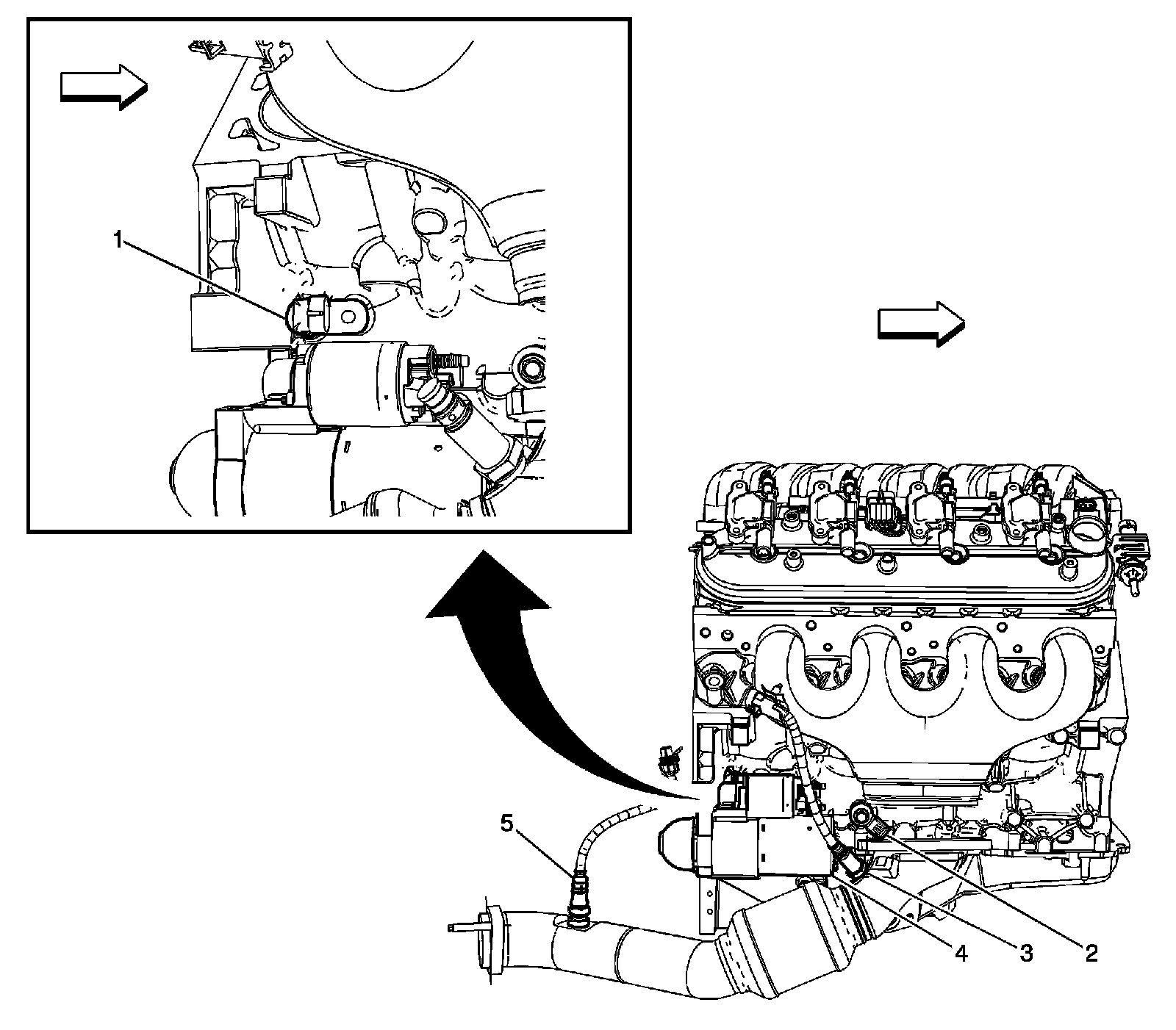

Right Side of Engine Components (LS7)

1 - Crankshaft Position (CKP) Sensor
2 - Knock Sensor (KS) 2
3 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
4 - Starter Motor
5 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
