Component Locations

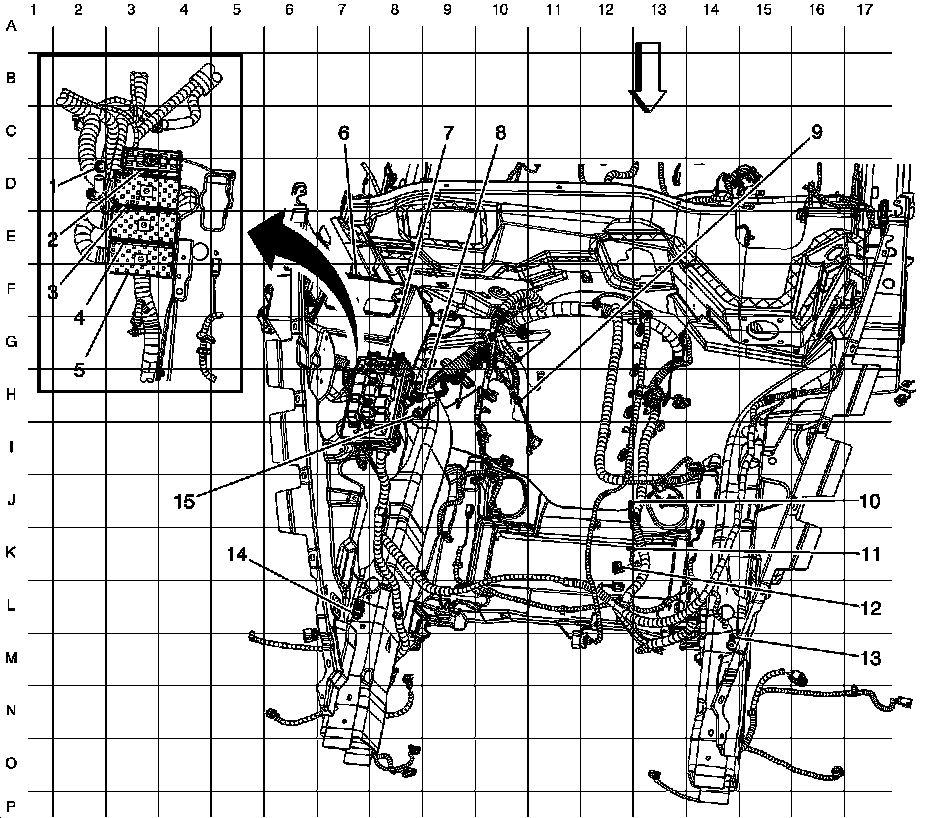

Front of Vehicle/Engine Compartment Component Views

Engine Compartment - Fuse Block - Underhood




1 - Fuse Block - Underhood X5
2 - Fuse Block - Underhood X4
3 - Fuse Block - Underhood X3
4 - Fuse Block - Underhood X2
5 - Fuse Block - Underhood X1
6 - Battery (LS3 without Z52)
7 - Fuse Block - Underhood
8 - G104
9 - G106 (Engine Block)
10 - G107 (Engine Block)
11 - G105 (Engine Block)
12 - X103
13 - G101
14 - G102
15 - G103
