Power Window Switch: Locations

Door Component Views

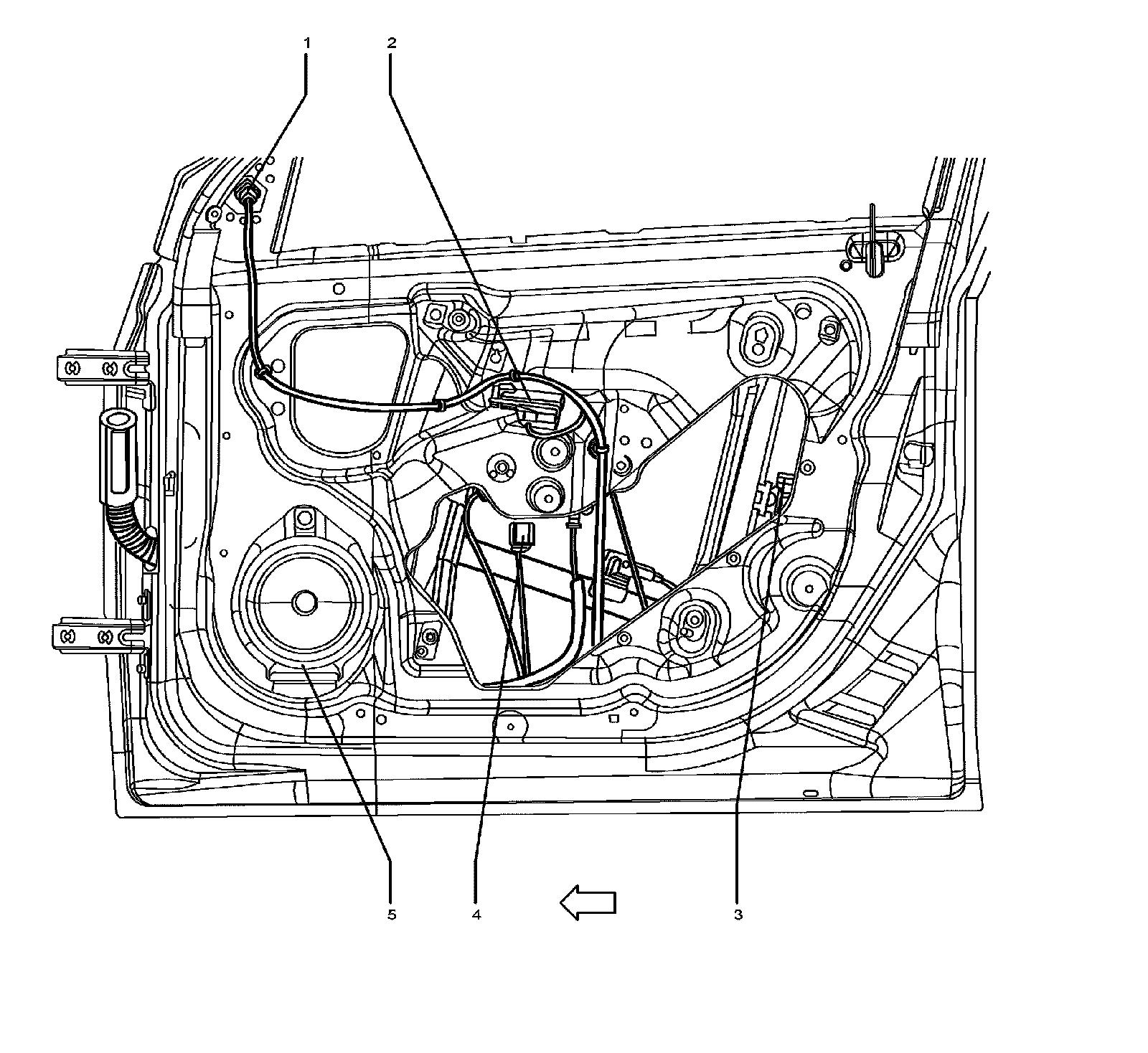

Driver Door Components




1 - S79D Window Switch - Driver
2 - S52 Outside Rearview Mirror Switch
3 - A9A Outside Rearview Mirror - Driver
4 - P19G Speaker - Left Front

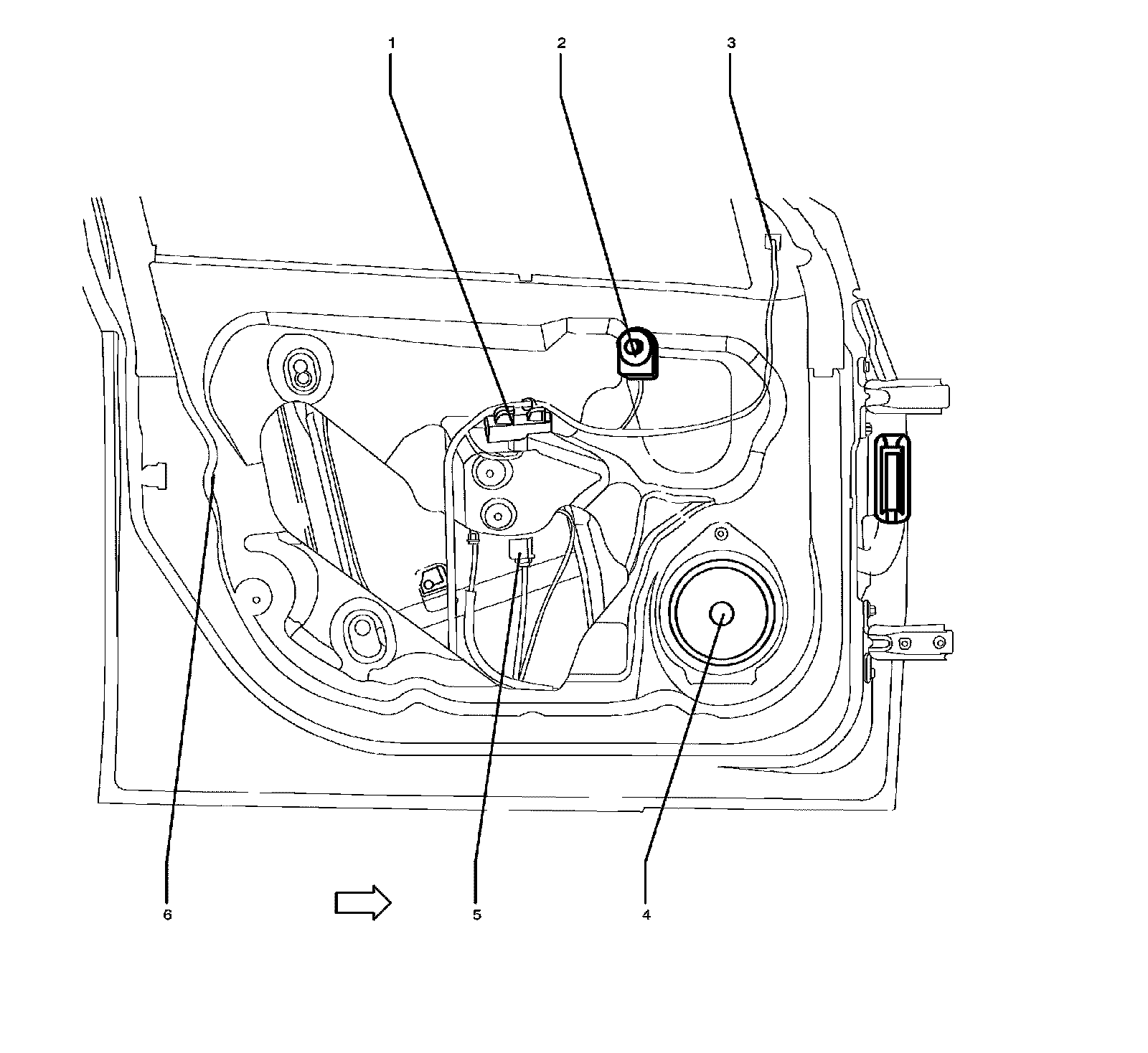

Front Passenger Door Components




1 - A9B Outside Rearview Mirror - Passenger
2 - S79P Window Switch - Passenger
3 - M74P Window Motor - Passenger
4 - P19U Speaker - Right Front

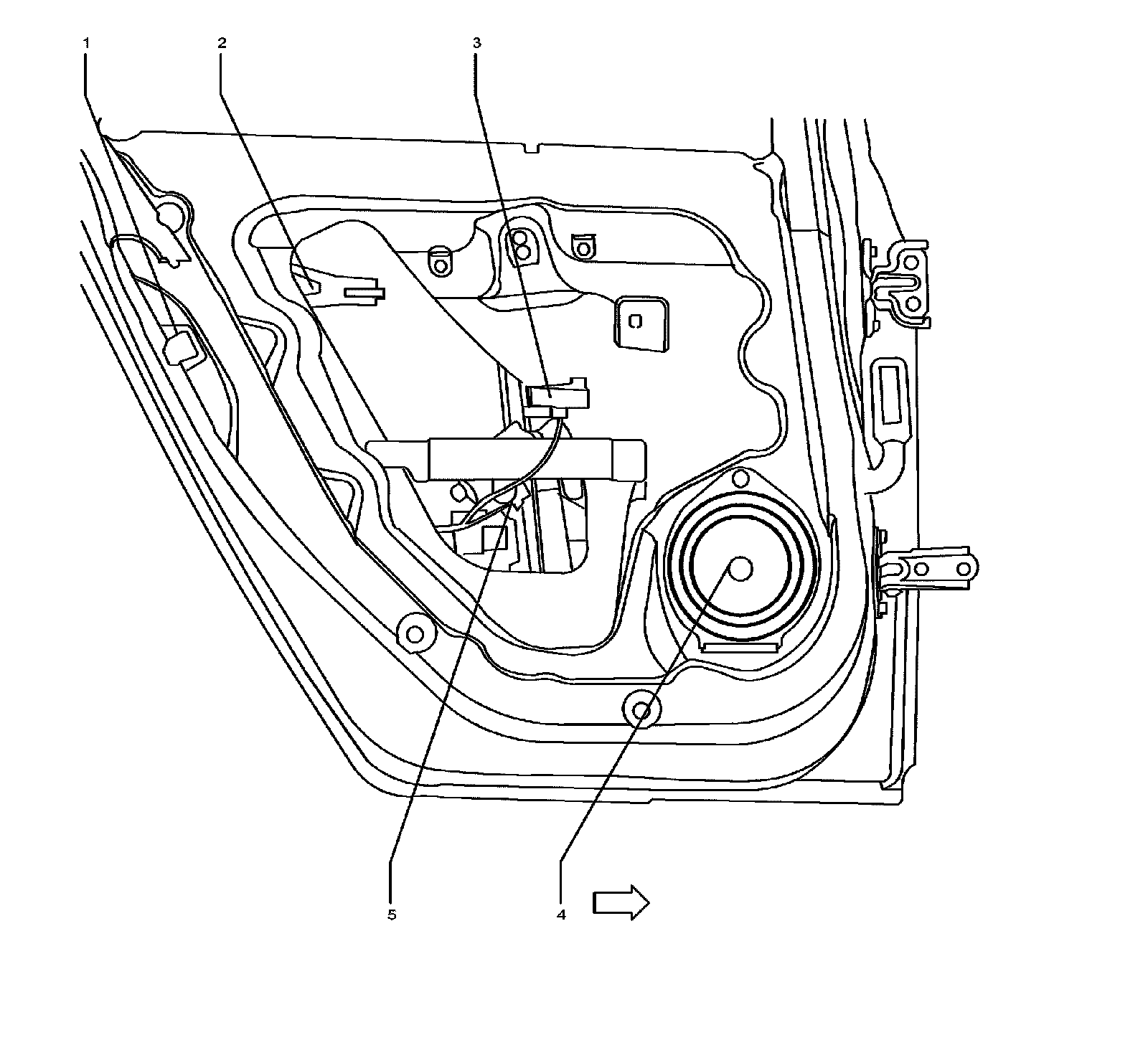

Left Rear Passenger Side Door Components




1 - B27LR Door Handle Switch - Left Rear
2 - S79LR Window Switch - Left Rear
3 - M74LR Window Motor - Left

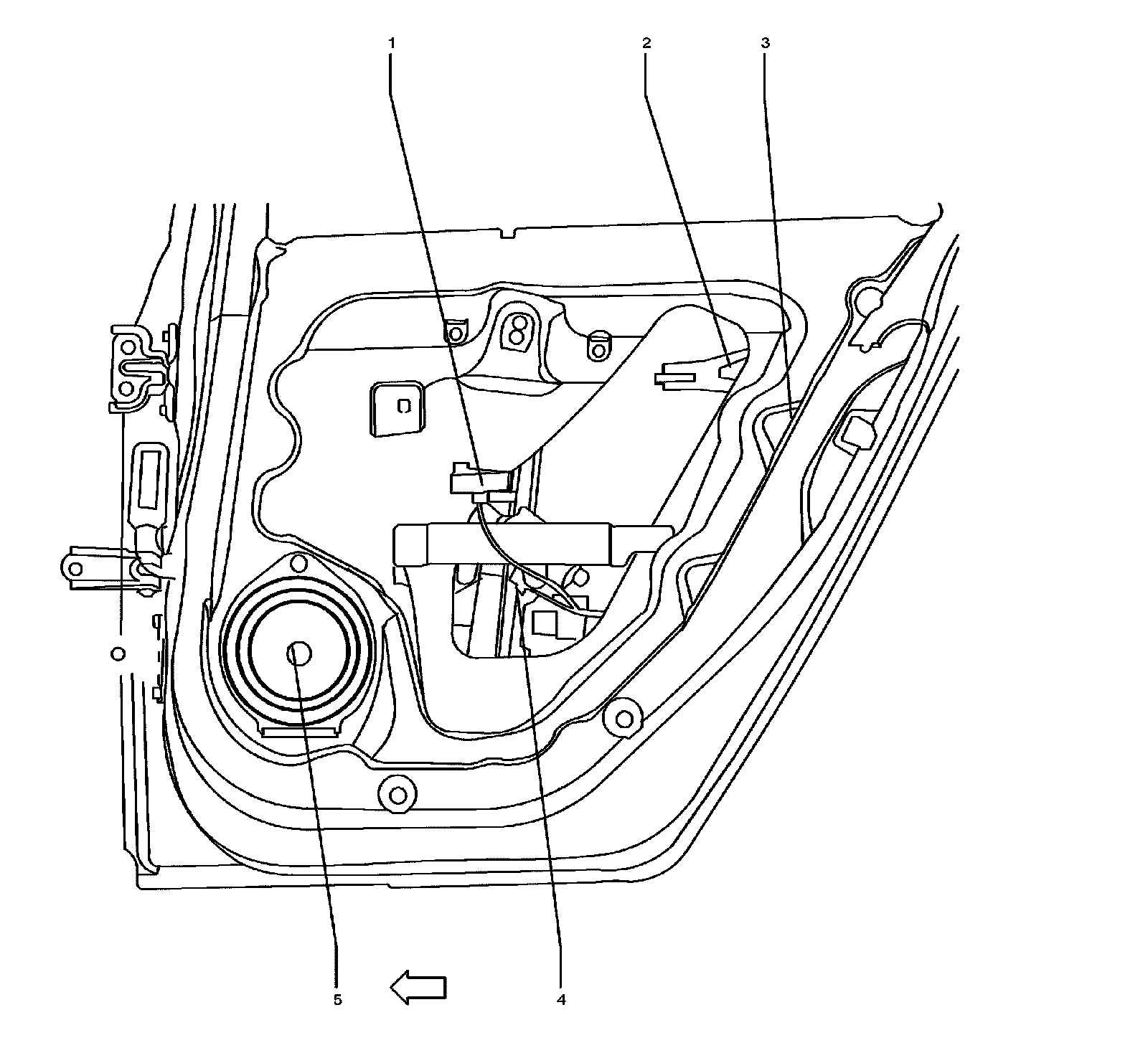

Right Rear Passenger Side Door Components




1 - S79RR Window Switch - Right Rear
2 - B27RR Door Handle Switch - Right Rear
3 - M74RR Window Motor - Right Rear
