Control Module HVAC




Component Connector End Views

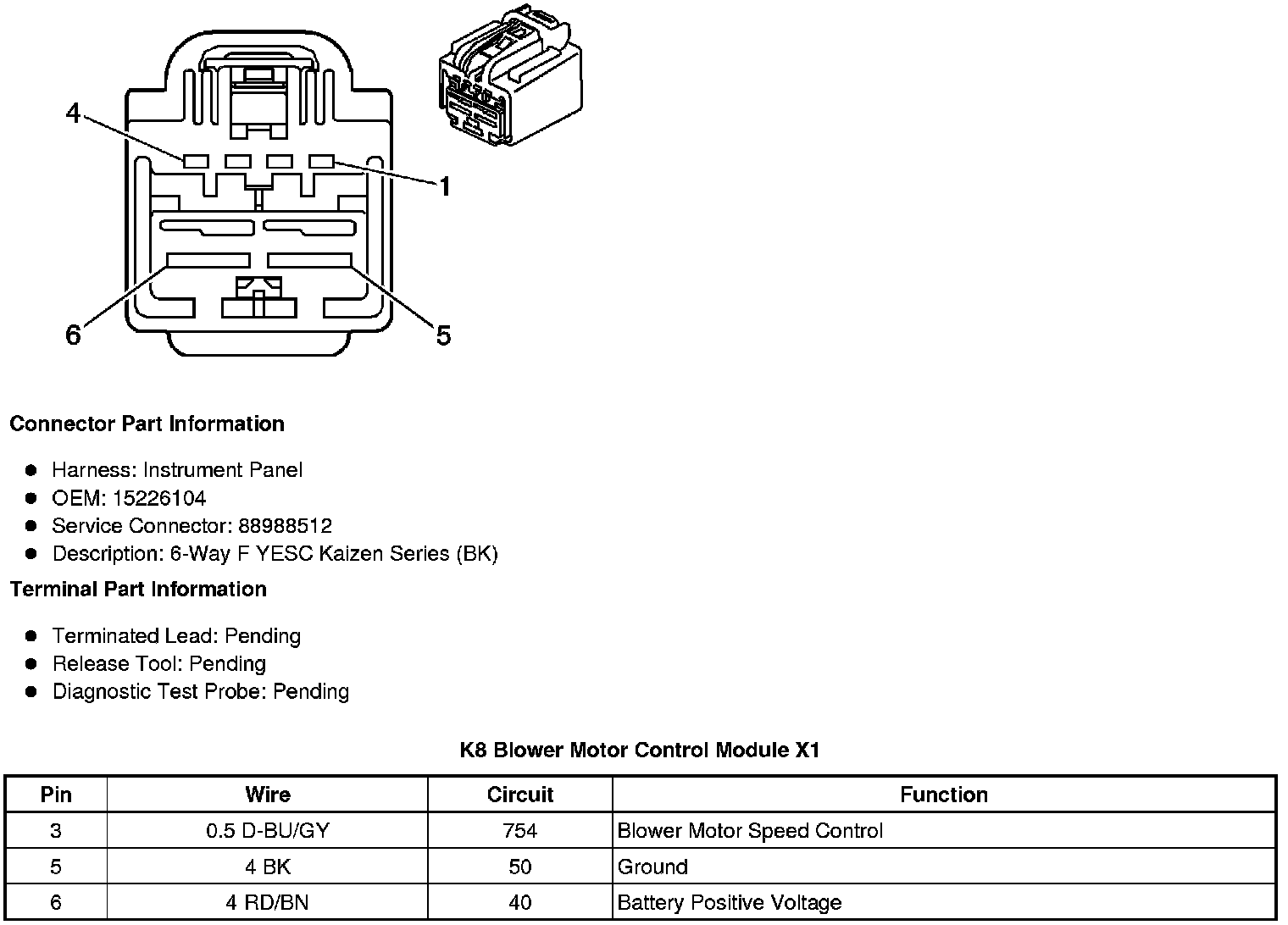

K8 Blower Motor Control Module X1






K8 Blower Motor Control Module X2
