Tail Lamp




Component Connector End Views

E5AA Tail/Stop Lamp - Left






E5AB Tail/Stop Lamp - Right






E5E Tail Lamp - Left

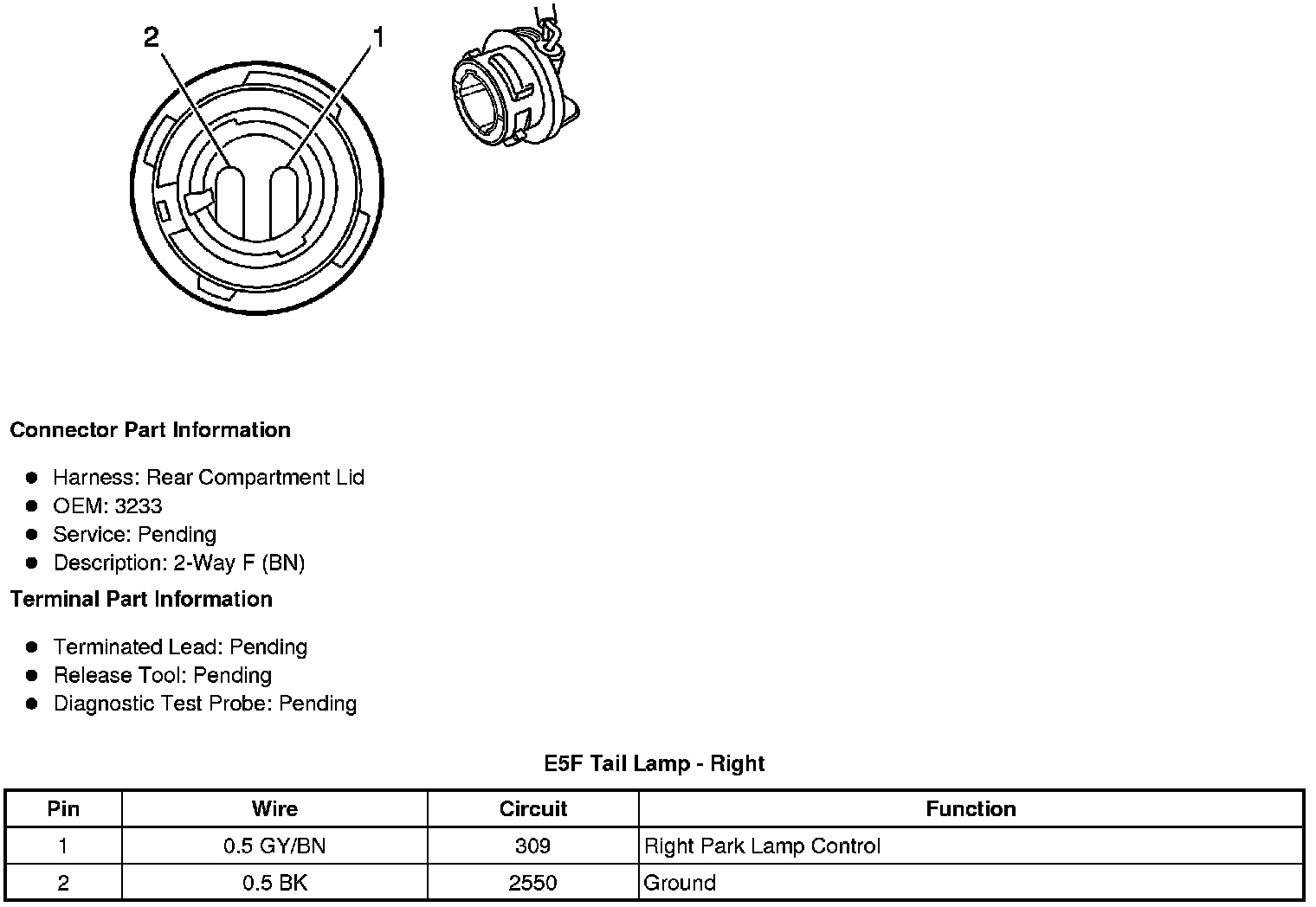

E5F Tail Lamp - Right
