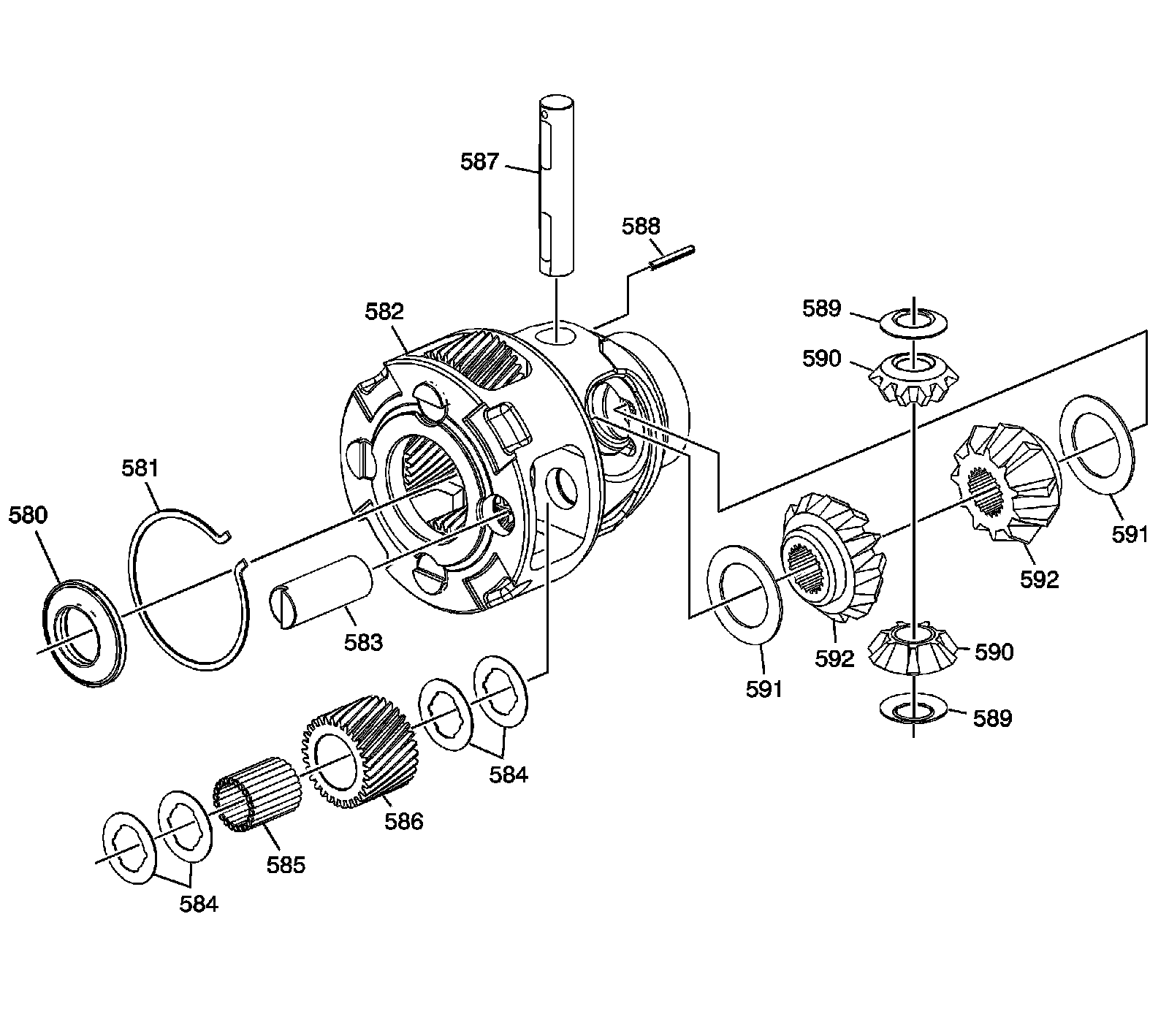

Front Differential Carrier Assembly

Disassembled Views (6T40/45)

Front Differential Carrier Assembly




580 - Differential Sun Gear to Differential Housing Bearing Assembly
581 - Final Drive Retainer
582 - Differential Carrier Assembly
583 - Final Drive Pinion Pin
584 - Final Drive Inner and Outer Washer
585 - Final Drive Roller
586 - Pinion Final Drive Gear
587 - Front Differential Pinion Gear Shaft
588 - Front Differential Pinion Gear Shaft Pin
589 - Front Differential Pinion Gear Thrust Washer
590 - Front Differential Pinion Gear
591 - Front Differential Side Gear Thrust Washer
592 - Front Differential Side Gear
