Theft Deterrent Module Replacement

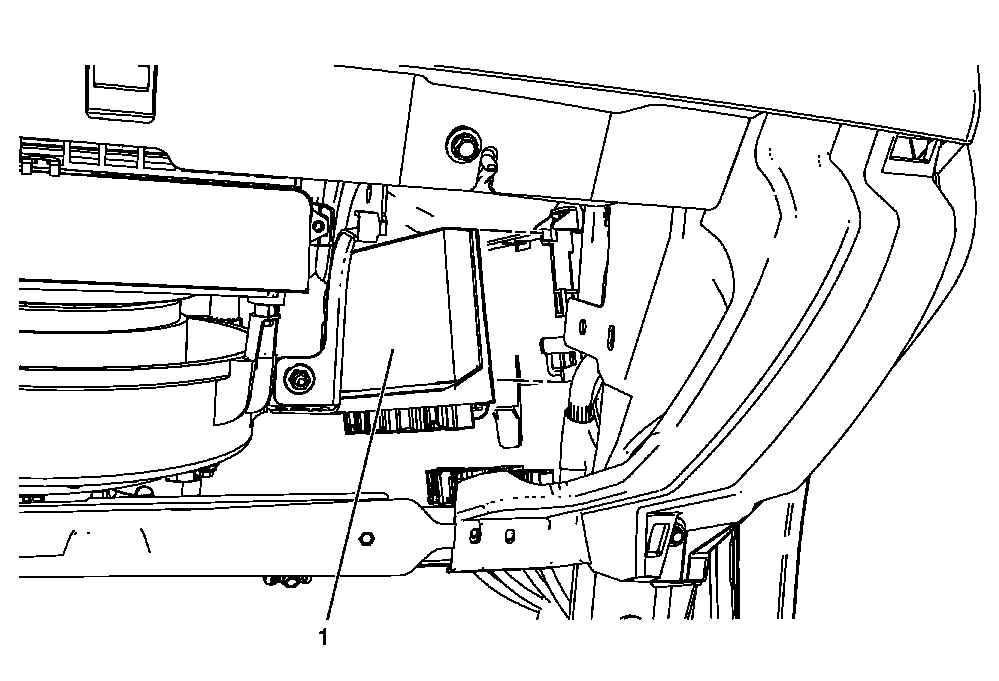

Fig 1: Theft Deterrent Module

GM2027875

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the mobile telephone control module. Refer to Mobile Telephone Control Module Replacement .

WARNING: Refer to Battery Disconnect Warning .

Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

1

Theft Deterrent Module

Procedure

Disconnect wiring connectors as needed.
Unclip the module from the bracket.
