Battery Cover Replacement

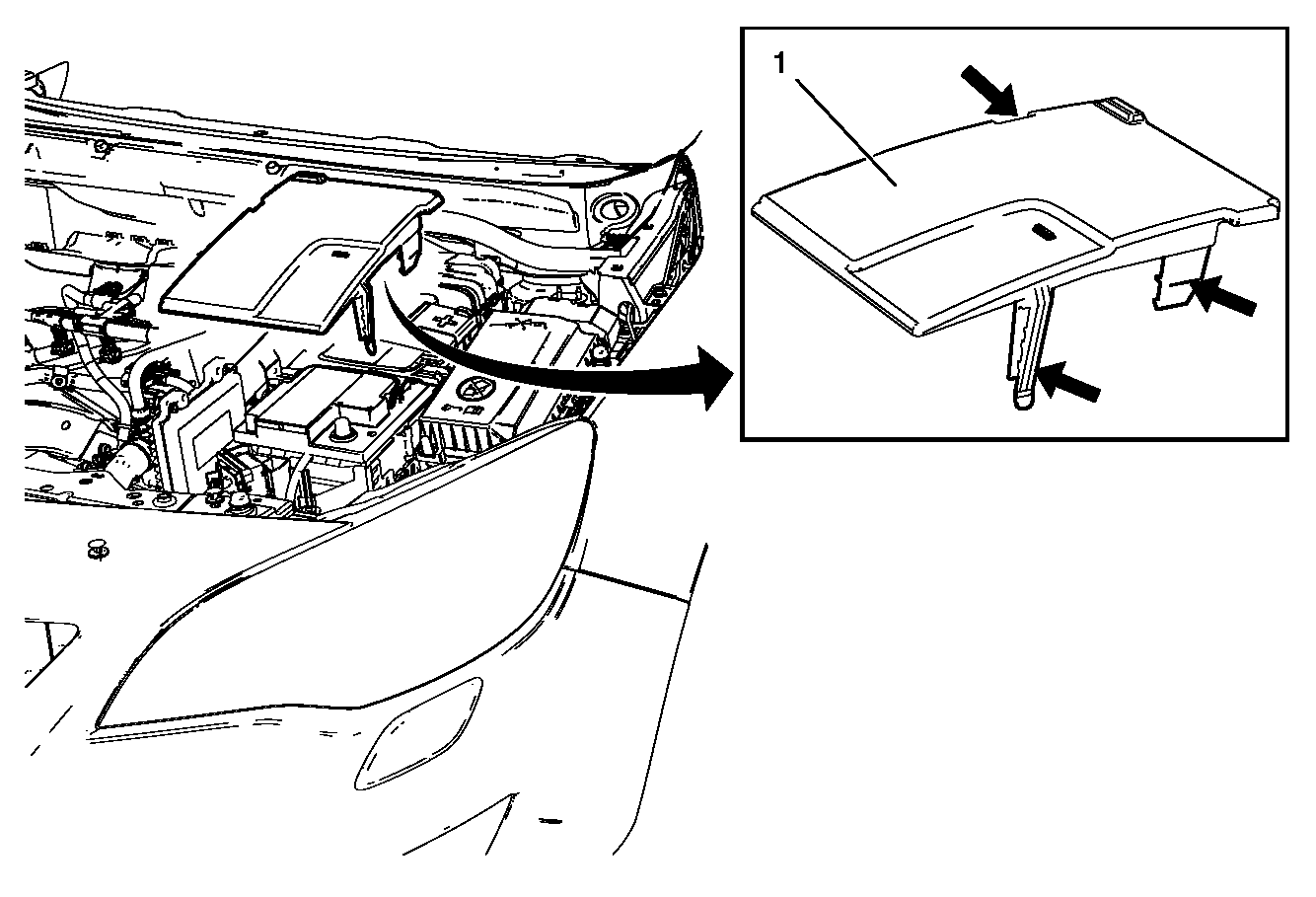

Fig 1: Battery Cover

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Battery Cover Tip: Mind the 3 battery cover retainer clips (arrows). The battery cover could be damaged if the retainer clips are not fully unlocked.
