Camshaft Position Sensor Replacement

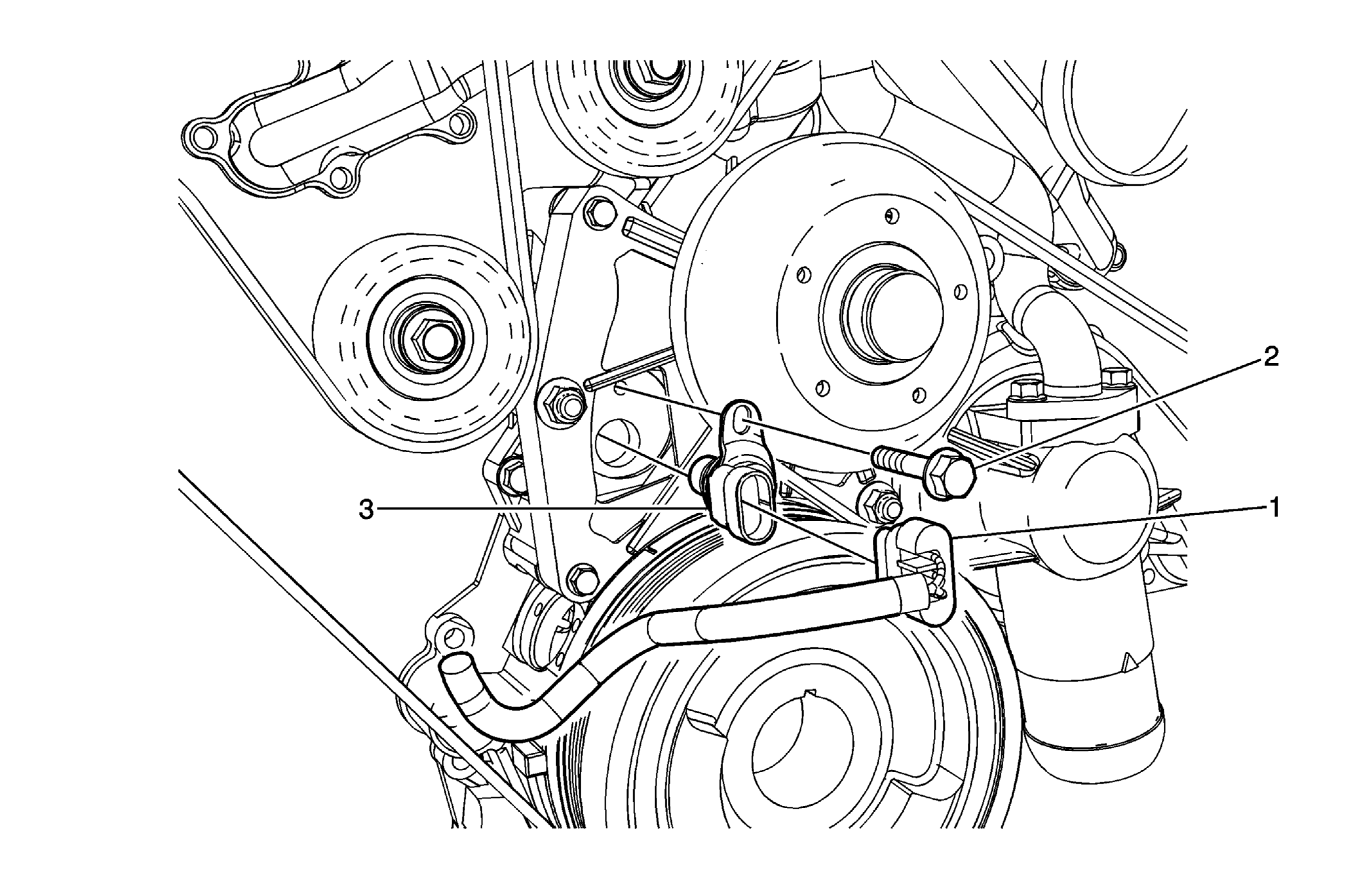

Fig 1: Camshaft Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the radiator fan and clutch. Refer to Fan Clutch Replacement .
1	Camshaft Position Sensor Electrical Connector
2	Camshaft Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Camshaft Position Sensor Procedure Lubricate the camshaft position sensor O-ring with engine oil prior to installation
