Fuel Pressure Regulator Replacement

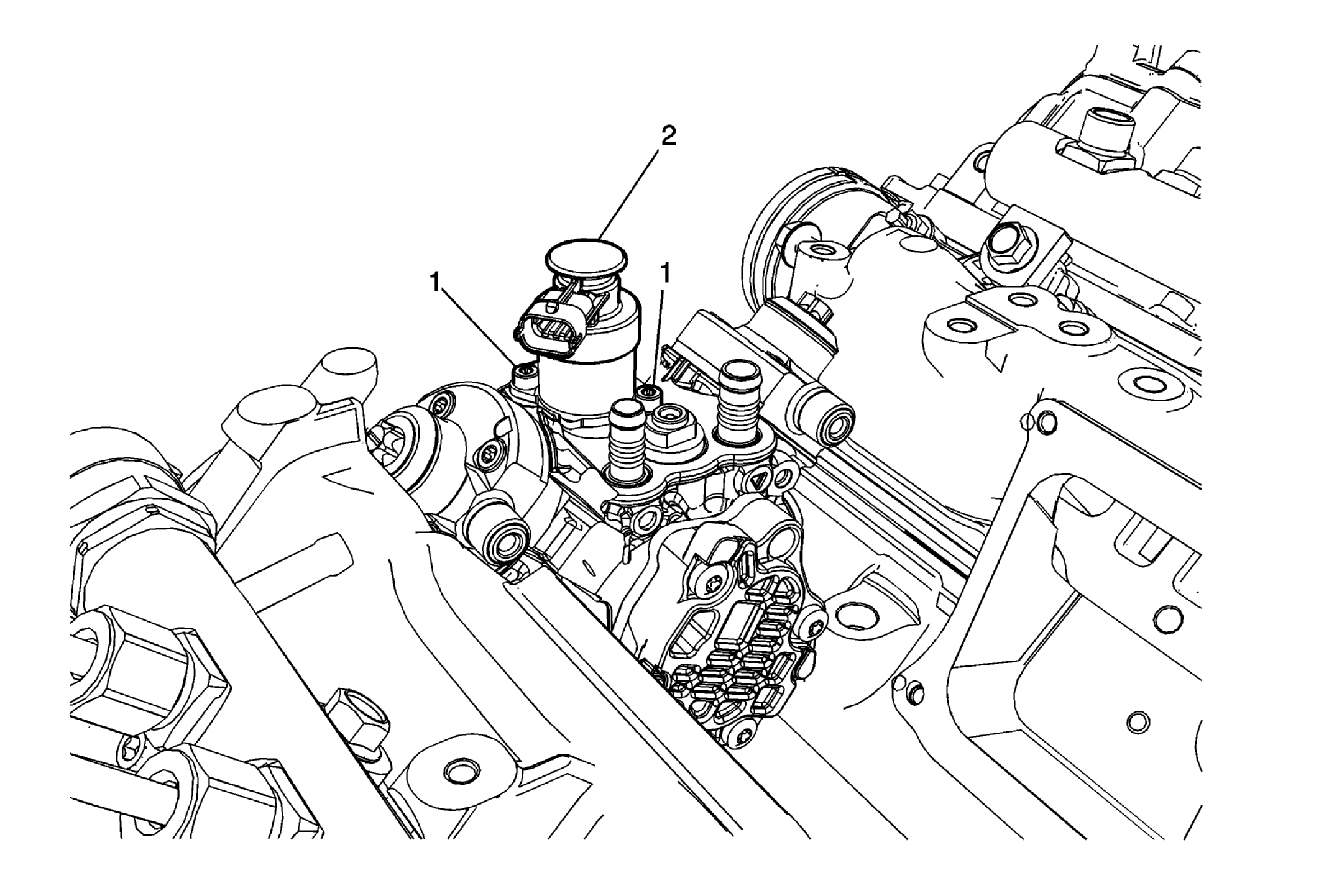

Fig 1: Fuel Pressure Regulator And Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the intake manifold tube. Refer to Intake Manifold Tube Replacement .
1	Fuel Pressure Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Fuel Pressure Regulator Procedure Disconnect the electrical connector.
