System Diagram




Component Connector End Views

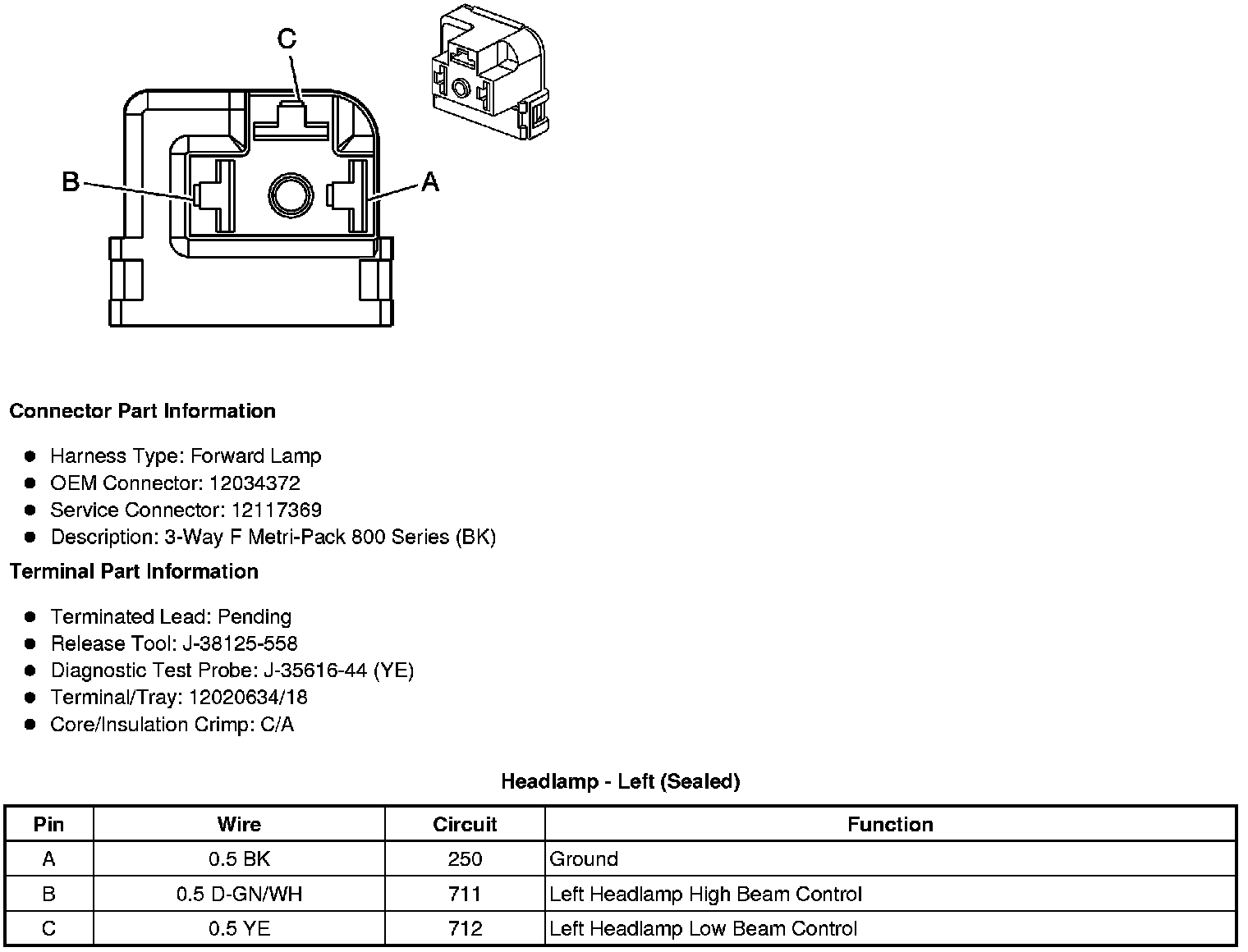

Headlamp - Left (Sealed)

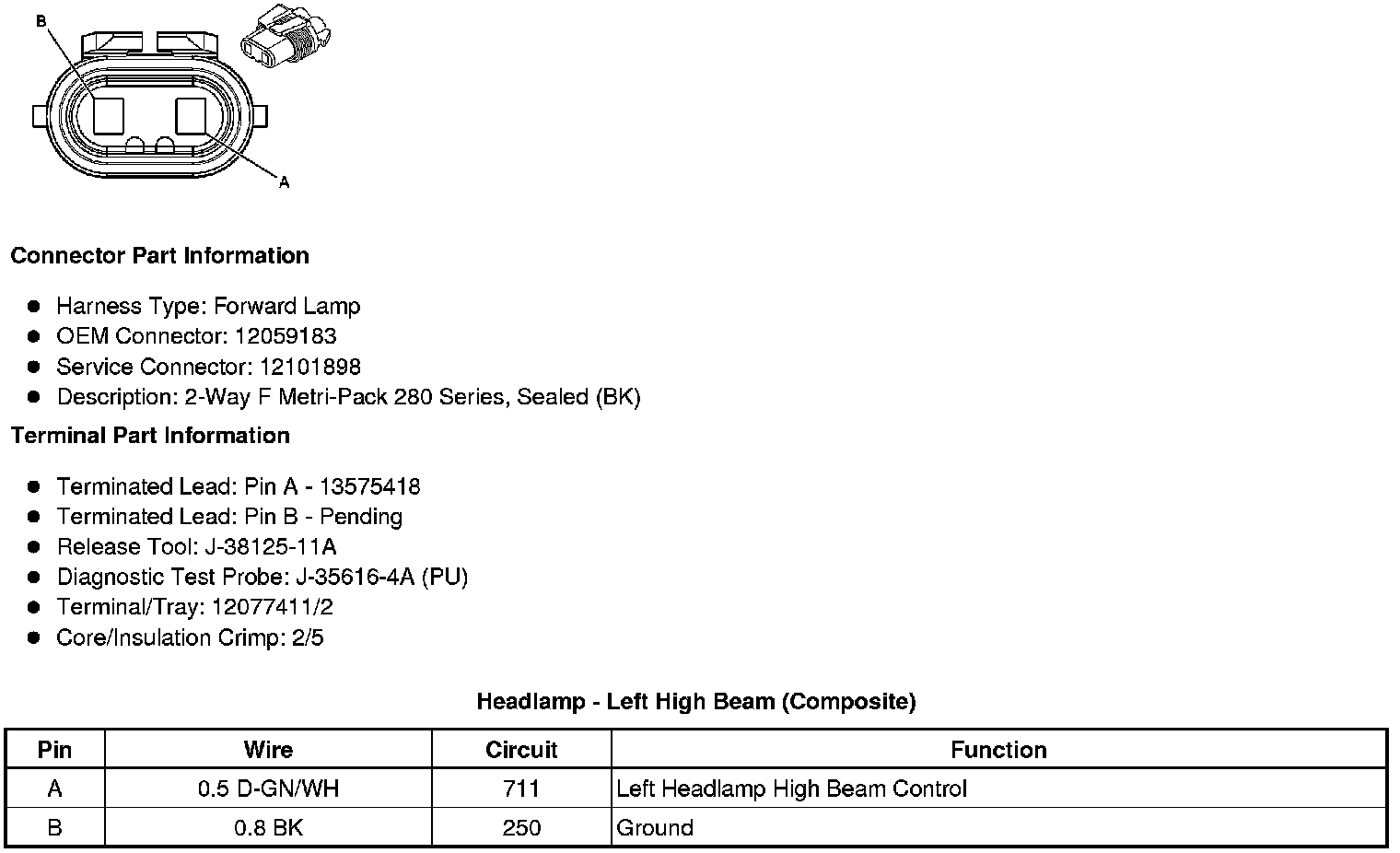

Headlamp - Left High Beam (Composite)





Headlamp - Left Low Beam (Composite)

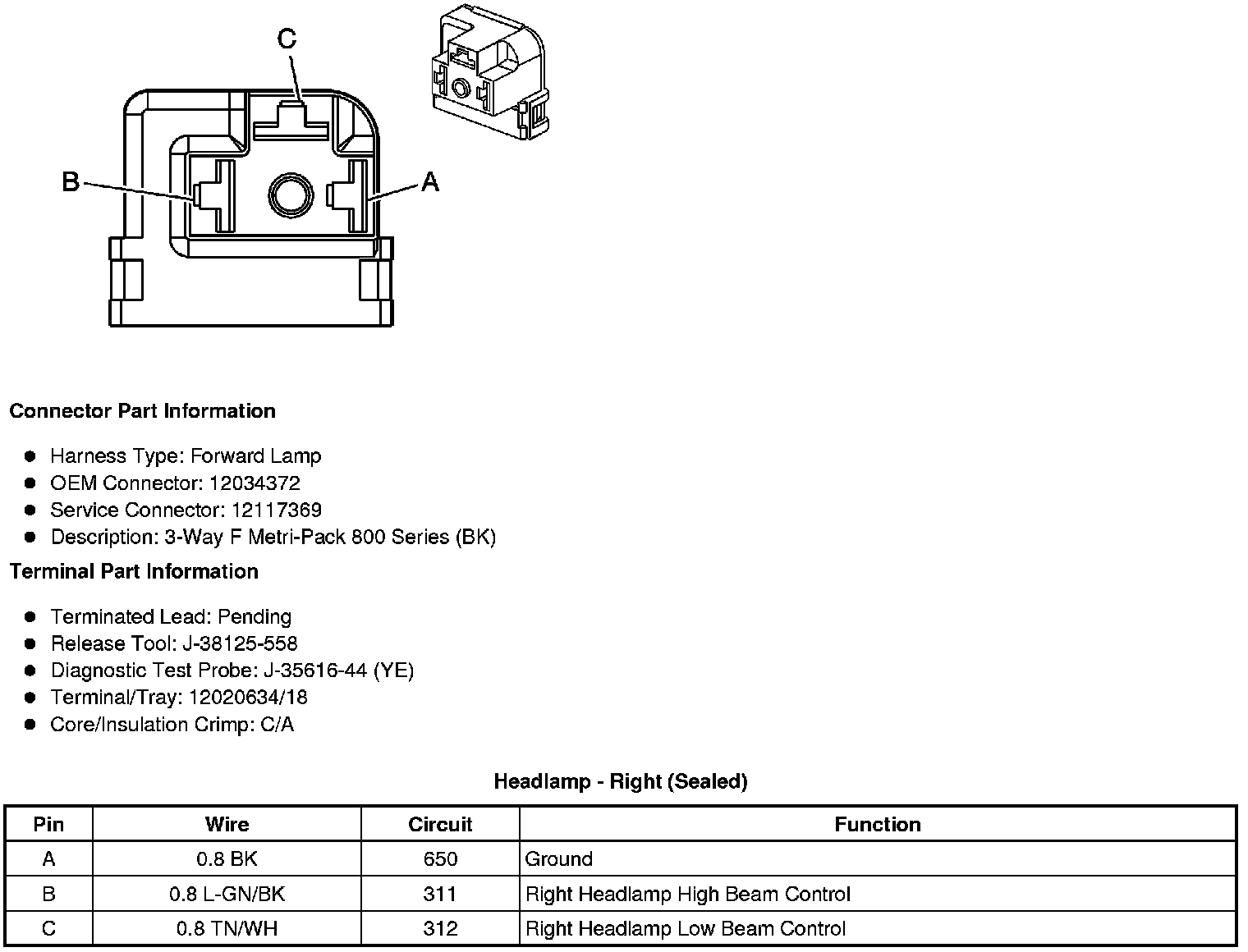

Headlamp - Right (Sealed)





Headlamp - Right High Beam (Composite)





Headlamp - Right Low Beam (Composite)
