Intake Air Heater
Component Connector End Views

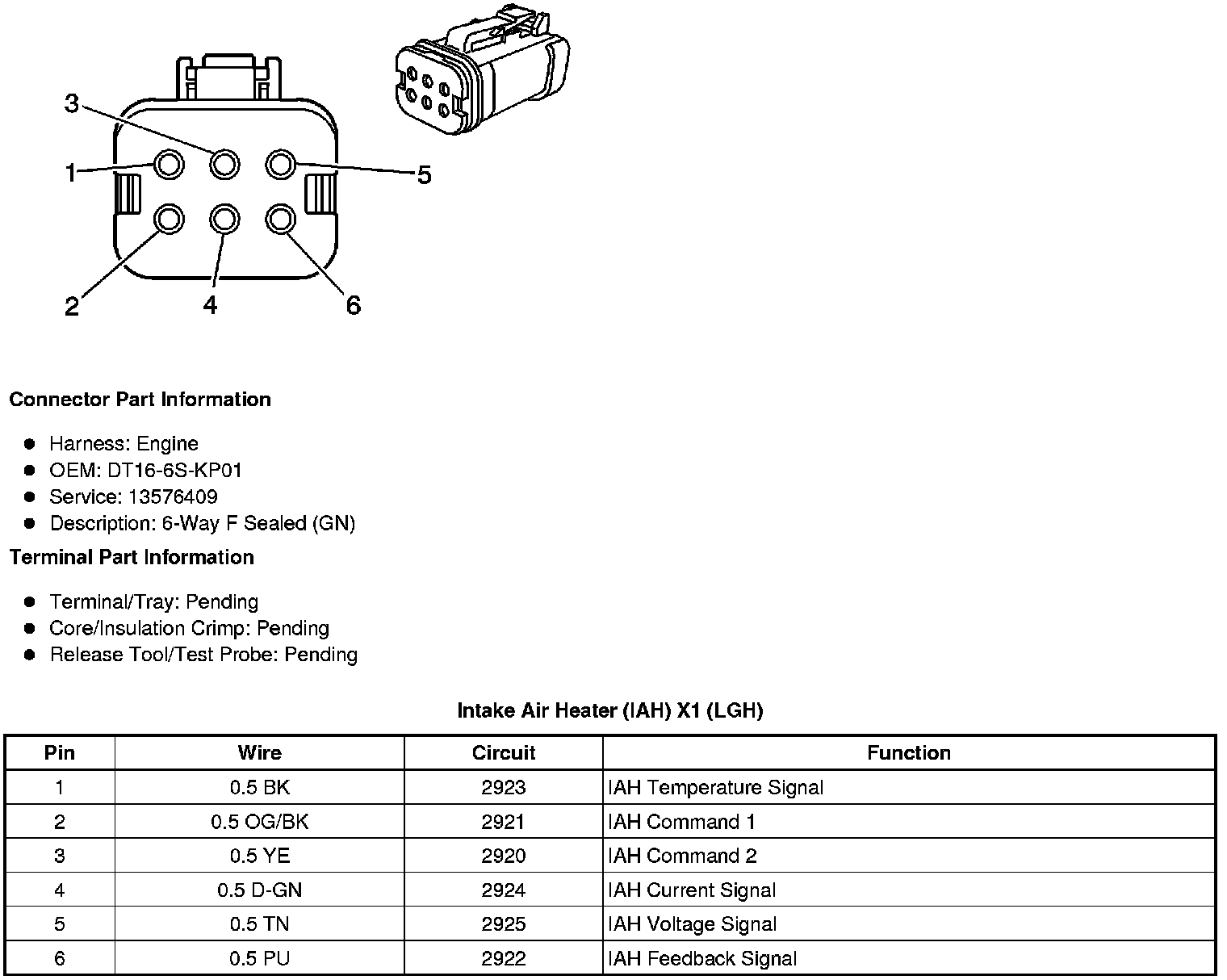

Intake Air Heater
(IAH) X1 (LGH)
Intake Air Heater
(IAH) X2 (LGH)
